Description

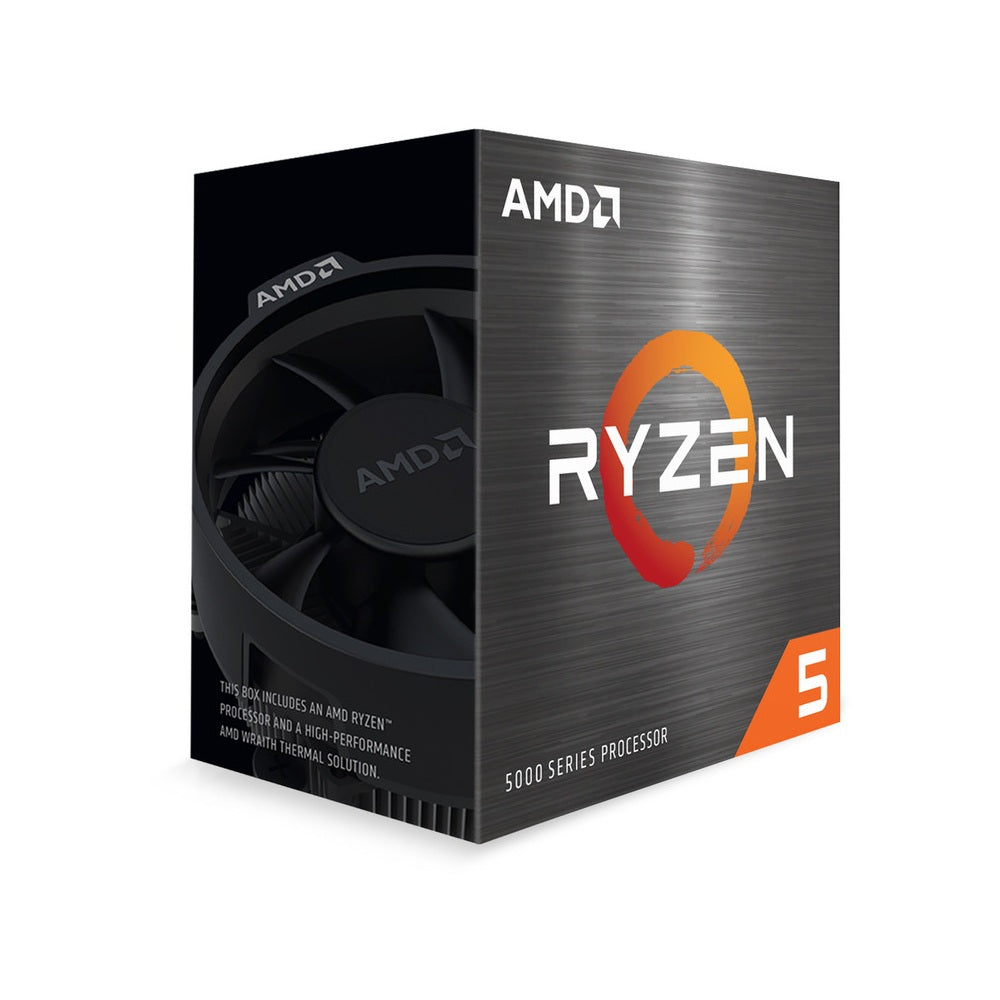

Build a compact, capable desktop system with the AMD Ryzen 5 5600GT processor, featuring integrated Radeon Graphics for a complete solution without a discrete GPU. Built on the "Zen 3" architecture, this 6-core, 12-thread CPU delivers a base clock of 3.6GHz and boost speeds up to 4.6GHz, ideal for everyday computing, light gaming and productivity tasks. Bundled with the AMD Wraith Stealth cooler and unlocked for overclocking, the Ryzen 5 5600GT offers a versatile, all-in-one solution for compact AM4 builds.
Features
- "Zen 3" core architecture for efficient, everyday performance
- 6 CPU cores and 12 threads with simultaneous multithreading
- Base clock of 3.6GHz with boost speeds up to 4.6GHz
- 16MB L3 cache and 3MB L2 cache for quick data access
- Integrated Radeon Graphics, no discrete GPU required
- Includes AMD Wraith Stealth cooler
- Unlocked for overclocking flexibility
- AM4 socket for broad motherboard compatibility
- PCIe 3.0 support with NVMe Boot, RAID0, RAID1 and RAID10
- Supports DDR4 memory up to 3200MT/s across 2 memory channels
Specifications
General
- Platform: Boxed Processor
- Market Segment: Mainstream Desktop
- Product Line: AMD Ryzen 5 5000 G-Series Desktop Processors with Radeon Graphics
- Consumer Use: Yes
- Commercial Use: No
- Regional Availability: Global, China, NA, EMEA, APJ, LATAM
- Former Codename: "Cezanne"
- Architecture: "Zen 3"
- CPU Cores: 6
- Threads: 12
- Multithreading (SMT): Yes
- Base Clock: 3.6GHz
- Max Boost Clock: Up to 4.6GHz
- L1 Cache: 384KB
- L2 Cache: 3MB
- L3 Cache: 16MB
- Default TDP: 65W
- AMD Configurable TDP (cTDP): 45-65W
- Processor Technology for CPU Cores: TSMC 7nm FinFET
- CPU Compute Die (CCD) Size: 180mm²
- Package Die Count: 1
- Unlocked for Overclocking: Yes
- CPU Socket: AM4
- Thermal Solution (PIB): AMD Wraith Stealth
- Thermal Solution (MPK): AMD Wraith Stealth
- Max Operating Temperature (Tjmax): 95°C
- Launch Date: 1/8/2024
- OS Support: Windows 11 64-Bit, Windows 10 64-Bit, RHEL x86 64-Bit, Ubuntu x86 64-Bit (OS support may vary by manufacturer)
Connectivity
- PCI Express Version: PCIe 3.0
- NVMe Support: Boot, RAID0, RAID1, RAID10
- System Memory Type: DDR4
- Memory Channels: 2
- Max Memory: 128GB
- System Memory Subtype: UDIMM
- System Memory Specification: Up to 3200MT/s
- Max Memory Speed: 2x1R - DDR4-3200; 2x2R - DDR4-3200; 4x1R - DDR4-2933; 4x2R - DDR4-2667
Graphics Capabilities
- Integrated Graphics: Yes
- Graphics Model: Radeon Graphics
- Graphics Core Count: 7
- Graphics Frequency: 1900MHz
