Description

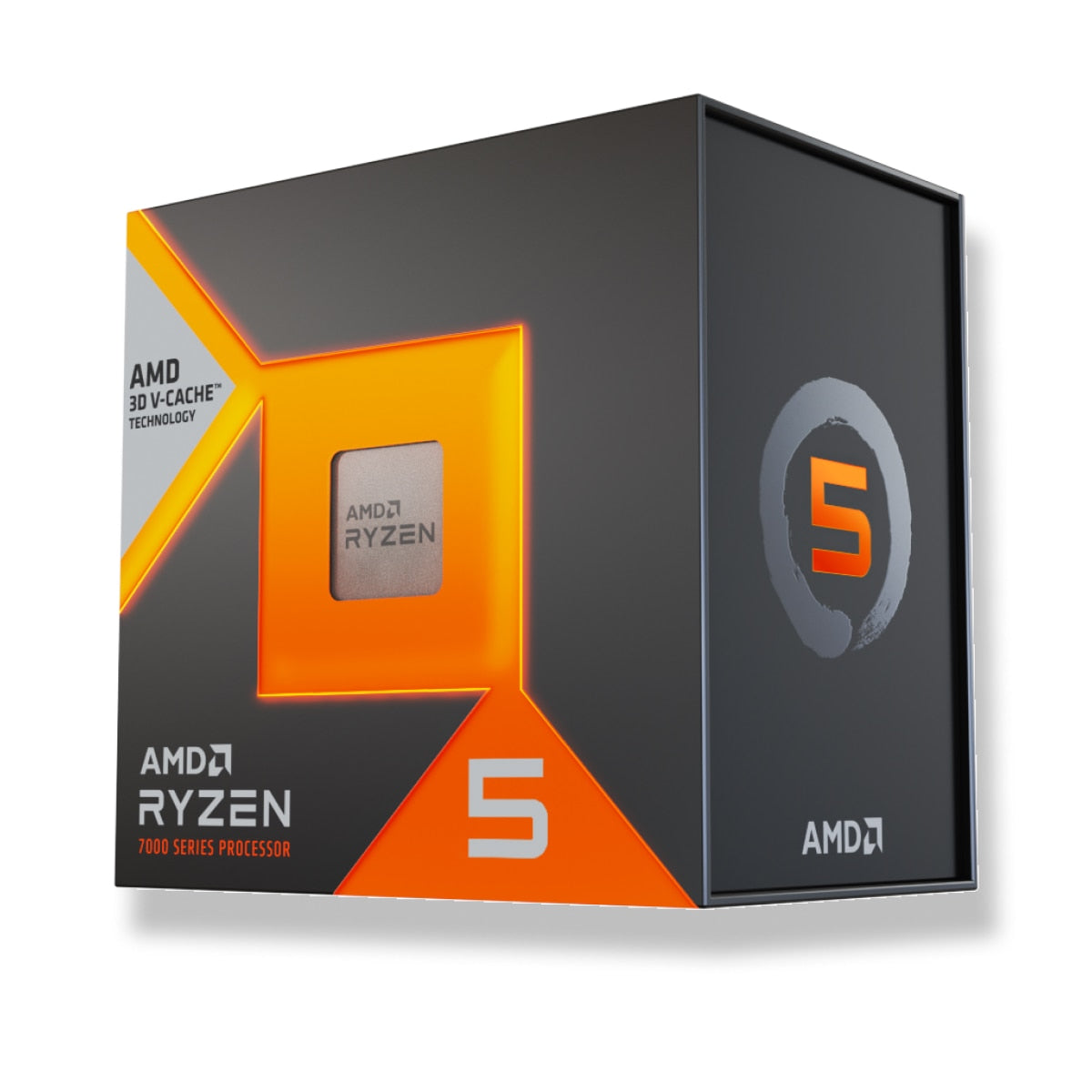

The AMD Ryzen 5 7500X3D is an enthusiast-grade desktop processor built on the Zen 4 architecture, codenamed "Raphael AM5". Featuring 6 cores and 12 threads with simultaneous multithreading, this processor delivers a base clock of 4GHz and boosts up to 4.5GHz, backed by 384KB L1 cache, 6MB L2 cache, and a generous 96MB L3 cache. Manufactured using TSMC 5nm FinFET technology for CPU cores and TSMC 6nm FinFET for the I/O die, this processor is designed for the AM5 socket and supports DDR5 memory with PCIe 5.0 connectivity. It comes with integrated AMD Radeon Graphics, making it a strong choice for high-performance desktop builds. A liquid cooler is recommended for optimal performance, and thermal solution is not included in the package.
Features
- 6 Cores and 12 Threads with Simultaneous Multithreading (SMT)
- Boost Clock up to 4.5GHz with 4GHz Base Clock
- Large 96MB L3 Cache for Enhanced Performance
- Integrated AMD Radeon Graphics
- AMD EXPO Memory Overclocking Technology Support
- Precision Boost Overdrive and Precision Boost 2 Technology
- Curve Optimizer Voltage Offsets Support
- AMD Ryzen Master Support
- USB Type-C DisplayPort Alternate Mode Support
- ECC Memory Support (Requires Motherboard Support)
- Wide Compatibility Across Multiple AM5 Chipsets
- Supported Technologies: AMD EXPO Technology, AMD Ryzen Technologies
Specifications
- Name: AMD Ryzen 5 7500X3D
- Family: Ryzen
- Series: Ryzen 7000 Series
- Form Factor: Desktops, Boxed Processor
- Market Segment: Enthusiast Desktop
- AMD PRO Technologies: No
- Regional Availability: NA, EMEA
- Former Codename: Raphael AM5
- Processor Architecture: Zen 4
- Number of CPU Cores: 6
- Multithreading (SMT): Yes
- Number of Threads: 12
- Max Boost Clock: Up to 4.5GHz
- Base Clock: 4GHz
- L1 Cache: 384 KB
- L2 Cache: 6 MB
- L3 Cache: 96 MB
- Default TDP: 65W
- Processor Technology for CPU Cores: TSMC 5nm FinFET
- Processor Technology for I/O Die: TSMC 6nm FinFET
- CPU Compute Die (CCD) Size: 71mm²
- I/O Die (IOD) Size: 122mm²
- Package Die Count: 2
- AMD EXPO Memory Overclocking Technology: Yes
- Precision Boost Overdrive: Yes
- Curve Optimizer Voltage Offsets: Yes
- AMD Ryzen Master Support: Yes
- CPU Socket: AM5
- Supporting Chipsets: A620, X670E, X670, B650E, B650, X870E, X870, B840, B850
- CPU Boost Technology: Precision Boost 2
- Instruction Set: x86-64
- Supported Extensions: AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
- Thermal Solution (PIB): Not Included
- Recommended Cooler: Liquid cooler recommended for optimal performance
- Max Operating Temperature (Tjmax): 89°C
- Launch Date: 11/12/2025
- OS Support: Windows 11 64-Bit Edition, Windows 10 64-Bit Edition, RHEL 64-Bit, Ubuntu x86 64-Bit
- Native USB 3.2 Gen 2 (10Gbps): 4
- Native USB 3.2 Gen 1 (5Gbps): 0
- Native USB 2.0 (480Mbps): 1
- PCI Express Version: PCIe 5.0
- Native PCIe Lanes (Total/Usable): 28, 24
- NVMe Support: Boot, RAID0, RAID1, RAID10
- System Memory Type: DDR5
- Memory Channels: 2
- Max Memory: 128 GB
- System Memory Subtype: UDIMM
- Max Memory Speed: 2x1R DDR5-5200, 2x2R DDR5-5200, 4x1R DDR5-3600, 4x2R DDR5-3600
- ECC Support: Yes (Requires Motherboard Support)
- Graphics Model: AMD Radeon Graphics
- Graphics Core Count: 2
- Graphics Frequency: 2200 MHz
- USB Type-C DisplayPort Alternate Mode: Yes
- Product ID Tray: 100-000001904
- Supported Technologies: AMD EXPO Technology, AMD Ryzen Technologies
