Description

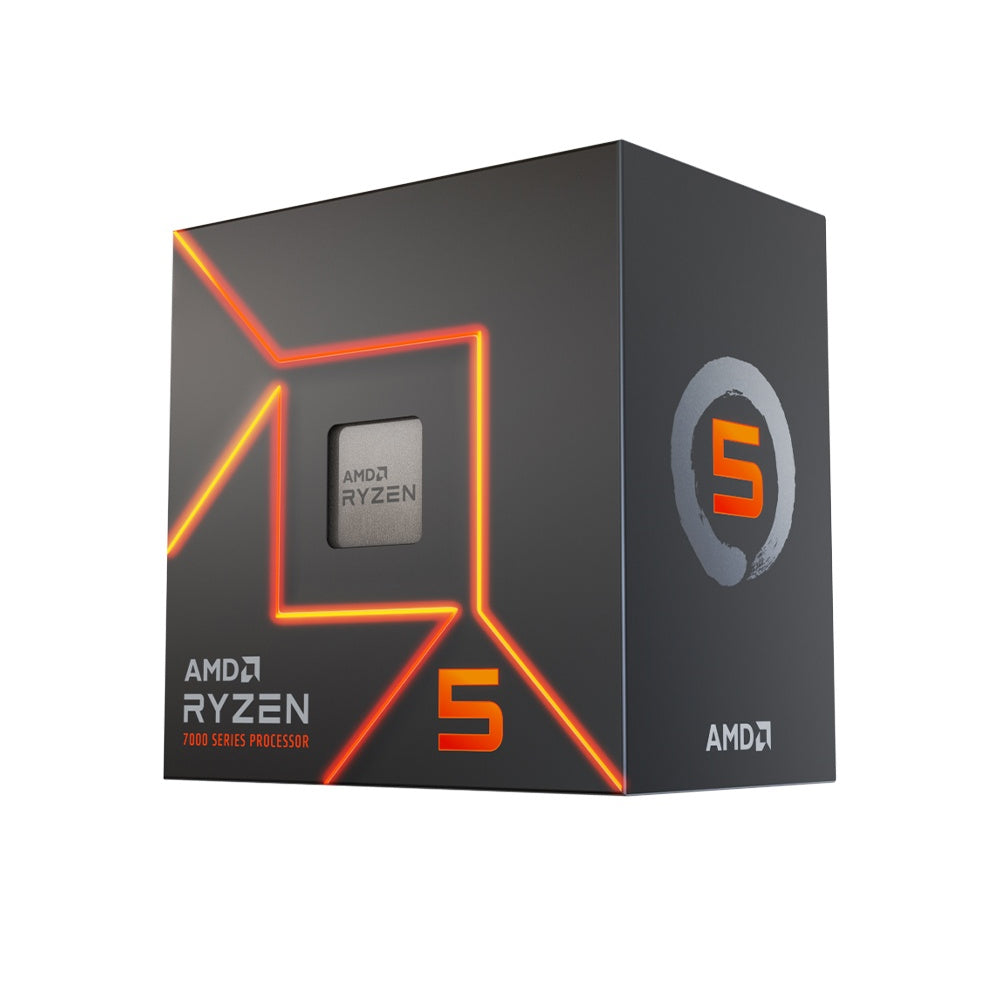

The AMD Ryzen 5 7600 is a capable 6 core, 12 thread desktop processor built on the Zen 4 architecture, offering strong gaming and everyday computing performance for AM5 platforms. With integrated AMD Radeon Graphics, it provides display output without requiring a discrete graphics card, making it a practical choice for budget-friendly and mainstream builds. The processor supports AMD EXPO memory overclocking technology, Precision Boost Overdrive, and Curve Optimizer Voltage Offsets, giving users the flexibility to fine-tune performance through AMD Ryzen Master software. With PCIe support and compatibility across X670E, X670, B650E, and B650 chipsets, it fits a wide range of AM5 motherboards, while the included AMD Wraith Stealth cooler provides reliable cooling out of the box.
Features
- 6 cores and 12 threads built on TSMC 5nm Zen 4 architecture for CPU cores
- Boost clock speeds of up to 5.1GHz with a 3.8GHz base clock
- Integrated AMD Radeon Graphics with 2 graphics cores for display output without a discrete GPU
- Unlocked for overclocking with Precision Boost Overdrive and Curve Optimizer Voltage Offsets
- Supports AMD EXPO memory overclocking technology for enhanced DDR5 performance
- Compatible with AMD Ryzen Master software for streamlined performance tuning
- AM5 socket support across X670E, X670, B650E, and B650 chipsets
- Supports DDR5 memory with speeds up to DDR5-5200/3600 depending on configuration
- USB Type-C support with native USB 3.2 Gen 2 ports and DisplayPort Alternate Mode
- NVMe support including Boot, RAID0, RAID1, and RAID10 configurations
- Includes AMD Wraith Stealth thermal solution for efficient out-of-box cooling
- Default TDP of 65W for balanced power efficiency and performance
Specifications
General Specifications
- Platform: Desktop
- Market Segment: Enthusiast Desktop
- Product Family: AMD Ryzen Processors
- Product Line: AMD Ryzen 5 Processors
- AMD PRO Technologies: No
- Consumer Use: Yes
- Regional Availability: Global
- Former Codename: Raphael AM5
- Architecture: Zen 4
- Number of CPU Cores: 6
- Multithreading (SMT): Yes
- Number of Threads: 12
- Max. Boost Clock: Up to 5.1GHz
- Base Clock: 3.8GHz
- L1 Cache: 384KB
- L2 Cache: 6MB
- L3 Cache: 32MB
- Default TDP: 65W
- Processor Technology for CPU Cores: TSMC 5nm FinFET
- Processor Technology for I/O Die: TSMC 6nm FinFET
- CPU Compute Die (CCD) Size: 71mm2
- I/O Die (IOD) Size: 122mm2
- Package Die Count: 2
- Unlocked for Overclocking: Yes
- AMD EXPO Memory Overclocking Technology: Yes
- Precision Boost Overdrive: Yes
- Curve Optimizer Voltage Offsets: Yes
- AMD Ryzen Master Support: Yes
- CPU Socket: AM5
- Supporting Chipsets: X670E, X670, B650E, B650
- CPU Boost Technology: Precision Boost 2
- Instruction Set: x86-64
- Supported Extensions: AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
- Thermal Solution (PIB): AMD Wraith Stealth
- Max. Operating Temperature (Tjmax): 95C
- Launch Date: 1/14/2023
- OS Support: Windows 11 64-Bit Edition, Windows 10 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit (OS support will vary by manufacturer)
Connectivity
- USB Type-C Support: Yes
- Native USB 3.2 Gen 2 (10Gbps) Ports: 4
- Native USB 3.2 Gen 1 (5Gbps) Ports: 0
- Native USB 2.0 (480Mbps) Ports: 1
- Native SATA Ports: 0
- Native PCIe Lanes (Total/Usable): 28/24
- Additional Usable PCIe Lanes from Motherboard: X670E 12x Gen4, X670 12x Gen4, B650E 8x Gen4, B650 8x Gen4
- NVMe Support: Boot, RAID0, RAID1, RAID10
- System Memory Type: DDR5
- Memory Channels: 2
- Max Memory Speed: 2x1R DDR5-5200, 2x2R DDR5-5200, 4x1R DDR5-3600, 4x2R DDR5-3600
- ECC Support: Yes (Requires motherboard support)
Graphics Capabilities
- Integrated Graphics: Yes
- Graphics Model: AMD Radeon Graphics
- Graphics Core Count: 2
- Graphics Frequency: 2200 MHz
- GPU Base: 400 MHz
- USB Type-C DisplayPort Alternate Mode: Yes
Features
- Supported Technologies: AMD EXPO Technology, AMD Ryzen Technologies
