Description

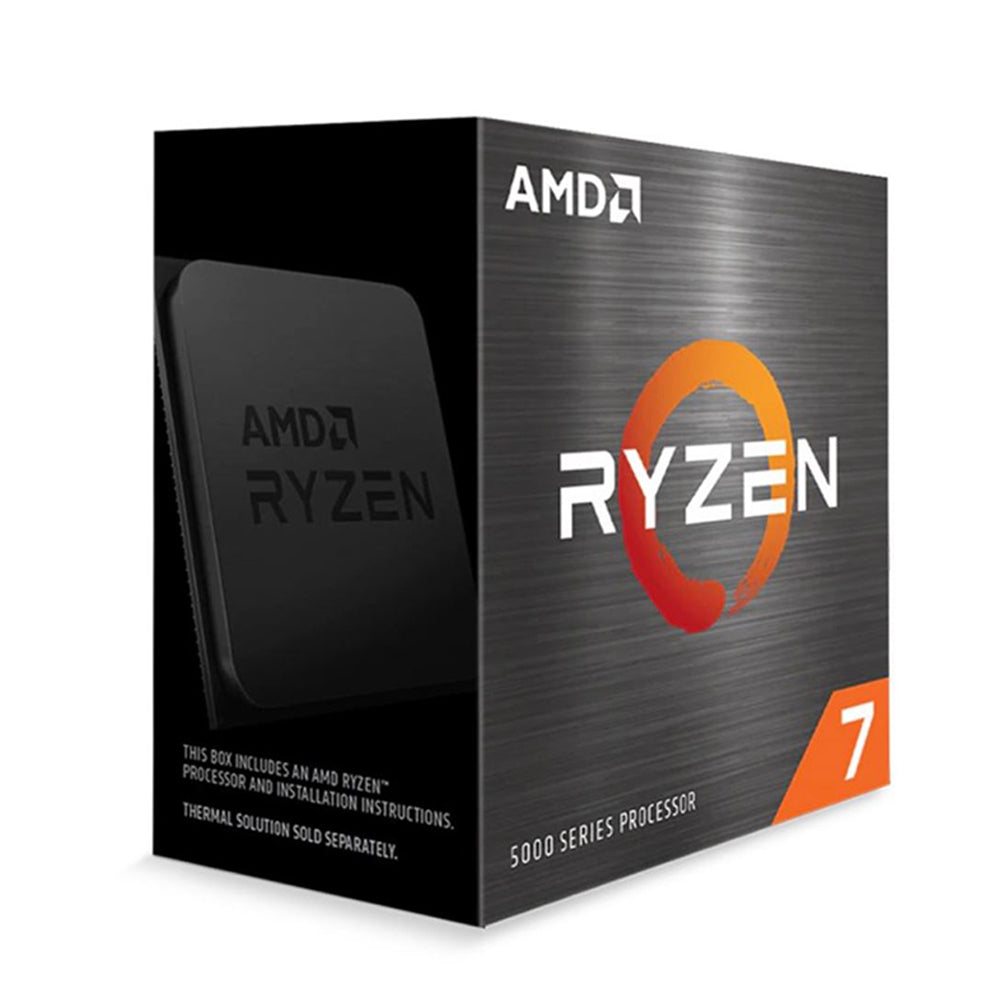

Power through gaming, content creation and everyday multitasking with the AMD Ryzen 7 5700X desktop processor. Built on the advanced "Zen 3" architecture, this 8-core, 16-thread CPU delivers strong single-thread and multi-thread performance for demanding workloads, from high-end gaming to video rendering and software compiling. With a base clock of 3.4GHz and boost speeds up to 4.6GHz, along with 32MB of L3 cache, the Ryzen 7 5700X is unlocked for overclocking and ready to be paired with a discrete graphics card to build a high-performance system. This listing is for the processor only and does not include a cooling fan.
Key Features
- "Zen 3" core architecture for enhanced processing efficiency
- 8 CPU cores and 16 threads for smooth multitasking and heavy workloads
- Base clock of 3.4GHz with Precision Boost 2 technology up to 4.6GHz
- 32MB L3 cache and 4MB L2 cache for faster data access
- Unlocked for overclocking to fine-tune performance
- AM4 socket, compatible with a wide range of motherboard chipsets
- PCIe 4.0 support for high-speed connectivity
- AMD StoreMI Technology support for optimised storage performance
- AMD Ryzen VR-Ready Premium certified
- Requires a discrete graphics card as integrated graphics are not included
Specifications
General
- Platform: Desktop
- Market Segment: Enthusiast Desktop
- Product Line: AMD Ryzen 7 Desktop Processors
- Architecture: "Zen 3"
- Former Codename: "Vermeer"
- CPU Cores: 8
- Threads: 16
- Multithreading (SMT): Yes
- Base Clock: 3.4GHz
- Max Boost Clock: Up to 4.6GHz
- L1 Cache: 512KB
- L2 Cache: 4MB
- L3 Cache: 32MB
- Default TDP: 65W
- Processor Technology for CPU Cores: TSMC 7nm FinFET
- Processor Technology for I/O Die: 12nm (Globalfoundries)
- CPU Compute Die (CCD) Size: 74mm²
- I/O Die (IOD) Size: 125mm²
- Package Die Count: 2
- Unlocked for Overclocking: Yes
- CPU Socket: AM4
- Socket Count: 1P
- Supporting Chipsets: X570, X470, X370, B550, B450, B350, A520
- CPU Boost Technology: Precision Boost 2
- Instruction Set: x86-64
- Supported Extensions: AES, AMD-V, AVX, AVX2, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
- Thermal Solution (PIB): Not included
- Max Operating Temperature (Tjmax): 90°C
- Launch Date: 4/4/2022
- OS Support: Windows 11 64-Bit, Windows 10 64-Bit, RHEL x86 64-Bit, Ubuntu x86 64-Bit (OS support may vary by manufacturer)
Connectivity
- USB Type-C Support: Yes
- Native USB 3.2 Gen 2 (10Gbps) Ports: 4
- Native USB 3.2 Gen 1 (5Gbps) Ports: 0
- Native USB 2.0 (480Mbps) Ports: 0
- Native SATA Ports: 2
- PCI Express Version: PCIe 4.0
- Native PCIe Lanes (Total/Usable): 24/20
- Additional Usable PCIe Lanes from Motherboard: AMD X570 - 16x Gen 4; AMD X470 - 2x Gen 3; AMD X470 - 8x Gen 2
- NVMe Support: Boot, RAID0, RAID1, RAID10
- System Memory Type: DDR4
- Memory Channels: 2
- Max Memory: 128GB
- System Memory Subtype: UDIMM
- System Memory Specification: Up to 3200MHz
- Max Memory Speed: 2x1R - DDR4-3200; 2x2R - DDR4-3200; 4x1R - DDR4-2933; 4x2R - DDR4-2667
- ECC Support: Yes (Requires motherboard support)
Graphics Capabilities
- Integrated Graphics: No
- Graphics Model: Discrete Graphics Card Required
Key Supported Technologies
- AMD StoreMI Technology
- AMD "Zen 3" Core Architecture
- AMD Ryzen VR-Ready Premium
