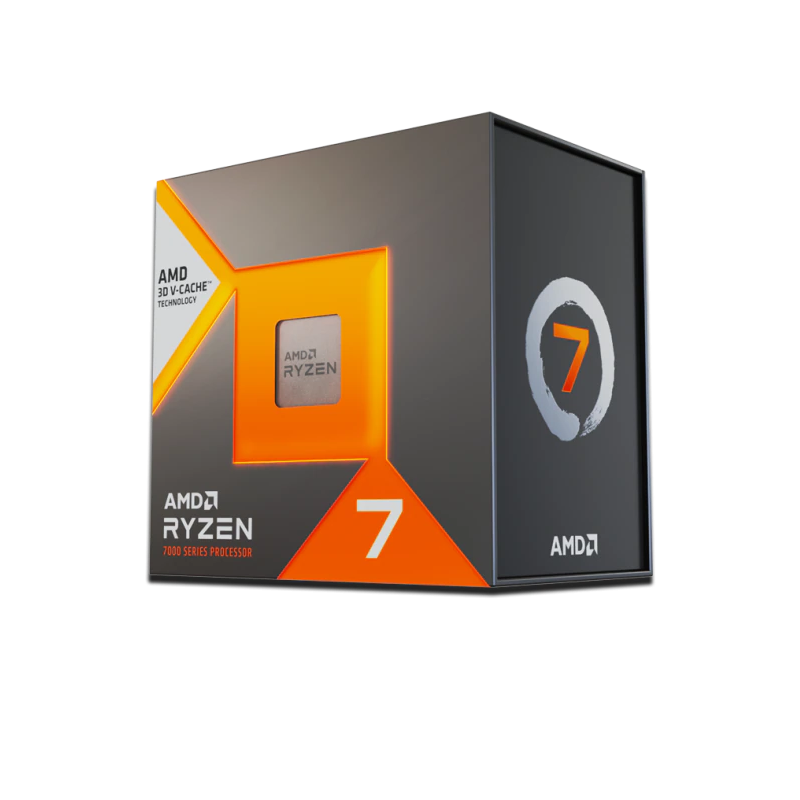

AMD Ryzen 7 7800X3D Desktop Processor - 8 Core AM5 CPU with 3D V-Cache
Description
Featuring AMD's exclusive 3D V-Cache technology, the Ryzen 7 7800X3D desktop processor is engineered to deliver a massive gaming performance advantage. Built on the Zen 4 architecture with 8 cores and 16 threads, this AM5 socket processor combines a generous 96MB L3 cache with fast boost clocks to give gamers a decisive edge in demanding titles. Support for DDR5 memory, PCIe 5.0 connectivity, and AMD EXPO overclocking technology ensures the platform stays current with the latest storage and memory standards. Compatible with X670E, X670, B650E, and B650 chipsets, this processor offers a flexible upgrade path for enthusiast AM5 builds. As no cooler is included, an appropriate aftermarket cooling solution is recommended.
Features
- 8 cores and 16 threads built on TSMC 5nm Zen 4 architecture for CPU cores
- Exclusive AMD 3D V-Cache technology with 96MB of L3 cache for a major gaming performance boost
- Boost clock speeds of up to 5.0GHz with a 4.2GHz base clock
- Integrated AMD Radeon Graphics with 2 graphics cores for display output without a discrete GPU
- Supports AMD EXPO memory overclocking technology for enhanced DDR5 performance
- Compatible with AMD Ryzen Master software for performance monitoring
- AM5 socket support across X670E, X670, B650E, and B650 chipsets
- PCIe 5.0 support with 28 total and 24 usable native PCIe lanes
- Supports DDR5 UDIMM memory up to 128GB with speeds up to DDR5-5200/3600
- USB Type-C support with native USB 3.2 Gen 2 ports and DisplayPort Alternate Mode
- NVMe support including Boot, RAID0, RAID1, and RAID10 configurations
- Precision Boost 2 technology for dynamic, workload-based frequency scaling
Specifications
General Specifications
- Platform: Desktop
- Market Segment: Enthusiast Desktop
- Product Family: AMD Ryzen Processors
- Product Line: AMD Ryzen 7 Processors
- AMD PRO Technologies: No
- Consumer Use: Yes
- Regional Availability: Global
- Former Codename: Raphael AM5
- Architecture: Zen 4
- Number of CPU Cores: 8
- Multithreading (SMT): Yes
- Number of Threads: 16
- Max. Boost Clock: Up to 5.0GHz
- Base Clock: 4.2GHz
- L1 Cache: 512KB
- L2 Cache: 8MB
- L3 Cache: 96MB
- Default TDP: 120W
- Processor Technology for CPU Cores: TSMC 5nm FinFET
- Processor Technology for I/O Die: TSMC 6nm FinFET
- CPU Compute Die (CCD) Size: 71mm2
- I/O Die (IOD) Size: 122mm2
- Package Die Count: 2
- AMD EXPO Memory Overclocking Technology: Yes
- Precision Boost Overdrive: Yes
- Curve Optimizer Voltage Offsets: Yes
- AMD Ryzen Master Support: Yes
- CPU Socket: AM5
- Supporting Chipsets: X670E, X670, B650E, B650
- CPU Boost Technology: Precision Boost 2
- Instruction Set: x86-64
- Supported Extensions: AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
- Thermal Solution (PIB): Not Included
- Max. Operating Temperature (Tjmax): 89C
- Launch Date: 4/6/2023
- OS Support: Windows 11 64-Bit Edition, Windows 10 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit (OS support will vary by manufacturer)
Connectivity
- USB Type-C Support: Yes
- Native USB 3.2 Gen 2 (10Gbps) Ports: 4
- Native USB 3.2 Gen 1 (5Gbps) Ports: 0
- Native USB 2.0 (480Mbps) Ports: 1
- Native SATA Ports: 0
- PCI Express Version: PCIe 5.0
- Native PCIe Lanes (Total/Usable): 28/24
- Additional Usable PCIe Lanes from Motherboard: X670E 12x Gen4, X670 12x Gen4, B650E 8x Gen4, B650 8x Gen4
- NVMe Support: Boot, RAID0, RAID1, RAID10
- System Memory Type: DDR5
- Memory Channels: 2
- Max. Memory: 128GB
- System Memory Subtype: UDIMM
- Max Memory Speed: 2x1R DDR5-5200, 2x2R DDR5-5200, 4x1R DDR5-3600, 4x2R DDR5-3600
- ECC Support: Yes (Requires motherboard support)
Graphics Capabilities
- Integrated Graphics: Yes
- Graphics Model: AMD Radeon Graphics
- Graphics Core Count: 2
- Graphics Frequency: 2200 MHz
- GPU Base: 400 MHz
- USB Type-C DisplayPort Alternate Mode: Yes
Features
- Supported Technologies: AMD EXPO Technology, AMD Ryzen Technologies
