Description

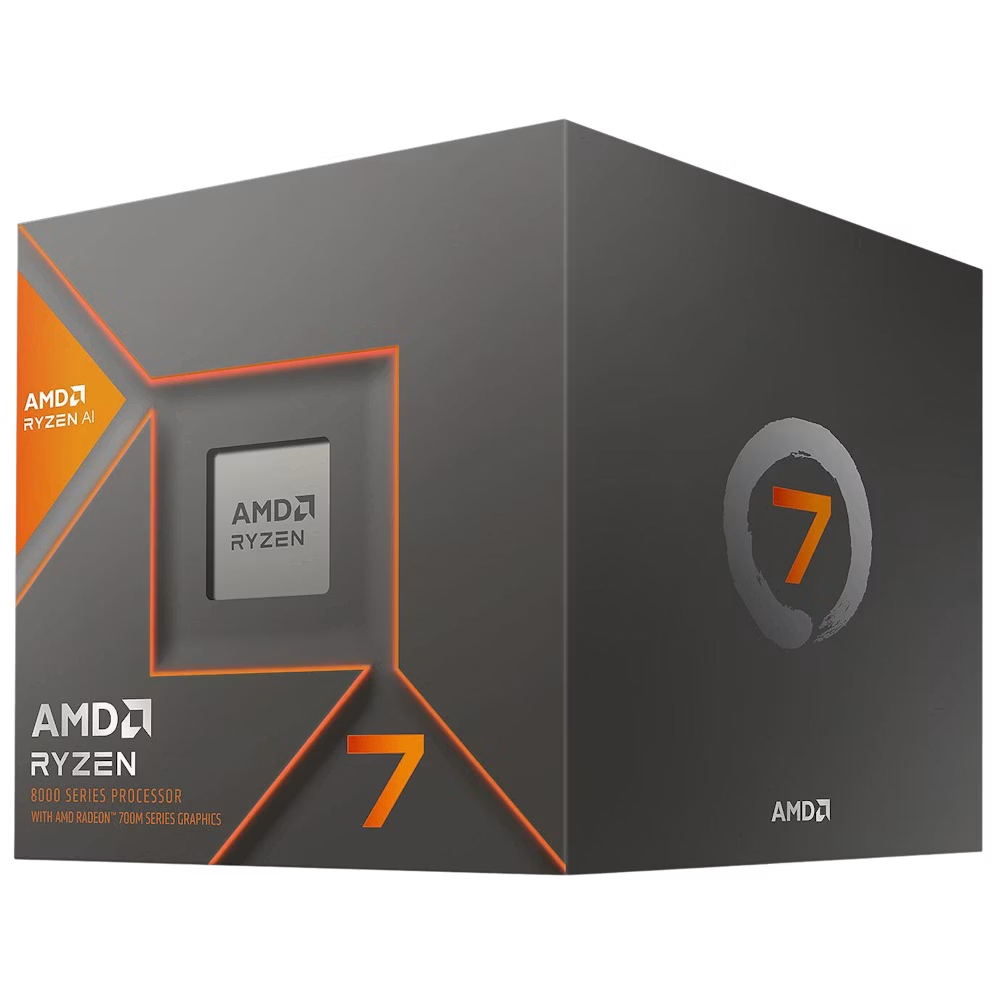

Step into high-definition gaming without needing a separate graphics card. The AMD Ryzen 7 8700G is built on "Zen 4" architecture and pairs 8 cores with 16 processing threads to handle both gaming and content creation workloads. It comes with AMD Radeon 780M graphics built directly into the chip, letting you plug in and start playing right away. This processor also introduces AMD Ryzen AI, giving desktop users access to dedicated on-chip AI processing for the first time, combining AI-optimized graphics, capable processor cores and an efficient AI engine in one package.
Features
- Integrated AMD Radeon 780M graphics eliminates the need for a separate graphics card
- 8 cores and 16 processing threads built on "Zen 4" architecture for gaming and content creation
- Dedicated AMD Ryzen AI engine delivers on-chip AI processing performance
- Unlocked for overclocking to personalize performance
- Precision Boost 2 automatically raises processor frequency for extra performance
- AMD EXPO technology unlocks improved memory performance for faster gaming
- Built on the Future Ready AM5 socket platform
- Cooler included in the box
Specifications
General
- Name: AMD Ryzen 7 8700G
- Family: Ryzen
- Series: Ryzen 8000 Series
- Form Factor: Desktops
- Former Codename: Phoenix
- Processor Architecture: Zen 4
- CPU Cores: 8
- Multithreading (SMT): Yes
- Threads: 16
- Base Clock: 4.2 GHz
- Max Boost Clock: Up to 5.1 GHz
- L2 Cache: 8 MB
- L3 Cache: 16 MB
- Total Cache: 24 MB
- Default TDP: 65W
- AMD Configurable TDP (cTDP): 45-65W
- Processor Technology for CPU Cores: TSMC 4nm FinFET
- CPU Compute Die (CCD) Size: 178mm²
- Package Die Count: 1
- Unlocked for Overclocking: Yes
- AMD EXPO Memory Overclocking Technology: Yes
- Precision Boost Overdrive: Yes
- Curve Optimizer Voltage Offsets: Yes
- AMD Ryzen Master Support: Yes
- CPU Socket: AM5
- Supporting Chipsets: A620, X670E, X670, B650E, B650, X870E, X870, B840, B850
- CPU Boost Technology: Precision Boost 2
- Instruction Set: x86-64
- Supported Extensions: AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
- Max Operating Temperature (Tjmax): 95°C
- Launch Date: Q1 2024
- OS Support: Windows 11 64-Bit, Windows 10 64-Bit, RHEL x86 64-Bit, Ubuntu x86 64-Bit
- Cooler: Included
Connectivity
- Native USB 4 (40Gbps): 2
- Native USB 3.2 Gen 2 (10Gbps): 2
- Native USB 2.0 (480Mbps): 1
- PCI Express Version: PCIe 4.0
- Native PCIe Lanes (Total/Usable): 20 / 16
- NVMe Support: Boot, RAID0, RAID1
- System Memory Type: DDR5
- Memory Channels: 2
- Max Memory: 256 GB
- System Memory Subtype: UDIMM
- Max Memory Speed: 2x1R DDR5-5200, 2x2R DDR5-5200, 4x1R DDR5-3600, 4x2R DDR5-3600
- ECC Support: Yes (requires platform support)
Graphics Capabilities
- Graphics Model: AMD Radeon 780M
- Graphics Core Count: 12
- Graphics Frequency: 2900 MHz
- DirectX Version: 12
- DisplayPort Version: 2.1
- DisplayPort Extensions: Adaptive-Sync, HDR Metadata, UHBR10
- HDMI Version: 2.1
- HDCP Version Supported: 2.3
- USB Type-C DisplayPort Alternate Mode: Yes
- Multi-Monitor Support: Yes
- Max Displays: 4
- AMD FreeSync: Yes
- Wireless Display: Miracast
- AMD SmartAccess Memory: Available
AI Engine Capabilities
- AMD Ryzen AI: Available
- Performance: Up to 16 TOPS
