Description

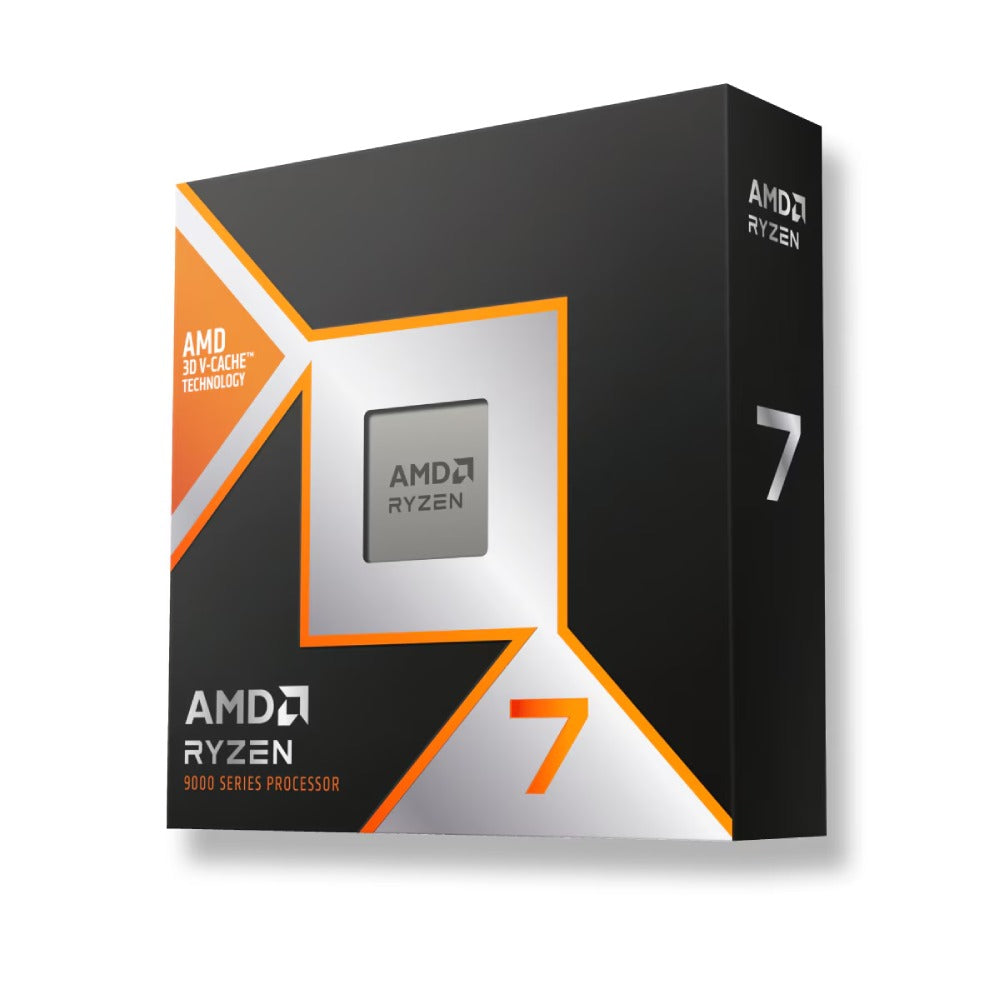

Recognized as one of the world's most advanced gaming desktop processors, the AMD Ryzen 7 9800X3D combines the Zen 5 architecture with exclusive AMD 3D V-Cache technology to push gaming performance to new heights. With 8 cores, 16 threads, and 96MB of L3 cache offering the largest on-chip memory in its class, this AM5 socket processor is built for gamers who demand smooth, high frame rates in the most graphically intensive titles. Support for AMD EXPO memory overclocking, the fastest DDR5 memory speeds, and PCIe 5.0 bandwidth ensures this processor delivers incredible performance today while remaining ready for tomorrow's most demanding games. Complete tuning control is available through AMD Ryzen Master software, and a liquid cooling solution is recommended since no cooler is included.
Features
- 8 cores and 16 threads built on TSMC 4nm Zen 5 architecture for CPU cores
- Exclusive AMD 3D V-Cache technology with 96MB of L3 cache for the largest on-chip memory in its class
- Boost clock speeds of up to 5.2GHz with a 4.7GHz base clock
- Unlocked for overclocking with Precision Boost Overdrive and Curve Optimizer Voltage Offsets
- Supports AMD EXPO memory overclocking technology for increased frequencies and smoother frame rates
- Compatible with AMD Ryzen Master software for streamlined performance control
- AM5 socket support across A620, X670E, X670, B650E, B650, X870E, X870, B840, and B850 chipsets
- PCIe 5.0 support with 28 total and 24 usable native PCIe lanes
- Supports DDR5 UDIMM memory up to 192GB with speeds up to DDR5-5600/3600
- USB Type-C support with DisplayPort Alternate Mode
- NVMe support including Boot, RAID0, RAID1, RAID5, and RAID10 configurations
- Precision Boost 2 technology for dynamic, workload-based frequency scaling
Specifications
General Specifications
- Name: AMD Ryzen 7 9800X3D
- Family: Ryzen
- Series: Ryzen 9000 Series
- Form Factor: Desktops, Boxed Processor
- Market Segment: Enthusiast Desktop
- AMD PRO Technologies: No
- Consumer Use: Yes
- Regional Availability: Global
- Former Codename: Granite Ridge AM5
- Architecture: Zen 5
- Number of CPU Cores: 8
- Multithreading (SMT): Yes
- Number of Threads: 16
- Max. Boost Clock: Up to 5.2 GHz
- Base Clock: 4.7 GHz
- L1 Cache: 640 KB
- L2 Cache: 8 MB
- L3 Cache: 96 MB
- Default TDP: 120W
- Processor Technology for CPU Cores: TSMC 4nm FinFET
- Processor Technology for I/O Die: TSMC 6nm FinFET
- Package Die Count: 2
- Unlocked for Overclocking: Yes
- AMD EXPO Memory Overclocking Technology: Yes
- Precision Boost Overdrive: Yes
- Curve Optimizer Voltage Offsets: Yes
- AMD Ryzen Master Support: Yes
- CPU Socket: AM5
- Supporting Chipsets: A620, X670E, X670, B650E, B650, X870E, X870, B840, B850
- CPU Boost Technology: Precision Boost 2
- Instruction Set: x86-64
- Supported Extensions: AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
- Thermal Solution (PIB): Not Included
- Recommended Cooler: Liquid cooler recommended for optimal performance
- Max. Operating Temperature (Tjmax): 95C
- OS Support: Windows 11 64-Bit Edition, Windows 10 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit
Connectivity
- Native USB 3.2 Gen 2 (10Gbps) Ports: 4
- Native USB 2.0 (480Mbps) Ports: 1
- PCI Express Version: PCIe 5.0
- Native PCIe Lanes (Total/Usable): 28, 24
- NVMe Support: Boot, RAID0, RAID1, RAID5, RAID10
- System Memory Type: DDR5
- Memory Channels: 2
- Max. Memory: 192 GB
- System Memory Subtype: UDIMM
- Max Memory Speed: 2x1R DDR5-5600, 2x2R DDR5-5600, 4x1R DDR5-3600, 4x2R DDR5-3600
- ECC Support: Yes (Requires motherboard support)
Graphics Capabilities
- Graphics Model: AMD Radeon Graphics
- Graphics Core Count: 2
- Graphics Frequency: 2200 MHz
- USB Type-C DisplayPort Alternate Mode: Yes
Features
- Supported Technologies: AMD EXPO Technology, AMD Ryzen Technologies
