Description

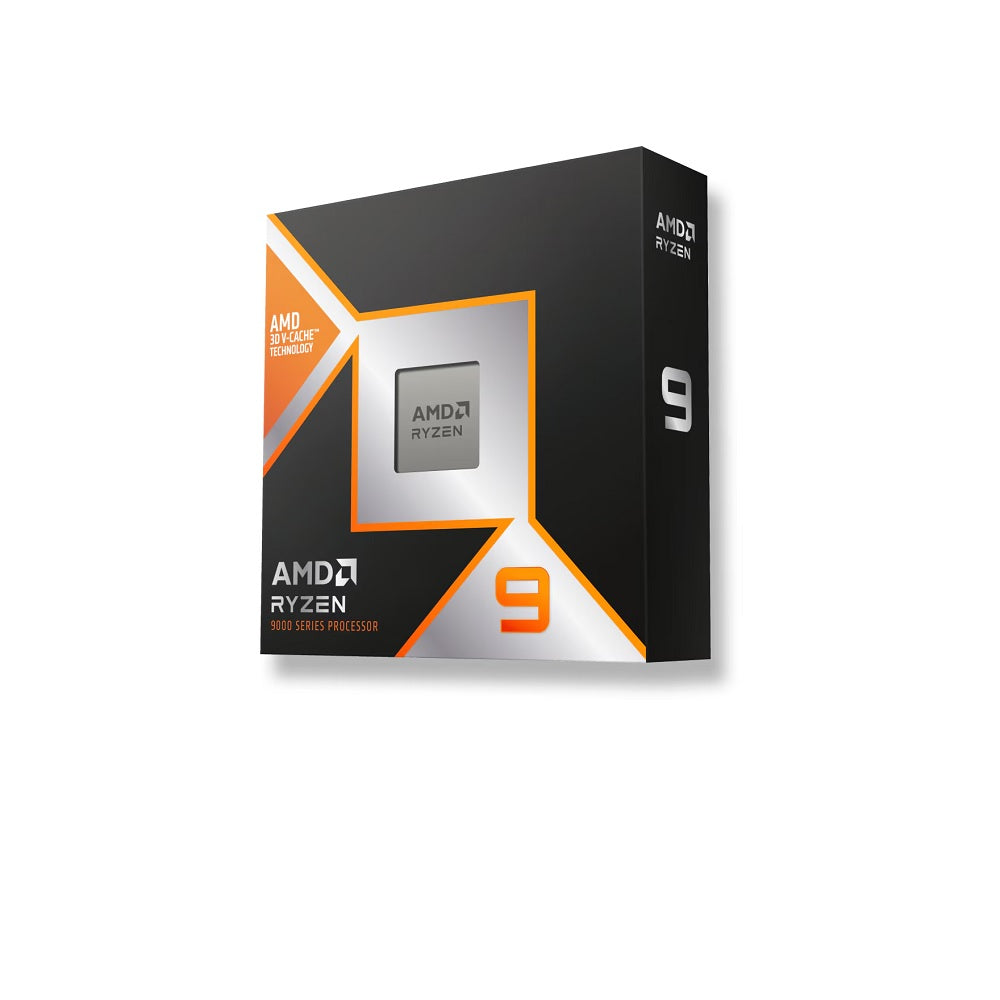

The AMD Ryzen 9 9900X3D is an enthusiast-grade desktop processor built on the Zen 5 architecture, codenamed "Granite Ridge AM5". Featuring 12 cores and 24 threads with simultaneous multithreading, this processor delivers a base clock of 4.4GHz and boosts up to 5.5GHz, backed by 960KB L1 cache, 12MB L2 cache, and a substantial 128MB L3 cache. Manufactured using TSMC 4nm FinFET technology for CPU cores and TSMC 6nm FinFET for the I/O die, this processor is designed for the AM5 socket and supports DDR5 memory with PCIe 5.0 connectivity. It is unlocked for overclocking and includes integrated AMD Radeon Graphics, making it a strong choice for high-performance desktop builds. A liquid cooler is recommended for optimal performance, and thermal solution is not included in the package.
Features
- 12 Cores and 24 Threads with Simultaneous Multithreading (SMT)
- Boost Clock up to 5.5GHz with 4.4GHz Base Clock
- Massive 128MB L3 Cache for Enhanced Performance
- Unlocked for Overclocking
- AMD EXPO Memory Overclocking Technology Support
- Precision Boost Overdrive and Precision Boost 2 Technology
- Curve Optimizer Voltage Offsets Support
- AMD Ryzen Master Support
- Integrated AMD Radeon Graphics
- USB Type-C DisplayPort Alternate Mode Support
- ECC Memory Support (Requires Motherboard Support)
- Wide Compatibility Across Multiple AM5 Chipsets
- Supported Technologies: AMD EXPO Technology, AMD Ryzen Technologies
Specifications
- Name: AMD Ryzen 9 9900X3D
- Family: Ryzen
- Series: Ryzen 9000 Series
- Form Factor: Desktops, Boxed Processor
- Market Segment: Enthusiast Desktop
- AMD PRO Technologies: No
- Regional Availability: Global
- Former Codename: Granite Ridge AM5
- Architecture: Zen 5
- Number of CPU Cores: 12
- Multithreading (SMT): Yes
- Number of Threads: 24
- Max Boost Clock: Up to 5.5GHz
- Base Clock: 4.4GHz
- L1 Cache: 960 KB
- L2 Cache: 12 MB
- L3 Cache: 128 MB
- Default TDP: 120W
- Processor Technology for CPU Cores: TSMC 4nm FinFET
- Processor Technology for I/O Die: TSMC 6nm FinFET
- Package Die Count: 3
- Unlocked for Overclocking: Yes
- AMD EXPO Memory Overclocking Technology: Yes
- Precision Boost Overdrive: Yes
- Curve Optimizer Voltage Offsets: Yes
- AMD Ryzen Master Support: Yes
- CPU Socket: AM5
- Supporting Chipsets: A620, X670E, X670, B650E, B650, X870E, X870, B840, B850
- CPU Boost Technology: Precision Boost 2
- Instruction Set: x86-64
- Supported Extensions: AES, AMD-V, AVX512, AVX2, AVX, FMA3, MMX-plus, SHA, SSE2, SSE4.2, SSE4A, SSE4.1, SSE3, SSSE3, SSE, x86-64
- Thermal Solution (PIB): Not Included
- Recommended Cooler: Liquid cooler recommended for optimal performance
- Max Operating Temperature (Tjmax): 95°C
- OS Support: Windows 11 64-Bit Edition, Windows 10 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit
- Native USB 4 (40Gbps): 4
- Native USB 3.2 Gen 1 (5Gbps): 1
- PCI Express Version: PCIe 5.0
- Native PCIe Lanes (Total/Usable): 28, 24
- NVMe Support: Boot, RAID0, RAID1, RAID5, RAID10
- System Memory Type: DDR5
- Memory Channels: 2
- Max Memory: 192 GB
- System Memory Subtype: UDIMM
- Max Memory Speed: 2x1R DDR5-5600, 2x2R DDR5-5600, 4x1R DDR5-3600, 4x2R DDR5-3600
- ECC Support: Yes (Requires Motherboard Support)
- Graphics Model: AMD Radeon Graphics
- Graphics Core Count: 2
- Graphics Frequency: 2200 MHz
- USB Type-C DisplayPort Alternate Mode: Yes
- Product ID Boxed: 100-100001368WOF
- Product ID Tray: 100-000001368
- Supported Technologies: AMD EXPO Technology, AMD Ryzen Technologies
