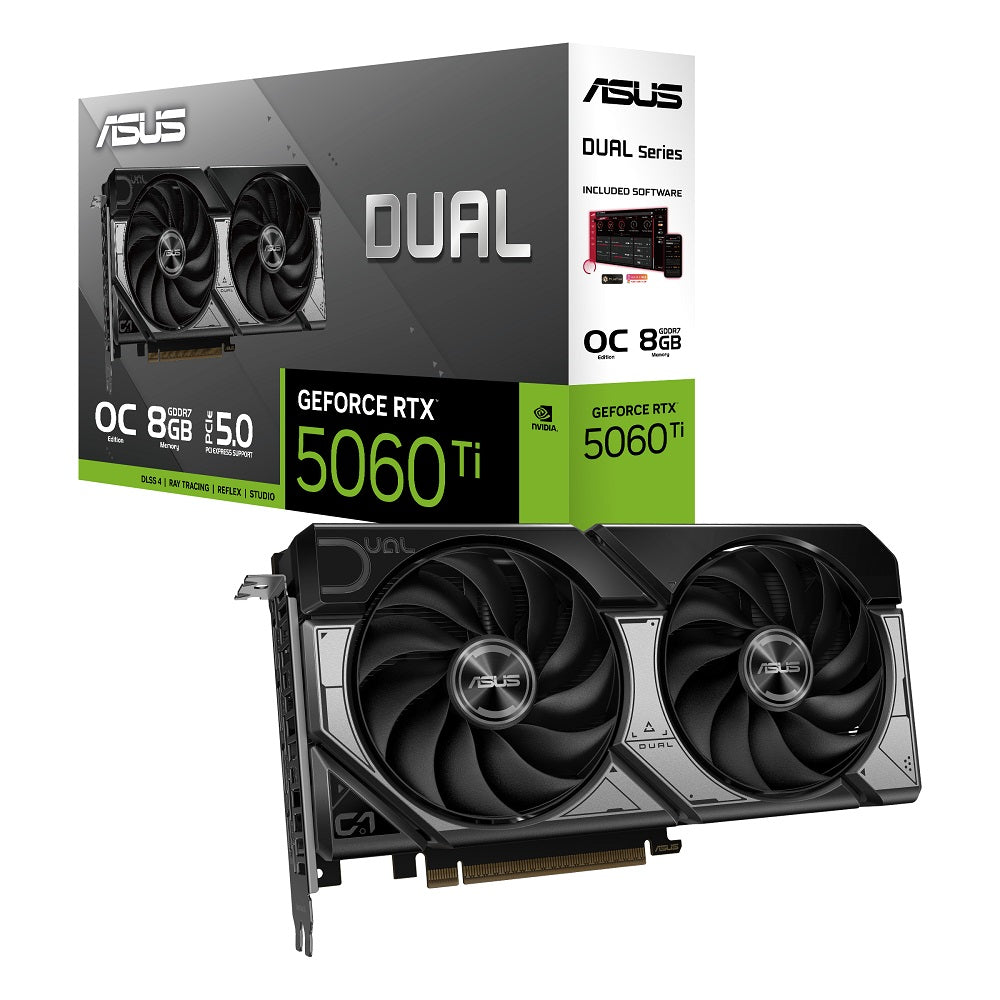

Description
The ASUS Dual GeForce RTX 5060 Ti brings flagship-level thermal design down into a compact 2.5-slot form factor, using two Axial-tech fans with longer blades to optimise airflow directly onto the heatsink. A vented backplate works alongside the fan setup to further improve cooling and support sustained performance. Built on NVIDIA's Blackwell architecture with 767 AI TOPS on tap, the card handles DLSS 4 with Multi Frame Generation, fourth-generation ray tracing for Mega Geometry, and NVIDIA ACE for digital humans and AI assistants, making it a solid pick for gamers who want strong graphics performance without a bulky card. Dual-Ball Fan Bearings extend fan lifespan compared to standard sleeve bearings, while Dual BIOS lets users switch between Performance and Quiet operation depending on the build. GPU Tweak III software rounds things out with tuning controls for clocks and fan behaviour.
Features
- SFF-Ready 2.5-slot design for compact builds
- Dual Axial-tech fans with longer blades for improved airflow
- Vented backplate for enhanced cooling performance
- Dual-Ball Fan Bearings for up to twice the lifespan of sleeve bearings
- Dual BIOS toggle between Performance and Quiet modes
- GPU Tweak III software for GPU tuning
- NVIDIA Blackwell architecture with Fifth-Gen Tensor Cores for FP4 and DLSS 4
- New Streaming Multiprocessors optimised for neural shaders
- Fourth-Gen Ray Tracing Cores built for Mega Geometry
- NVIDIA DLSS 4 with Multi Frame Generation
- NVIDIA Reflex 2 with Frame Warp for reduced latency
- Full ray tracing with neural rendering for lifelike visuals
- NVIDIA ACE support for digital humans and AI assistants
- PCI Express 5.0 bus standard
Specifications
- Graphic Engine: NVIDIA GeForce RTX 5060 Ti
- AI Performance: 767 TOPs
- Bus Standard: PCI Express 5.0
- OpenGL: OpenGL 4.6
- Video Memory: 8GB GDDR7
- Engine Clock: OC mode 2632MHz; Default mode 2602MHz (Boost Clock)
- CUDA Cores: 4608
- Memory Speed: 28 Gbps
- Memory Interface: 128-bit
- Resolution: Digital max resolution 7680 x 4320
- Interface: 1 x HDMI 2.1b, 3 x DisplayPort 2.1b, HDCP support 2.3
- Maximum Display Support: 4
- NVLink/Crossfire Support: No
- Accessories: Speedsetup manual, thank you card
- Software: ASUS GPU Tweak III, MuseTree, GeForce Game Ready Driver and Studio Driver
- Dimensions: 229 x 120 x 50mm
- Recommended PSU: 550W
- Power Connectors: 1 x 8-pin
- Slot: 2.5 slot
- SFF Ready: Compatible
