Description:

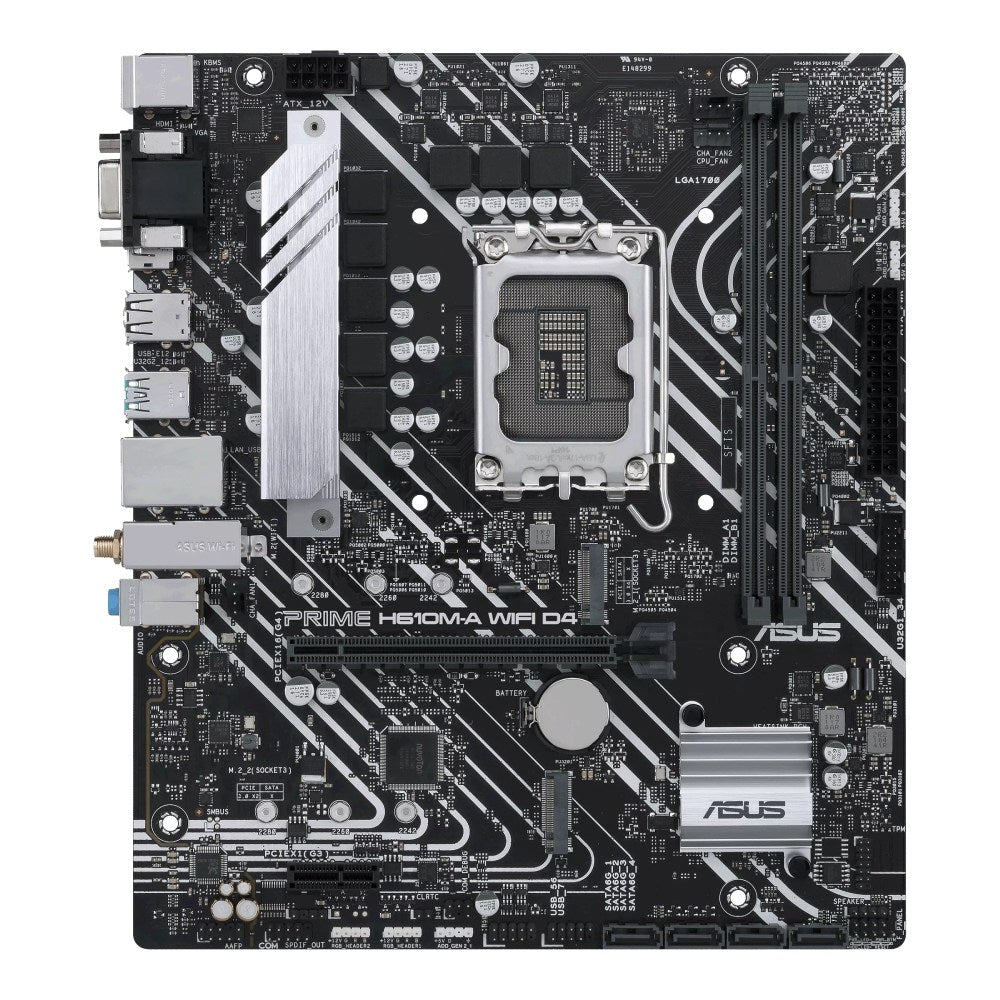

The Asus Prime H610M-A WiFi D4-CSM is a Micro-ATX motherboard built on the Intel H610 chipset, ready to support 14th, 13th, and 12th Gen Intel Core processors through an LGA1700 socket. The board pairs dual-channel DDR4 memory support up to 64GB with a PCIe 4.0 x16 slot and a fast 32Gbps M.2 slot, giving builders solid performance for everyday and productivity workloads.
Features:
- Fast 32Gbps M.2 slot alongside a second M.2 slot and four SATA 6Gb/s ports
- Built-in Intel 1Gb Ethernet, WiFi 5, and Bluetooth 5.0 for flexible connectivity
- USB 3.2 Gen 2 ports for fast, modern peripheral connections
- Aura Sync RGB support with onboard addressable Gen 2 headers for RGB LED strips
- ASUS Control Center Express (ACCE) for simplified IT endpoint management
- ASUS 5X Protection III with DIGI+ VRM, LANGuard, overvoltage protection, and stainless-steel back I/O
Specifications:
- CPU Support: LGA1700 socket, 14th/13th/12th Gen Intel Core, Pentium Gold and Celeron processors
- Chipset: Intel H610
- Memory: 2x DIMM slots, max 64GB DDR4, speeds up to 3200/3000/2933/2800/2666/2400/2133 Non-ECC, dual-channel, XMP support
- Graphics: 1x DisplayPort (up to 4K@60Hz), 1x D-Sub port, 1x HDMI port (up to 4K@60Hz)
- Expansion Slots: 1x PCIe 4.0 x16 (14th/13th/12th Gen), 1x PCIe 3.0 x1 (H610 chipset)
- Storage: 2x M.2 slots (Key M, type 2242/2260/2280, PCIe 3.0 x4/x2 mode), 4x SATA 6Gb/s ports
- Ethernet: 1x Intel 1Gb Ethernet
- Wireless: WiFi 5 (802.11a/b/g/n/ac), 2.4/5GHz bands, Bluetooth 5.0
- USB (Rear): 2x USB 3.2 Gen 2 Type-A, 4x USB 2.0 Type-A
- USB (Front): 1x USB 3.2 Gen 1 header (supports 2 additional ports), 2x USB 2.0 headers (support 3 additional ports)
- Audio: Realtek 7.1 Surround Sound HD Audio CODEC with jack detection, multi-streaming, front panel jack retasking, up to 24-bit/192kHz playback, audio shielding and premium capacitors
- Back Panel I/O: 2x USB 3.2 Gen 2 Type-A, 4x USB 2.0 Type-A, 1x DisplayPort, 1x HDMI, 1x D-Sub, 1x WiFi module, 1x Intel 1Gb Ethernet port, 3x audio jacks, 1x PS/2 keyboard port, 1x PS/2 mouse port
- Internal I/O Connectors: 4-pin CPU fan header, 2x 4-pin chassis fan headers, 24-pin main power connector, 8-pin +12V power connector, 2x M.2 slots, 4x SATA 6Gb/s ports, USB 3.2 Gen 1 and USB 2.0 headers, 3x addressable Gen 2 headers, 2x AURA RGB headers, Clear CMOS header, front panel audio header, COM port header, S/PDIF header, speaker header, SPI TPM header, system panel header
- Special Features: ASUS 5X Protection III, ASUS Q-Design, ASUS Thermal Solution, Aura Sync
- Software: Armoury Crate, Aura Creator, Aura Sync, Fan Xpert 2+, AI Suite 3, TurboV EVO, EPU, DIGI+ VRM, ASUS CPU-Z, ASUS Control Center Express, MyASUS, Norton Anti-virus (free trial), WinRAR, ASUS EZ DIY (CrashFree BIOS 3, EZ Flash 3, UEFI BIOS EZ Mode)
- BIOS: 128Mb Flash ROM, UEFI AMI BIOS
- Manageability: WOL by PME, PXE
- Operating System Support: Windows 11 64-bit, Windows 10 64-bit
- Form Factor: mATX, 9.6 x 8.3 inches (24.4cm x 21.1cm)
Package Contents:
2x SATA 6Gb/s cables
1x WiFi moving antennas
1x I/O Shield, M.2 SSD screw package
1x support DVD
1x ACC Express Activation Key Card
1x user guide
