Description

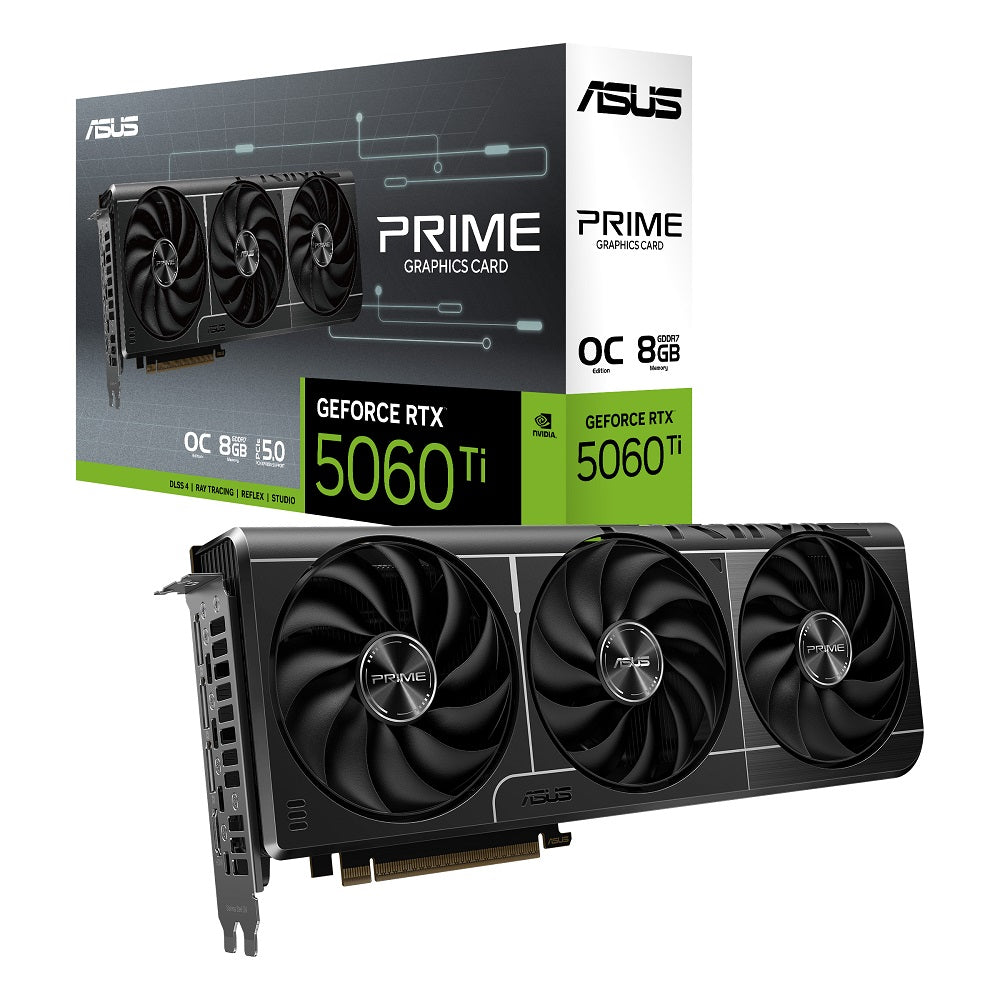

The ASUS Prime GeForce RTX 5060 Ti brings together Blackwell architecture and a compact 2.5-slot build, giving builders a card that fits smaller cases without giving up cooling performance. A triple-fan Axial-tech layout channels airflow through the heatsink and heat pipes, working alongside chassis side-panel ventilation to keep temperatures in check even under sustained load. With 772 AI TOPS on tap, the card is built to handle DLSS 4 upscaling and frame generation, fourth-generation ray tracing, and neural rendering, making it a strong fit for gamers and creators who want AI-driven performance in a small-form-factor system. Dual BIOS lets users switch between Performance and Quiet modes, while GPU Tweak III provides the tuning tools to fine-tune clocks and fan behaviour to match the build.
Features
- SFF-Ready 2.5-slot design for compact case compatibility
- Triple Axial-tech fans with longer blades for improved airflow and dispersion
- Dual-Ball Fan Bearings rated for up to twice the lifespan of sleeve bearings
- Dual BIOS toggle between Performance and Quiet modes
- GPU Tweak III software for GPU tuning
- NVIDIA Blackwell architecture with Fifth-Gen Tensor Cores for FP4 and DLSS 4
- New Streaming Multiprocessors optimised for neural shaders
- Fourth-Gen Ray Tracing Cores built for Mega Geometry
- NVIDIA DLSS 4 with Multi Frame Generation
- NVIDIA Reflex 2 with Frame Warp for reduced latency
- Full ray tracing with neural rendering for lifelike visuals
- PCI Express 5.0 bus standard
Specifications
- Graphic Engine: NVIDIA GeForce RTX 5060 Ti
- AI Performance: 772 TOPs
- Bus Standard: PCI Express 5.0
- OpenGL: OpenGL 4.6
- Video Memory: 8GB GDDR7
- Engine Clock: OC mode 2647MHz; Default mode 2617MHz (Boost Clock)
- CUDA Cores: 4608
- Memory Speed: 28 Gbps
- Memory Interface: 128-bit
- Resolution: Digital max resolution 7680 x 4320
- Interface: 1 x HDMI 2.1b, 3 x DisplayPort 2.1b, HDCP support 2.3
- Maximum Display Support: 4
- NVLink/Crossfire Support: No
- Accessories: Speedsetup manual, ASUS Velcro hook and loop, thank you card
- Software: ASUS GPU Tweak III, MuseTree, GeForce Game Ready Driver and Studio Driver
- Dimensions: 304 x 120 x 50mm
- Recommended PSU: 550W
- Power Connectors: 1 x 8-pin
- Slot: 2.5 slot
- SFF Ready: Compatible
