Description

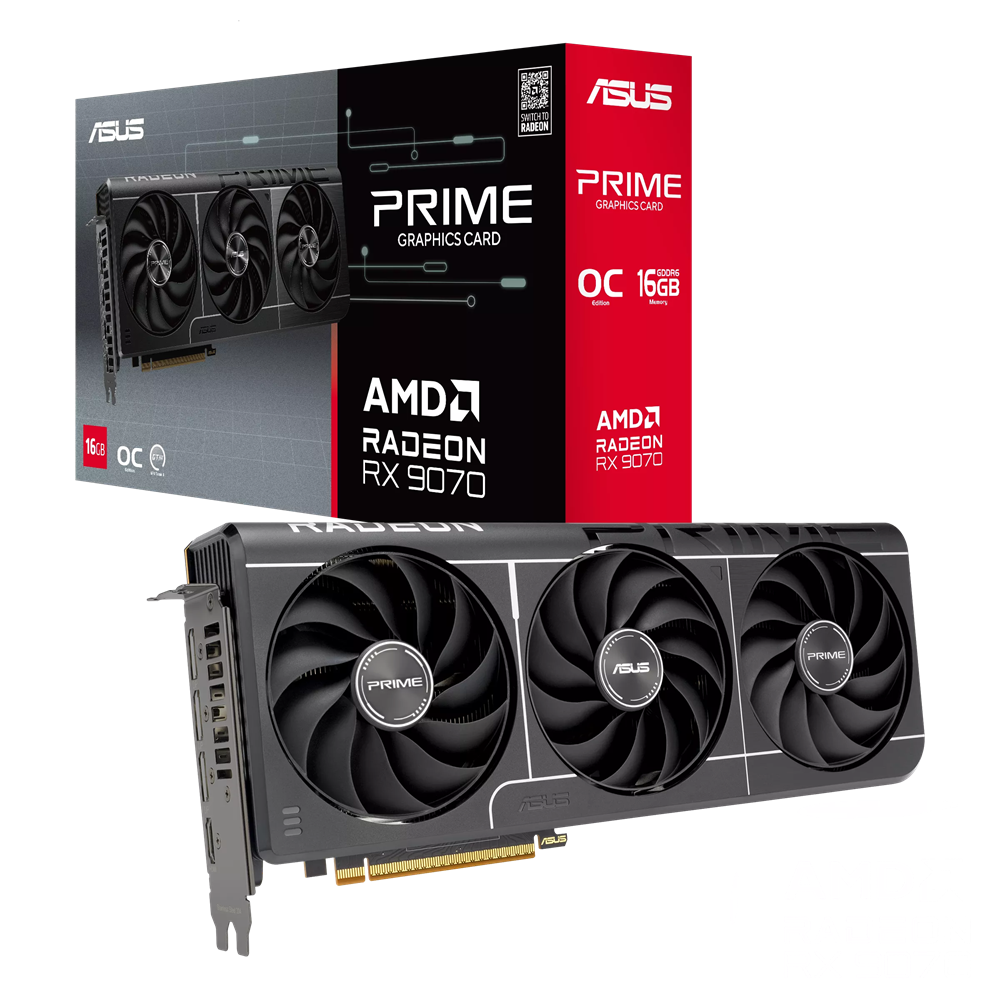

This ASUS Radeon RX 9070 graphics card brings together a compact 2.5-slot footprint with advanced thermal engineering for reliable, high-performance gaming. A premium phase-change thermal pad closes the gaps between the GPU and heatsink for superior heat transfer, while three Axial-tech fans with a narrower hub and barrier ring push more air downward for lower temperatures and quieter operation. The fans also feature dual ball bearings for extended durability and include 0dB technology, coming to a complete stop below 55°C for silent operation during lighter workloads. A large vented backplate improves heat dissipation and helps guard against thermal throttling during demanding sessions. Build quality is reinforced with ASUS GPU Guard adhesive at all four corners, a structural protective backplate, and a grade 304 stainless steel mounting bracket for added strength and corrosion resistance. Dual BIOS gives users the choice between a performance mode and a quieter mode with matched power targets, while ASUS Auto-Extreme Technology ensures a fully automated, consistent manufacturing process. The bundled GPU Tweak III software allows fine control over core clocks, memory frequency and voltage, alongside real-time monitoring. Buyers also receive one month of complimentary access to select Adobe Creative Cloud apps and Substance 3D.
Features
- Compact 2.5-slot design suited to small-form-factor builds
- Triple Axial-tech fans with narrower hub and barrier ring for improved airflow and dispersion
- 0dB technology, fans stop completely below 55°C for silent running
- Dual ball fan bearings offering up to twice the lifespan of sleeve bearing designs
- Premium phase-change GPU thermal pad for enhanced thermal conductivity between GPU and heatsink
- Large vented backplate to boost heat dissipation and reduce thermal throttling
- ASUS GPU Guard adhesive at all four corners to reduce cracking risk and secure mounting pressure
- Structurally reinforced protective backplate to prevent flex and protect internal components
- Grade 304 stainless steel mounting bracket for strength and corrosion resistance
- Dual BIOS with switchable performance and quiet modes
- Auto-Extreme Technology manufacturing process for reduced thermal strain and improved reliability
- GPU Tweak III utility for adjusting core clock, memory frequency, and voltage with real-time monitoring
- One month of complimentary Adobe Creative Cloud access, including select apps and Substance 3D
- Recommended pairing with ASUS Prime 850W or 750W Gold power supplies
Specifications
- Graphic Engine: AMD Radeon RX 9070
- Bus Standard: PCI Express 5.0
- OpenGL: 4.6
- Video Memory: 16GB GDDR6
- Engine Clock, OC mode (GPU Tweak III): up to 2610 MHz Boost Clock, up to 2140 MHz Game Clock
- Engine Clock, Default mode: up to 2590 MHz Boost Clock, up to 2120 MHz Game Clock
- Stream Processors: 3584
- Memory Speed: 20 Gbps
- Memory Interface: 256-bit
- Maximum Digital Resolution: 7680 x 4320
- Display Interface: 1x Native HDMI 2.1b, 3x Native DisplayPort 2.1a, HDCP 2.3 support
- Maximum Display Support: 4
- NVLink/Crossfire Support: No
- Software: ASUS GPU Tweak III
- Dimensions: 304 x 126 x 50 mm (12 x 5 x 2 inch)
- Recommended PSU: 650W
- Power Connectors: 2 x 8-pin
- Slot: 2.5 slot
- Accessories: 1x Thank You Card, 1x Speedsetup Manual
