Description

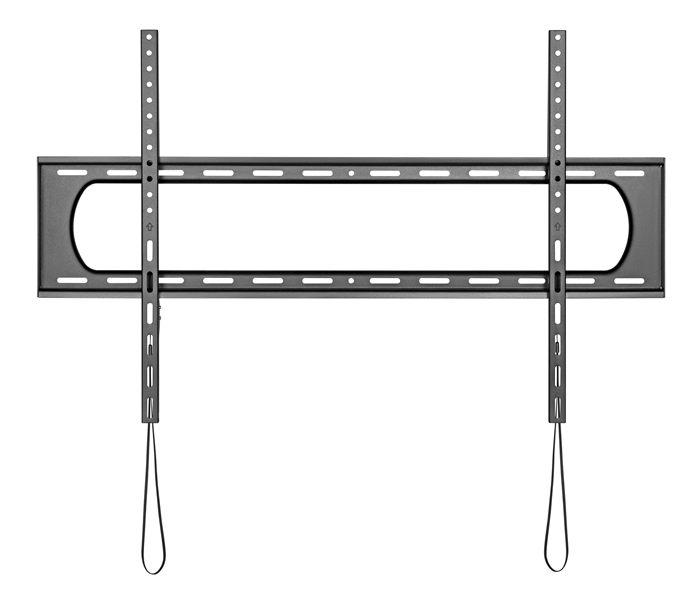

The Brateck Affordable Heavy-Duty TV Wall Mount fits screen sizes from 60 to 120 inches, including curved TVs, and supports up to 120kg. It comes in a fine texture black powder coated finish and is compatible with VESA and universal mounting hole patterns from 50x50 up to 900x600. The open architecture provides increased ventilation and easier access to wires, while automatic spring locks with quick release cords make TV removal quick and easy. The heavy-duty steel construction provides extra strength and durability. The reduced package size means relatively lower transport costs and storage fees, which is perfect for e-commerce platform sellers.
Features
- Heavy-Duty Construction: provides extra strength and durability
- Open Architecture: provides increased ventilation and easier access to wires
- Automatic Spring Locks with Quick Release Cords: allow TV removal quick and easy
- Reduced Package Size: relatively lower transport costs and storage fees, perfect for e-commerce platform sellers
Specifications
- Product Category: Fixed TV Wall Mount
- Rank: Standard
- Material: Steel
- Metal Sheet Thickness: Bracket Arm THK=2mm cold-rolled sheet, Wall Plate THK=2mm cold-rolled sheet (Bracket Arm THK=0.079" cold-rolled sheet, Wall Plate THK=0.079" cold-rolled sheet)
- Surface Finish: Powder Coating
- Colour: Fine Texture Black
- Dimensions: 35x1005x625mm (1.4"x39.6"x24.6")
- Fit Screen Size: 60" to 120"
- Fit Curved TV: Yes
- Mounting Hole Pattern: VESA and Universal
- VESA Compatible: 50x50, 75x75, 100x100, 100x150, 150x100, 100x200, 200x100, 150x150, 200x200, 200x300, 300x200, 200x400, 400x200, 300x300, 300x400, 400x300, 600x200, 400x400, 600x300, 400x600, 600x400, 700x400, 800x400, 600x600, 800x500, 800x600, 900x600
- Max. Mounting Hole: 974x602mm
- Weight Capacity: 120kg (264lbs)
- Strength Tested: 4 Times Approved
- Profile: 35mm (1.4")
- Installation: Solid Wall, Double Stud (406mm/450mm/600mm)
- Panel Type: Detachable Panel
- Wall Plate Type: Fixed Wall Plate
- Direction Indicator: Yes
- Bubble Level: Hook-on Bubble Level (Included in Components Package)
- Accessory Kit Package: Normal or Ziplock Polybag, Compartment Polybag
- Certification: UL
- Silk Screen: Can be silkscreen printed
Package Contents
- 1x Brateck Affordable Heavy-Duty TV Wall Mount
- Hook-on Bubble Level
