Description:

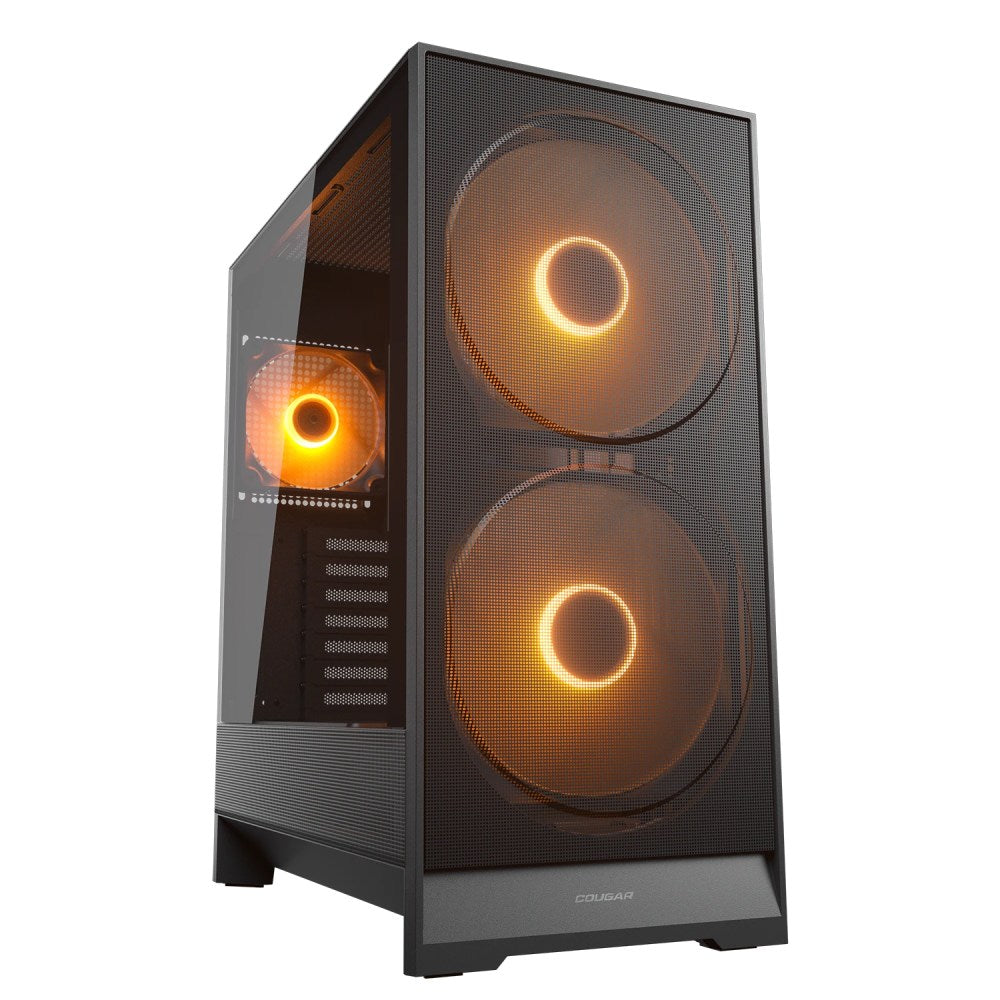

The Airface 180 is a mid tower gaming case designed to deliver strong cooling straight out of the box, pre-installed with two 180mm PWM ARGB front fans and one 120mm PWM ARGB rear fan, with room to expand to a total of 8 fans. The magnetic filter panel attaches to a slim spacer frame for a clean, minimalist look while still maintaining airflow, and features a recessed finger groove for easy removal. An offset PSU cabin placement, positioned to the right of the case rather than centred, opens up extra airflow through the side ventilation panel.
Features:
- Supports both air cooling and water cooling radiator setups
- Magnetic filter panel with finger groove for easy, tool-free removal
- Offset PSU cabin placement for improved side panel airflow
- Compatible with reverse connector motherboards including ASUS BTF, MSI Project Zero and GIGABYTE Project Stealth
- Supports Mini-ITX, Micro-ATX, ATX and CEB motherboard types
- Accommodates graphics cards up to 340mm in length
- USB 3.2 Gen 2 Type-C and USB 3.0 Type-A connectivity on the I/O panel
- Storage for 2x 3.5" HDD and 2.5" SSD drives converted from 3.5" bays
- Built-in LED controller for synchronized motherboard lighting
Specifications:
- Case form factor: Mid tower
- Motherboard type: Mini ITX / Micro ATX / ATX / CEB
- Dimensions (W x H x D): 220 x 483 x 410 mm (8.7 x 19 x 16.1 in)
- I/O panel: USB 3.2 Gen 2 Type-C x1, USB 3.0 Type-A x2, 4 pole headset audio jack x1, RGB button
- 3.5" drive bay: 2
- 2.5" drive bay: 1+1 (converted from 3.5" drive bays)
- Expansion slots: 7, horizontal slots can be converted into vertical slots
- Vertical GPU support: Yes
- Cooling fan support, front: 180mm x2 / 140mm x2 / 120mm x3
- Cooling fan support, top: 140mm x2 / 120mm x2
- Cooling fan support, PSU shroud: 120mm x2
- Cooling fan support, rear: 120mm x1
- Pre-installed fans, front: 180mm ARGB PWM fan x2
- Pre-installed fans, rear: 120mm ARGB PWM fan x1
- Pre-installed fan speed: 180mm ARGB PWM fan 300-1200 ±10% RPM; 120mm ARGB PWM fan 1200 ±10% RPM
- Pre-installed fan connector: 180mm and 120mm ARGB PWM fan connectors use 5V 3 Pin (ARGB) / 4 Pin PWM (fan)
- Maximum number of fans: 8
- Water cooling support, front: 360mm / 280mm / 240mm
- Water cooling support, top: 280mm / 240mm
- Water cooling support, rear: 120mm
- RGB Sync HUB with motherboard: Yes
- Max graphics card length: 340mm (13.4 in)
- Max CPU cooler height: 170mm (6.7 in)
- Max PSU length: 160mm (6.3 in)
