Description

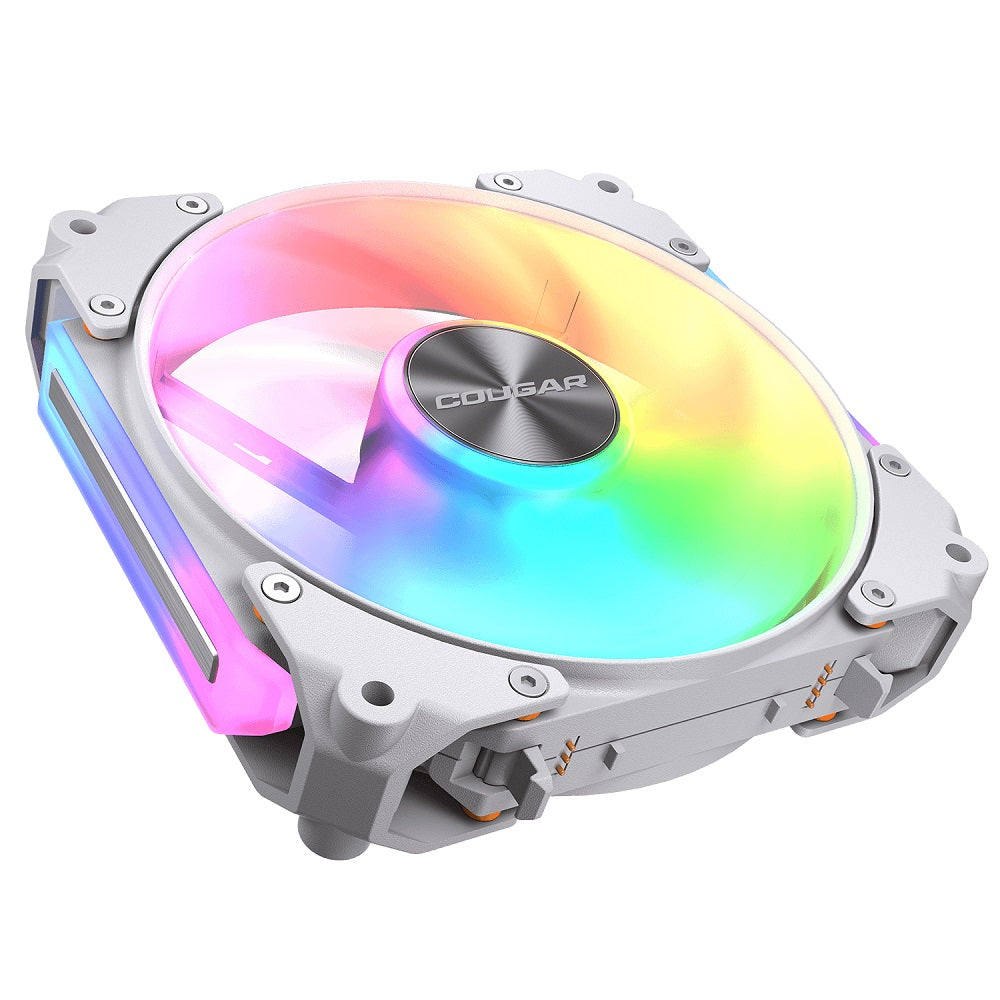

The Cougar APOLAR 120 Reverse Blade White Modular ARGB PWM Fan is designed to provide efficient cooling with a reverse blade layout that showcases the illuminated side of the fan. Its modular design helps simplify installation, while PWM speed control and Hydro Dynamic Bearing deliver stable operation. The fan also supports ARGB lighting for enhanced system aesthetics.
Features
- Reverse Blade Design for optimized airflow direction
- Modular Fan Design for simplified installation
- PWM Speed Control
- ARGB Lighting Support
- Hydro Dynamic Bearing (HDB)
- Chain Combo
- Fan Service Design
- Silent Stream Design
- Low-Noise Operation
Specifications
- Fan Model: Apolar 120 ARGB Reverse Blade (Single Pack)
- Dimensions (W × D × H): 120 × 120 × 28 mm
- Fan Speed: 600–2200 RPM ±200 RPM
- Airflow: 75.38 CFM ±10%
- Air Pressure: 2.59 mm H2O ±10%
- Maximum Acoustic Noise: 37.1 dB(A)
- Rated Voltage: 12 VDC (Fan) / 5 VDC (LED)
- Rated Current: 0.2 A (Fan) / 1.1 A (LED)
- Power Consumption: 2.4 W (Fan) / 5.6 W (LED)
- Bearing Type: HDB Hydro Dynamic Bearing
- Cable Length: 490 mm (Fan) / 470 mm (ARGB)
- Connector & Control: 4-Pin PWM / 3-Pin ARGB
- Weight: 196 g ±5 g
Package Contents
- 1 × Apolar 120 ARGB Reverse Blade Fan
- 1 × Fan Connector with Cable
- 8 × Adhesive Anti-Vibration Rubber
- 1 × Fan Screw Kit
- 1 × User Manual
