Description:

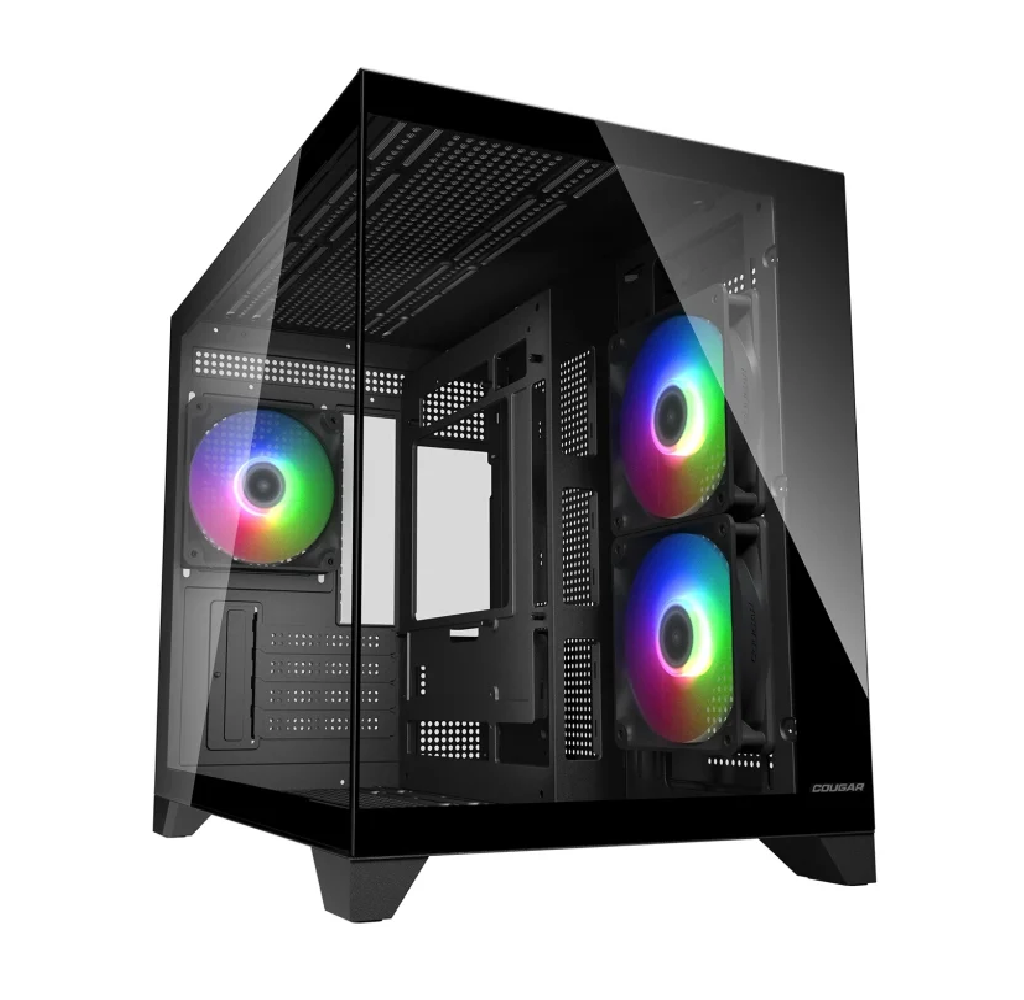

The FV150 Mini Black brings a compact form factor that lets you display your build while occupying only minimal space, showcasing components in the primary glass chamber while concealing hardware within the secondary chamber for a cleaner overall look.
Features:
- Compact dual chamber design showcasing the build while hiding hardware in a secondary chamber
- Cooling capacity of up to 3x 120mm or 2x140mm fans on top and bottom, 2x120mm or 2x140mm on the side, and 1x120mm at the rear
- Water cooling support up to 360mm on top and 240mm on the side
- Up to 400mm GPU clearance for high-performance graphics cards
- Supports reverse connector motherboards for a cleaner build
- Compatible with Mini-ITX and Micro-ATX motherboards
- USB 3.2 Gen 2 Type-C (10Gbps) and USB-A 3.0 (5Gbps) x2 ports on the I/O panel
- Storage for 1x 3.5" HDD and 1x 2.5" SSD, or 2x 2.5" SSD drives
- Magnetically attached dust covers on top and bottom for easy cleaning
Specifications:
- Case form factor: Mini tower
- Motherboard type: Micro ATX / Mini-ITX
- Dimensions (W x H x D): 285 x 263 x 436 mm (11.2 x 10.4 x 17.2 in)
- I/O panel: USB 3.2 Gen 2 Type-C (10Gbps) x1, USB 3.0 Type-A (5Gbps) x2, 4 pole headset audio jack, restart button
- 3.5" drive bay: 1+0
- 2.5" drive bay: 1+2
- Expansion slots: 4, break to screen off for GPU installations
- Vertical GPU support: No
- Cooling fan support, top: 120mm x3 / 140mm x2
- Cooling fan support, M/B side: 120mm x2 / 140mm x2
- Cooling fan support, bottom: 120mm x3 / 140mm x2
- Cooling fan support, rear: 120mm x1
- Pre-installed fans: 120mm fixed lighting/fixed speed fan (reversed) x2, 120mm fixed lighting/fixed speed fan x1
- Pre-installed fan speed: 1200 ±10% RPM
- Pre-installed fan connector: 4 Pin
- Maximum number of fans: 9
- Water cooling support, top: 360mm / 280mm / 240mm
- Water cooling support, M/B side: 240mm / 280mm
- RGB Hub sync with motherboard: No
- Max graphics card length: 400mm (15.7 in)
- Max CPU cooler height: 170mm (6.7 in)
- Max PSU length: 200mm (7.9 in)
