Description:

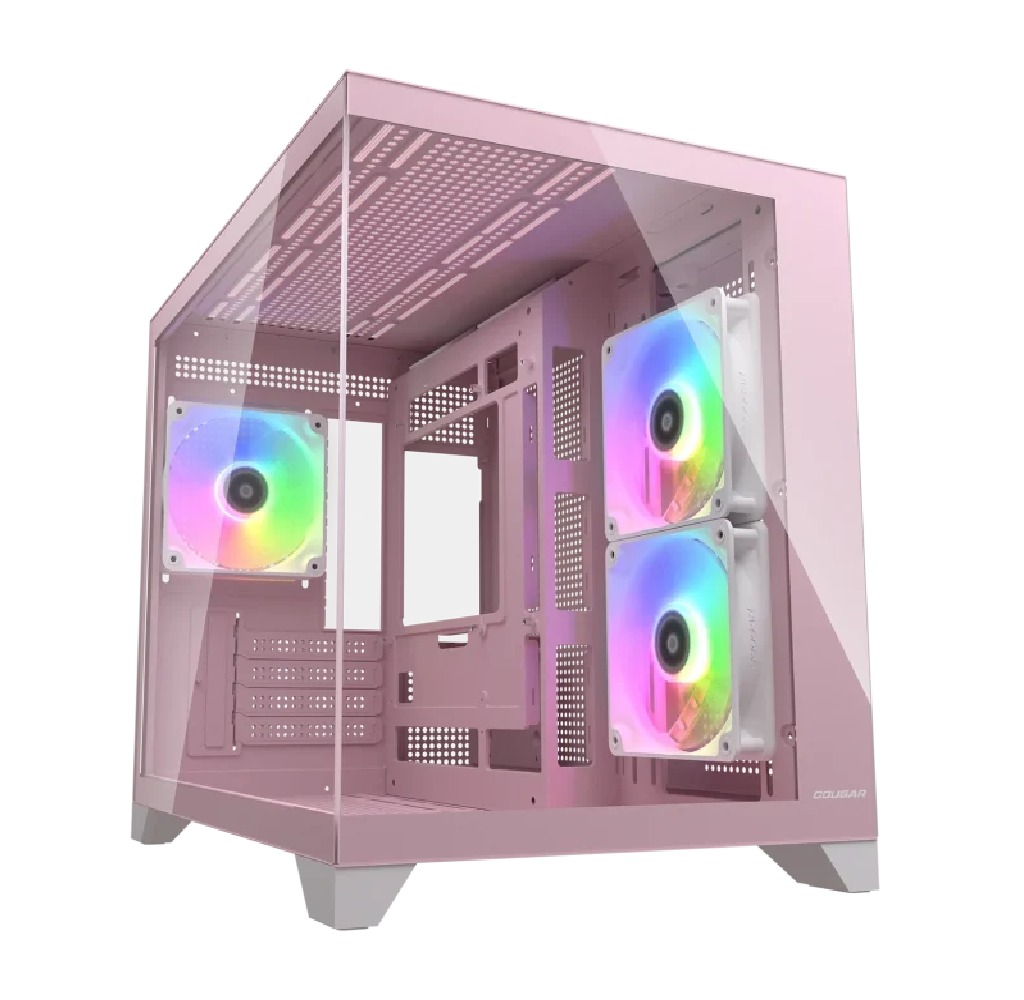

The FV150 Mini's compact form factor lets you display your build while occupying only minimal space, showing off components in the primary glass chamber while concealing hardware within the secondary chamber for a cleaner overall look.
Features:
- Compact dual chamber design showcasing the build while hiding hardware in a secondary chamber
- Cooling capacity of up to 3x 120mm or 2x140mm fans on top and bottom, 2x120mm or 2x140mm on the side, and 1x120mm at the rear
- Water cooling support up to 360mm on top and 240mm on the side
- Up to 400mm GPU clearance for high-performance graphics cards
- Supports reverse connector motherboards for a cleaner build
- Magnetically attached dust covers on top and bottom for easy cleaning
Specifications:
- Case form factor: Mini tower
- Motherboard type: Micro ATX / Mini-ITX
- Dimensions (W x H x D): 285 x 263 x 436 mm (11.2 x 10.4 x 17.2 in)
- I/O panel: USB 3.2 Gen 2 Type-C (10Gbps) x1, USB 3.0 Type-A (5Gbps) x2, 4 pole headset audio jack, restart button
- 3.5" drive bay: 1+0
- 2.5" drive bay: 1+2
- Expansion slots: 4, break to screen off for GPU installations
- Vertical GPU support: No
- Cooling fan support, top: 120mm x3 / 140mm x2
- Cooling fan support, M/B side: 120mm x2 / 140mm x2
- Cooling fan support, bottom: 120mm x3 / 140mm x2
- Cooling fan support, rear: 120mm x1
- Pre-installed fans: 120mm fixed lighting/fixed speed fan (reversed) x2, 120mm fixed lighting/fixed speed fan x1
- Pre-installed fan speed: 1200 ±10% RPM
- Pre-installed fan connector: 4 Pin
- Maximum number of fans: 9
- Water cooling support, top: 360mm / 280mm / 240mm
- Water cooling support, M/B side: 240mm / 280mm
- RGB Hub sync with motherboard: No
- Max graphics card length: 400mm (15.7 in)
- Max CPU cooler height: 170mm (6.7 in)
- Max PSU length: 200mm (7.9 in)
