Description:

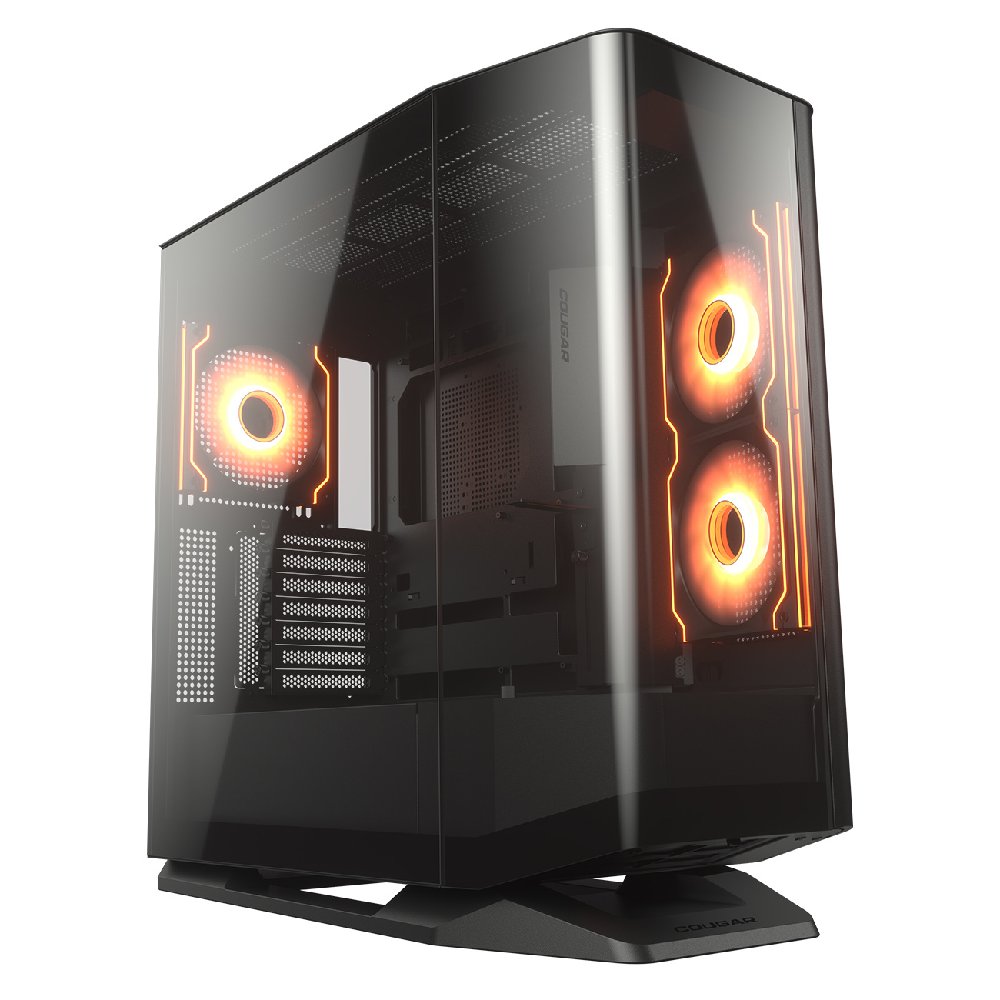

The FV270 RGB brings breathable form together with genuine function, engineered as a new standard for airflow dynamics. Cooling fans positioned at angled locations focus airflow into uninterrupted, continuous streams and lift dust reserves clear of the case, letting the tiled front breathe without losing ventilation from below.
Features:
- Angled cooling fan placements for uninterrupted, focused airflow streams
- Panoramic curved tempered glass side panel for full interior visibility
- Integrated universal fan hub for synchronized PWM fan speed and RGB lighting
- Reverse cable management support conceals cables behind the motherboard tray
- Support for both horizontal and vertical GPU orientation
- Strategically placed, easily removable dust guards for maintenance efficiency
- Tool-less bracket design for detachable bay and bottom trays
- Optional mounting platform for showcasing collectibles and figurines within the case
- Type C Gen 2 connectivity and RGB button on the front I/O panel
Specifications:
- Case form factor: Mid tower
- Motherboard type: Mini ITX / Micro ATX / ATX / CEB / E-ATX
- Dimensions (W x H x D): 268 x 530 x 512 mm (10.6 x 20.9 x 20.2 in)
- I/O panel: Type C Gen 2 x1, USB 3.0 x2, 4 pole headset audio jack, RGB button
- 3.5" drive bay: 2
- 2.5" drive bay: 2+2, converted from 3.5" drive bays
- Expansion slots: 7, horizontal slots can be converted into vertical slots
- Vertical GPU support: Yes
- Cooling fan support, top: 120mm x3 / 140mm x2
- Cooling fan support, M/B side: 120mm x2 / 140mm x2
- Cooling fan support, PSU shroud: 120mm x2 / 140mm x2
- Cooling fan support, bottom: 120mm x1
- Cooling fan support, rear: 120mm x1 / 140mm x1
- Pre-installed fans, M/B side: 140mm reversed ARGB PWM fan x2
- Pre-installed fans, bottom: 120mm reversed ARGB PWM fan x1
- Pre-installed fans, rear: 140mm ARGB PWM fan x1
- Pre-installed fan speed: 500 (±200) - 1200 (±10%) RPM
- Pre-installed fan connector: 5V 3 Pin (ARGB) / 4 Pin (fan)
- Maximum number of fans: 9
- Water cooling support, top: 360mm / 280mm / 240mm / 140mm / 120mm
- Water cooling support, M/B side: 280mm / 240mm / 140mm / 120mm
- Water cooling support, PSU shroud: 240mm / 120mm
- Water cooling support, rear: 140mm / 120mm
- PWM and RGB Hub sync with motherboard: Yes
- Max graphics card length, horizontal: 420mm (16.5 in) with fans only at M/B side; 330mm (13 in) with radiator and fans at M/B side
- Max graphics card length, vertical: 450mm (17.7 in)
- Max CPU cooler height: 180mm (7.1 in)
- Max PSU length: 250mm (9.8 in)
