Description:

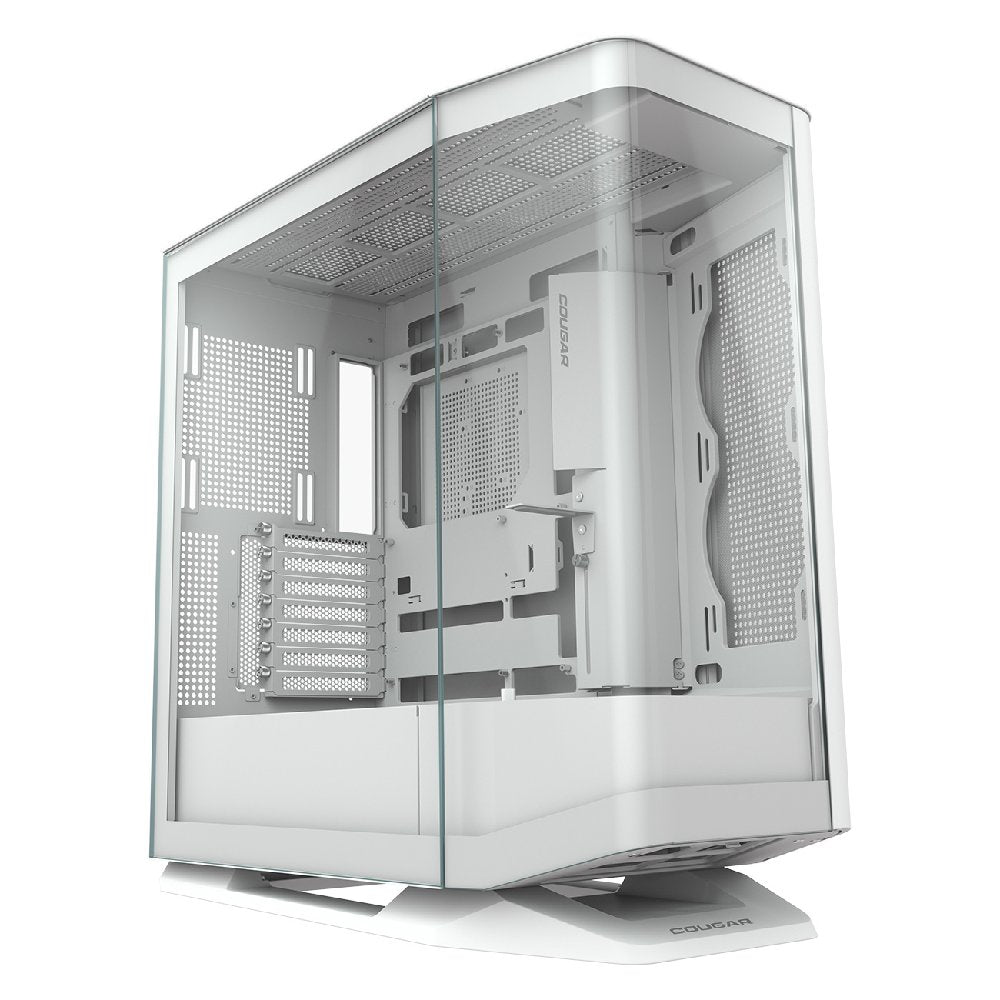

The FV270 White merges harmonious form with genuine function, with a peripheral fan design engineered as a new standard for airflow dynamics. Placing cooling fans at angled positions focuses airflow into uninterrupted, continuous streams and lifts dust reserves clear of the case, giving the tiled front room to breathe without losing ventilation from below.
Features:
- Angled cooling fan placements for uninterrupted, focused airflow streams
- Panoramic curved tempered glass side panel for full interior visibility
- Reverse cable management support conceals cables behind the motherboard tray
- Support for both horizontal and vertical GPU orientation
- Strategically placed, easily removable dust guards for maintenance efficiency
- Tool-less bracket design for detachable bay and bottom trays
- Optional mounting platform for showcasing collectibles and figurines within the case
Specifications:
- Case form factor: Mid tower
- Motherboard type: Mini ITX / Micro ATX / ATX / CEB / E-ATX
- Dimensions (W x H x D): 268 x 530 x 512 mm (10.6 x 20.9 x 20.2 in)
- I/O panel: Type C Gen 2 x1, USB 3.0 x2, 4 pole headset audio jack, reset button
- 3.5" drive bay: 2
- 2.5" drive bay: 2+2, converted from 3.5" drive bays
- Expansion slots: 7, horizontal slots can be converted into vertical slots
- Vertical GPU support: Yes
- Cooling fan support, top: 120mm x3 / 140mm x2
- Cooling fan support, M/B side: 120mm x2 / 140mm x2
- Cooling fan support, PSU shroud: 120mm x2 / 140mm x2
- Cooling fan support, bottom: 120mm x1
- Cooling fan support, rear: 120mm x1 / 140mm x1
- Pre-installed fans, bottom: 120mm reversed ARGB PWM fan x1
- Pre-installed fan speed: 500-1200 ±10% RPM
- Pre-installed fan connector: 5V 3 Pin (ARGB) / 4 Pin (fan)
- Maximum number of fans: 9
- Water cooling support, top: 360mm / 280mm / 240mm / 140mm / 120mm
- Water cooling support, M/B side: 280mm / 240mm / 140mm / 120mm
- Water cooling support, PSU shroud: 240mm / 120mm
- Water cooling support, rear: 140mm / 120mm
- RGB sync with motherboard: Yes
- Max graphics card length, horizontal: 420mm (16.5 in) with fans only at M/B side; 330mm (13 in) with radiator and fans at M/B side
- Max graphics card length, vertical: 450mm (17.7 in)
- Max CPU cooler height: 180mm (7.1 in)
- Max PSU length: 250mm (9.8 in)
