Description:

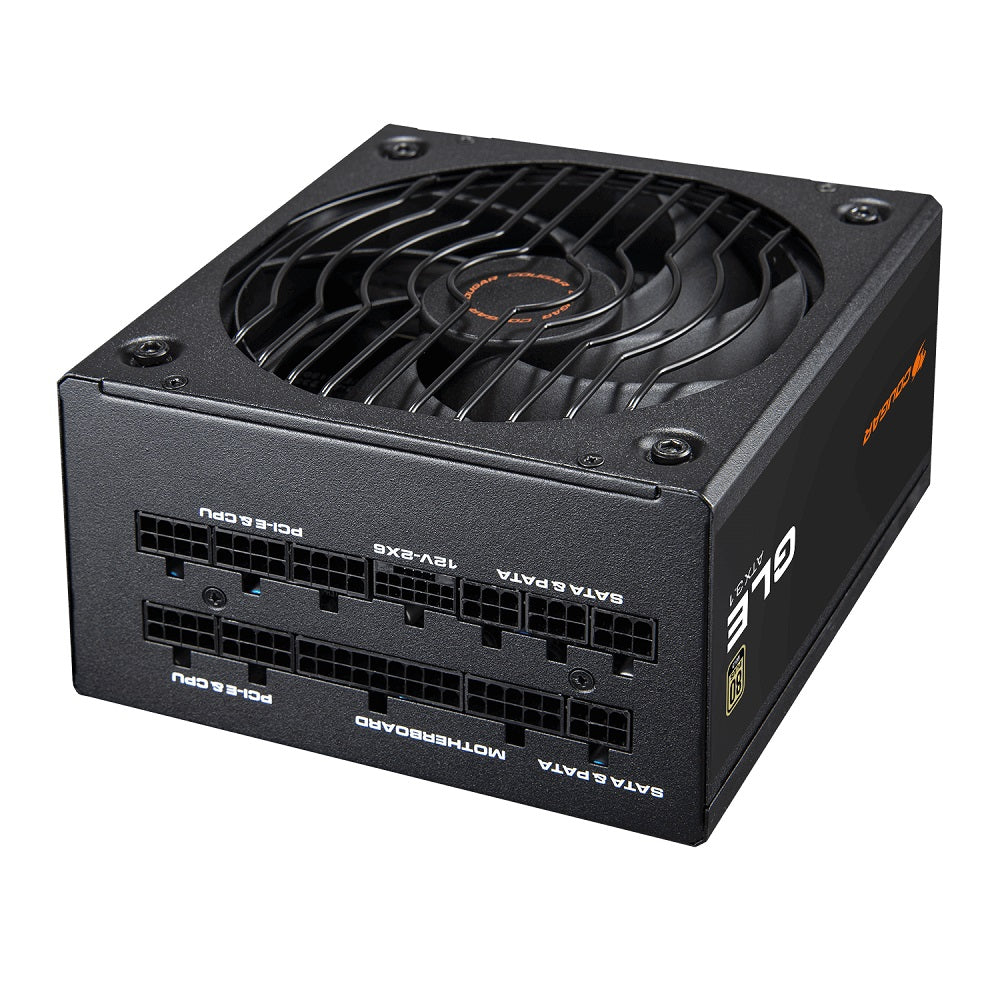

The Cougar is a 1000W fully modular power supply designed to support next-generation systems, conforming to the ATX 3.1 standard with a native 12V-2X6 design that delivers power to the latest graphics cards through a single 12+4-pin cable. With both 80 PLUS Gold efficiency rating and Cybenetics Platinum certifications, it offers high-quality stability, durability, and reliability, passing the four strict power excursion tests from the PSU ATX 3.1 Guide in which the spike power consumption must bear up to 200% of the rated power for 100μs. Designed for the next generation of GPUs, it supports the latest PCIe 5.1 specification, with the modular native PCIe 12V-2X6 connector providing a 650mm cable length with sufficient slack to reduce the risk of faulty connection during PC installation, without the need for a 6+2 pin adaptor. The highly efficient design surpasses the 80 PLUS Gold standard with up to 91% efficiency to help you save money on your electricity bill. Cougar's exclusive 135mm HDB fan is considered the best in its class for operating noise and expected lifespan, with fluid dynamics that greatly reduce friction and vibration, while optimised fan blades moulded with an integrated stabilising ring minimise flex during rotation for an optimal and silent cooling experience. Refined regulation comes from highly durable and consistently reliable 105°C Japanese main and standby capacitors that minimise voltage ripple, along with GLE's LLC, DC-DC, and Tri-Sense (3.3V, 5V, and 12V) design providing high-quality outputs with an extremely tight 2% voltage regulation for stabler operation, performing optimally in 40°C working temperature environments. Fully modular embossed black cables let you connect only the cables you need, reducing cable clutter and friction while improving airflow and ease of installation.
Features:
- Conforms to the ATX 3.1 standard with native 12V-2X6 design
- Passes four strict ATX 3.1 power excursion tests bearing up to 200% of rated power for 100μs
- Supports PCI Express 5.1 graphics cards through a single 12+4 pin connector with true 200% power excursion dynamic outputs
- 650mm modular native PCIe 12V-2X6 cable reduces the risk of faulty connection without a 6+2 pin adaptor
- 80 PLUS Gold certified with up to 91% efficiency to cut down your electricity bill
- Cybenetics Platinum certification for outstanding efficiency and noise performance
- Exclusive 135mm HDB fan enhances airflow smoothness and optimises silent performance
- Hydro dynamic bearings greatly reduce friction and vibration for better reliability and quieter operation
- Optimised fan blades with integrated stabilising ring minimise flex and reduce turbulence
- Silent Spin durable HDB fan with stabilising ring for noiseless gaming
- 100% refined Japanese capacitors extend the longevity of the PSU
- Highly durable and reliable 105°C Japanese main and standby capacitors minimise voltage ripple
- LLC, DC-DC and Tri-Sense (3.3V, 5V and 12V) design provides high-quality outputs
- Extremely tight 2% voltage regulation delivers stabler operation
- Flawless operation at 40°C ambient temperatures
- Fully modular power supply unit lets you connect only the cables you need for less clutter and better airflow
- Sleek embossed black cable design with ample cable length for pleasing PC installation
- Compatible with the latest current and next-generation multi-core CPU platforms
- Full protection suite with UVP, OCP, SCP, OVP, OTP and OPP
Specifications:
- Power Capacity: 1000W
- Standard: ATX 3.1
- Certification: 80 PLUS Gold, Cybenetics Platinum
- AC Input: AC100-240V~, 50-60Hz, 15-7.5A
- DC Output: +3.3V 20A, +5V 20A (120W combined), +12V 83.3A (1000W), -12V 0.3A (3.6W), +5Vsb 3A (15W)
- Total Output: 1000W
- Fan: 135mm HDB Fan
- Modularity: Fully Modular
- Voltage Regulation: ± 2%
- Connectors: Main 24(20+4) Pin x 1 (600mm), CPU 8(4+4) Pin x 2 (650mm), 12V-2X6 (12+4) x 1 (650mm), PCI-E 8(6+2) x 6 (650mm), S-ATA x 12 (500mm), Peripherals x 4 (500mm)
- Protections: UVP, OCP, SCP, OVP, OTP, OPP
- Safety Standards: TUV, CE, FC, EAC, UKCA, CCC, RoHS, CAN ICES-003(B)/NMB-003(B)
- Colour: Black
Package Contents:
Cougar Power Supply
Modular Cables
