Description:

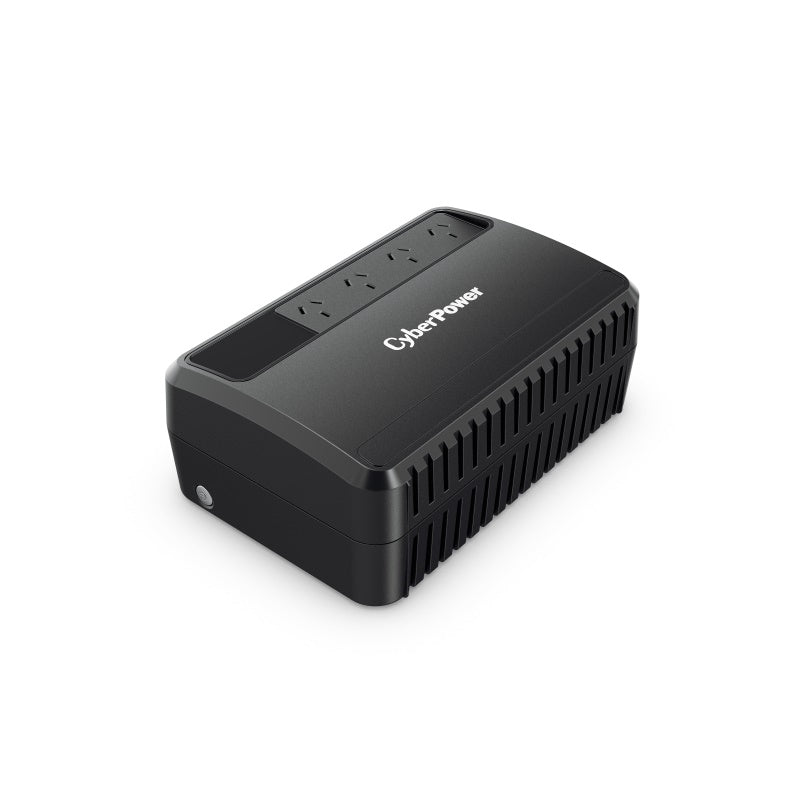

The CyberPower BU1100E delivers dependable battery backup for home and office users, protecting office PCs and other electronic devices from surges, spikes, brownouts, and other power irregularities. Constructed with fireproof plastic housing like all CyberPower UPS units, it offers exceptional fire-resistant capability compared to similar products, helping minimise potential damage to valuable assets in the event of fire. Its innovative Battery Management Technology greatly enhances battery efficiency, promoting improved battery performance and extended battery life. The configurable alarm lets users switch the audible alarm on or off during battery mode to prevent unwanted disturbances, while the brick design with mounting slots makes it easy to position on walls, desks, or other tight spaces.
Features:
- Line-interactive UPS topology
- Automatic Voltage Regulation (AVR)
- Simulated sine wave output
- Generator compatible
- Overload protection
- Surge and spike protection
- EMI and RFI filtration
- LED status indicator
- Configurable alarm
Specifications:
- Brand: CyberPower
- Form factor: Brick
- UPS topology: Line-interactive
- Generator compatibility: Yes
- Nominal input voltage: 230 ± 10% Vac
- Input voltage range: 170 ~ 290 Vac
- Input frequency: 50 ± 5 Hz, 60 ± 5 Hz
- Input frequency detection: Auto-sensing
- Rated input current: 5 A
- Input connector type: AU
- Power cord length: 4 ft (1.2 m)
- Capacity: 1100VA / 660W
- On battery waveform: Simulated sine wave
- On battery voltage: 230 ± 10% Vac
- On battery frequency: 50 ± 1%, 60 ± 1% Hz
- AVR: Single boost, single buck
- Overload protection: Circuit breaker
- Total outlets: 4 (AU x 4)
- Battery and surge protected outlets: 4
- Typical transfer time: 4 ms
- Runtime at 60W: 70 min
- Runtime at 90W: 55 min
- Runtime at 200W: 20 min
- Typical recharge time: 8 hours
- Start on battery: Yes
- User-replaceable battery: No
- Battery type: Sealed lead-acid
- Surge suppression: 125 Joules
- EMI/RFI filtration: Yes
- LED indicators: Power on, line mode, battery mode, low battery
- HID compliant USB port: 1
- Audible alarms: Battery mode, low battery, overload, UPS fault
- Management cable: USB cable x1
- Power management software: PowerPanel® Personal (recommended)
- Enclosure construction: Plastic
- Colour: Black
- Dimensions (WxHxD): 190 x 110.5 x 290 mm (7.48 x 4.35 x 11.42 in)
- Weight: 7.6 kg (16.76 lbs)
- Operating temperature: 0 ~ 40°C (32 ~ 104°F)
- Operating relative humidity (non-condensing): 0 ~ 90%
- Operating elevation: 0-10,000 feet (0-3,048 meters)
- Storage temperature: -20 ~ 50°C (-4 ~ 122°F)
- Storage relative humidity (non-condensing): 0 ~ 90%
- Storage elevation: 0-10,000 feet (0-3,048 meters)
- Online thermal dissipation: 45 BTU/hr
- Audible noise at 1.5M from surface of unit: 40 dBA
- Certifications: CE, RCM
- RoHS: Yes
Package contents:
BU1100E UPS
USB cable
