Description:

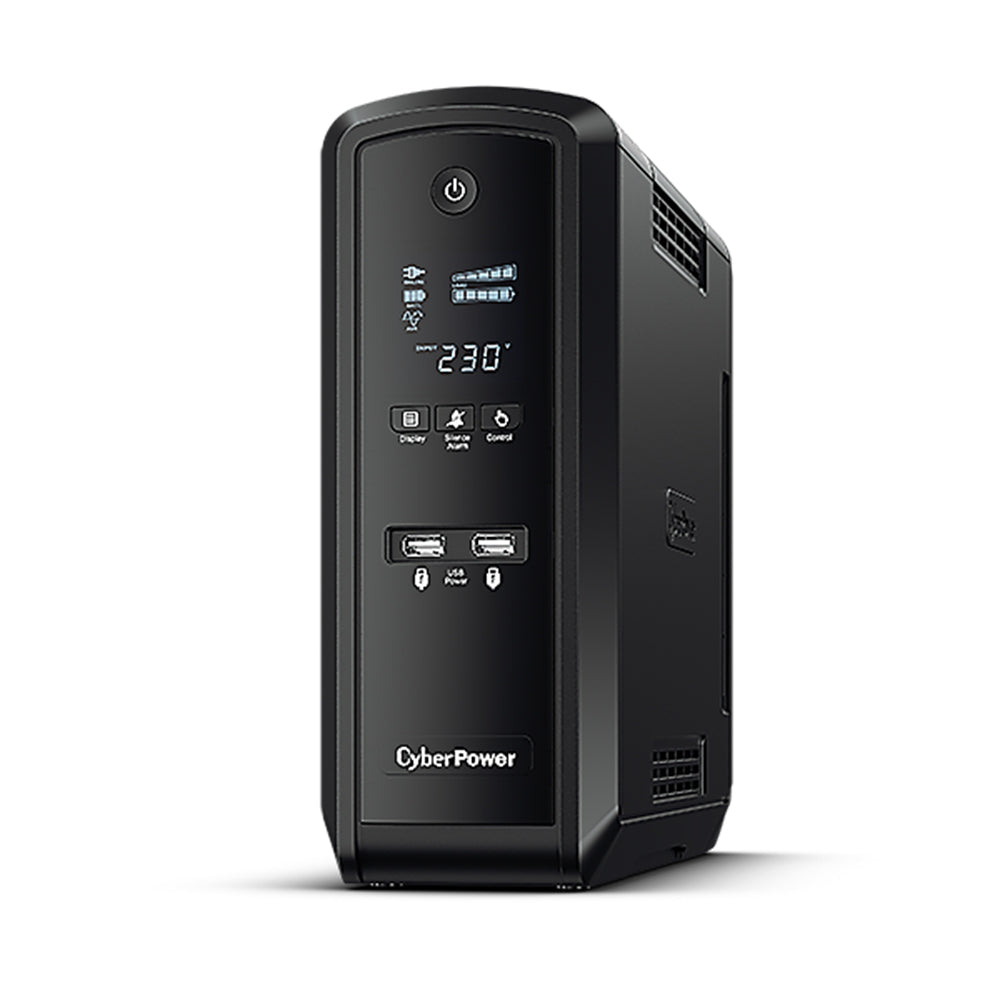

The CyberPower UPS with Pure Sine Wave output protects mid- to high-end computer systems, servers, and networking hardware that operate on conventional and Active Power Factor Correction (PFC) power supplies. Engineered with GreenPower UPS™ Technology to enhance operating efficiency and lower energy consumption, this UPS achieves considerable energy cost savings over conventional UPS systems. Automatic Voltage Regulation (AVR) keeps voltage levels safe for connected equipment, while the featured data line protection guards phones, networks, and communication devices against surges, spikes, and other power irregularities. Through the multifunction LCD display, users can view power and battery conditions and configure advanced settings, including alerts for potential power problems and a self-test at the push of a button.
Features:
- Line-interactive UPS topology
- Active PFC compatible
- Automatic Voltage Regulation (AVR)
- LED status indicator
- Surge and spike protection
- USB charging ports
- Energy Saving Technology
- Pure sine wave output
- LCD status display
- PowerPanel® management software
- Phone, fax, modem, DSL, and network protection
- Tower form factor
Specifications:
- Brand: CyberPower
- Series: Sinewave
- Phase: Single phase
- Form factor: Tower
- UPS topology: Line-interactive
- Energy saving technology: GreenPower UPS™ Bypass Technology
- Active PFC compatibility: Yes
- Nominal input voltage: 230 Vac
- Input voltage range: 170 ~ 270 Vac
- Input frequency: 50 ± 3 Hz, 60 ± 3 Hz
- Input frequency detection: Auto-sensing
- Rated input current: 10 A
- Input connector type: IEC C14
- Detachable power cord plug type: AU x 1
- Power cord length: 6 ft (1.83 m)
- Capacity: 1300VA / 780W
- On battery waveform: Pure sine wave
- On battery voltage: 230 ± 10% Vac
- On battery frequency: 50 ± 1%, 60 ± 1% Hz
- AVR: Single boost
- Overload protection: Internal current limiting, circuit breaker
- Total outlets: 6 (AU x 6)
- Battery and surge protected outlets: 6
- Typical transfer time: 4 ms
- USB charging ports: USB-A x 2 (5V / 2.1A)
- Runtime at half load: 9 min
- Runtime at full load: 2.5 min
- Typical recharge time: 8 hours
- Start on battery: Yes
- User-replaceable battery: Yes
- Battery type: Sealed lead-acid
- Surge suppression: 405 Joules
- EMI/RFI filtration: Yes
- Phone/network protection: RJ11/RJ45 (Combo), 1-in, 1-out
- LCD panel: Yes
- LCD information display: Operation type, power status, battery status, load status, fault and warning, other information, event and log
- LCD setting and control: Mode setting, alarm setting, input and output, battery setting, fault and warning, event and log
- LED indicators: Power on
- HID compliant USB port: 1
- Audible alarms: Battery mode, low battery, overload, UPS fault
- Management cable: Power cord x2, USB cable x1
- Ethernet data transmission speed: Up to 1Gbps
- Power management software: PowerPanel® Personal (recommended)
- Enclosure construction: Plastic
- Colour: Black
- Dimensions (WxHxD): 100 x 265 x 370 mm (3.94 x 10.43 x 14.57 in)
- Weight: 10.4 kg (22.9 lbs)
- Operating temperature: 0 ~ 40°C (32 ~ 104°F)
- Operating relative humidity (non-condensing): 0 ~ 95%
- Operating elevation: 0-9,843 feet (0-3,000 meters)
- Storage temperature: -15 ~ 45°C (5 ~ 113°F)
- Storage relative humidity (non-condensing): 0 ~ 95%
- Storage elevation: 0-4,921 feet (0-1,500 meters)
- Online thermal dissipation: 41 BTU/hr
- Audible noise at 1.0M from surface of unit: 38.1 dBA
- Certifications: CE, EAC, RCM
- RoHS: Yes
Package contents:
UPS
Power cord
USB cable
User's manual
