Description:

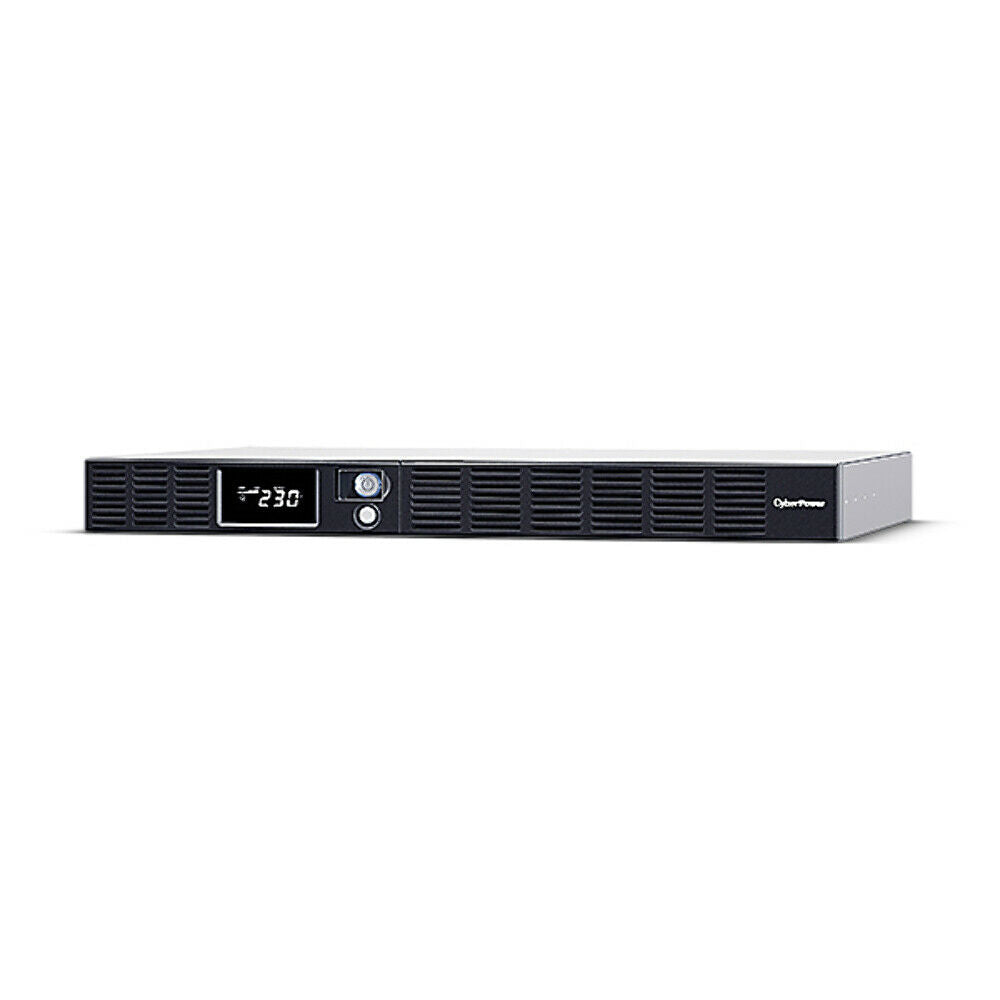

The CyberPower Office Rackmount Series 1500VA Line-Interactive UPS delivers Simulated Sine Wave output power for office system devices including PCs, workstations, networking devices, and peripherals. It is typically integrated into back office and server room environments to ensure a reliable backup power supply during power failures. The multifunction LCD display offers real-time information, including input and output voltage levels, load and battery levels, battery runtime, overload warning, and a silent mode. Network ports on the UPS prevent network devices from being subjected to sudden power surges caused by lightning, avoiding potential system damage. For battery maintenance, the UPS supports battery hot-swapping, enabling users to perform normal battery maintenance without significant interruption.
Features:
- Line-interactive UPS topology
- Simulated sine wave output
- Overload protection
- Surge and spike protection
- Phone, fax, modem, DSL, and network protection
- USB connectivity port
- SNMP/HTTP remote management capability (optional)
- Energy Saving Technology
- Automatic Voltage Regulation (AVR)
- Hot-swappable batteries
- EMI and RFI filtration
- LCD status display
- PowerPanel® management software
Specifications:
- Brand: CyberPower
- Series: Office Rackmount
- Phase: Single phase
- Form factor: Rackmount
- UPS topology: Line-interactive
- Energy saving technology: GreenPower UPS™ Bypass Technology
- Nominal input voltage: 230 Vac
- Input voltage range: 165 ~ 271 Vac
- Adjustable voltage range: 253 ~ 271 Vac, 189 ~ 207 Vac
- Input frequency: 50 ± 3 Hz, 60 ± 3 Hz
- Input frequency detection: Auto-sensing
- Input connector type: IEC C14
- Detachable power cord plug type: IEC C14 x 1
- Power cord length: 6 ft (1.83 m)
- Capacity: 1500VA / 900W
- On battery waveform: Simulated sine wave
- On battery voltage: 230 ± 10% Vac
- On battery frequency: 50 ± 1%, 60 ± 1% Hz
- Power factor: 0.6
- AVR: Single boost
- Overload protection: Internal current limiting, circuit breaker
- Total outlets: 6 (IEC C13 x 6)
- Battery and surge protected outlets: 4
- Surge-only protected outlets: 2
- Typical transfer time: 4 ms
- Runtime at half load: 11 min
- Runtime at full load: 2.5 min
- Typical recharge time: 8 hours
- Start on battery: Yes
- User-replaceable battery: Yes
- Hot-swappable battery: Yes
- Battery type: Sealed lead-acid
- Surge suppression: 810 Joules
- EMI/RFI filtration: Yes
- Phone/network protection: RJ11/RJ45 (Combo), 1-in, 1-out
- LCD panel: Yes
- LCD information display: Operation type, power status, battery status, load status, other information
- LCD setting and control: Mode setting, alarm setting, input and output
- LED indicators: Power on
- HID compliant USB port: 1
- Serial port: Dry contact
- Audible alarms: Battery mode, low battery, overload, UPS fault
- Management cable: Power cord x4, USB cable x1
- Power management software: PowerPanel® Business (recommended)
- SNMP/HTTP remote monitoring: Yes - with optional RMCARD205
- Enclosure construction: Metal
- Colour: Silver
- Rackmount ears: Yes
- Dimensions (WxHxD): 433 x 44 x 389 mm (17 x 1.7 x 15.3 in)
- Weight: 14.9 kg (32.8 lbs)
- Installed rack height: 1U
- Operating temperature: 0 ~ 40°C (32 ~ 104°F)
- Operating relative humidity (non-condensing): 0 ~ 95%
- Operating elevation: 0-9,843 feet (0-3,000 meters)
- Storage temperature: -15 ~ 45°C (5 ~ 113°F)
- Storage relative humidity (non-condensing): 0 ~ 95%
- Storage elevation: 0-49,213 feet (0-15,000 meters)
- Online thermal dissipation: 24 BTU/hr
- Certifications: CE, EAC, RCM
- RoHS: Yes
Package contents:
Office Rackmount Series 1500VA UPS
Power cord
USB cable
