Description:

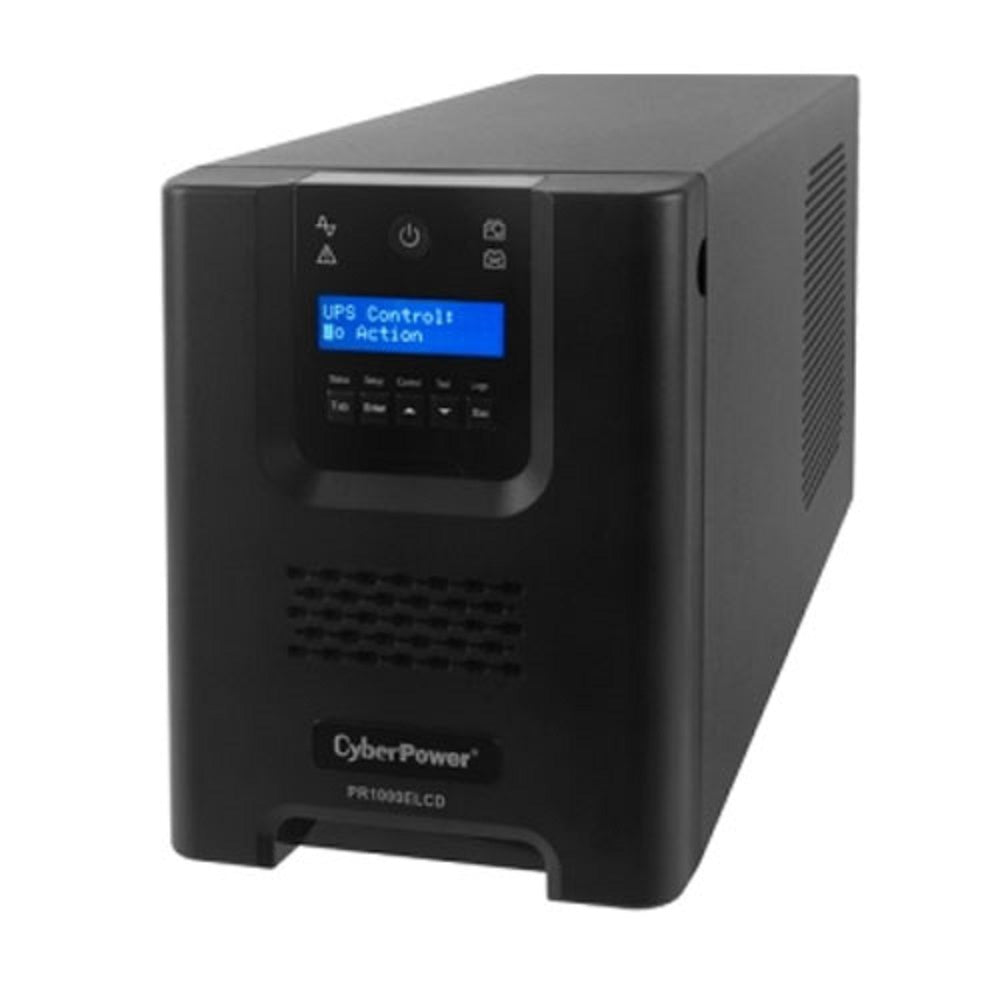

The CyberPower PRO Series 1500VA Line-Interactive UPS with seamless Pure Sine Wave provides the best power protection available for office system devices including PCs, workstations, networking devices, and peripherals. It is typically integrated in back office, server room, and data center environments. The UPS can be locally managed via USB or serial ports, or remotely managed via an SNMP Card (an optional Remote Management Card), allowing administrators and users unsurpassed flexibility to remotely access each UPS through the network to perform real-time monitoring, UPS configurations, and scheduled system shutdowns using PowerPanel Management software. The product is also certified to be interoperable and compatible with Cisco, helping achieve the best energy performance possible.
Features:
- Line-interactive UPS topology
- Active PFC compatible
- Automatic Voltage Regulation (AVR)
- Critical and non-critical load outlets
- Surge and spike protection
- LCD status display
- USB connectivity port
- PowerPanel® management software
- Tower form factor
- Energy Saving Technology
- Pure sine wave output
- Overload protection
- Hot-swappable batteries
- EMI and RFI filtration
- Detachable LCD panel
- Emergency Power Off (EPO) port
- SNMP/HTTP remote management capability (optional)
Specifications:
- Brand: CyberPower
- Series: PRO
- Phase: Single phase
- Form factor: Tower
- UPS topology: Line-interactive
- Energy saving technology: GreenPower UPS™ Bypass Technology
- Energy Star qualified: Yes
- Active PFC compatibility: Yes
- Nominal input voltage: 230 Vac
- Input voltage range: 151 ~ 301 Vac
- Input frequency: 50 ± 3 Hz, 60 ± 3 Hz
- Input frequency detection: Auto-sensing
- Rated input current: 10 A
- Input connector type: IEC C14
- Detachable power cord plug type: AU x 1, IEC C14 x 1
- Power cord length: 6 ft (1.83 m) each
- Capacity: 1500VA / 1350W
- On battery waveform: Pure sine wave
- On battery voltage: 230 ± 5% Vac
- On battery frequency: 50 ± 1%, 60 ± 1% Hz
- Power factor: 0.9
- AVR: Double boost, single buck
- Overload protection: Internal current limiting
- Total outlets: 8 (IEC C13 x 8)
- Battery and surge protected outlets: 8
- Critical load (CL) outlets: 4
- Non-critical load (NCL) outlets: 4
- Typical transfer time: 4 ms
- Runtime at half load: 17 min
- Runtime at full load: 4 min
- Typical recharge time: 8 hours
- Quick recharge time: 3 hours
- Start on battery: Yes
- User-replaceable battery: Yes
- Hot-swappable battery: Yes
- Battery type: Sealed lead-acid
- Surge suppression: 405 Joules
- EMI/RFI filtration: Yes
- LCD panel: Yes
- Detachable LCD panel: Yes
- LCD information display: Operation type, power status, battery status, load status, fault and warning, other information, event and log
- LCD setting and control: Mode setting, alarm setting, input and output, battery setting, fault and warning, event and log
- LED indicators: Power on, line mode, battery mode, UPS fault, replace battery
- HID compliant USB port: 1
- Emergency Power Off (EPO) port: Yes
- Audible alarms: Battery mode, low battery, overload, UPS fault
- Management cable: Power cord x2, USB cable x1, EPO cable x1
- Power management software: PowerPanel® Business (recommended)
- SNMP/HTTP remote monitoring: Yes - with optional RMCARD205
- Enclosure construction: Metal
- Colour: Black
- Dimensions (WxHxD): 170 x 221 x 432 mm (6.69 x 8.70 x 17.01 in)
- Weight: 25.1 kg (55.34 lbs)
- Operating temperature: 0 ~ 40°C (32 ~ 104°F)
- Operating relative humidity (non-condensing): 0 ~ 95%
- Operating elevation: 0-9,843 feet (0-3,000 meters)
- Storage temperature: -15 ~ 45°C (5 ~ 113°F)
- Storage relative humidity (non-condensing): 0 ~ 95%
- Storage elevation: 0-49,213 feet (0-15,000 meters)
- Online thermal dissipation: 113 BTU/hr
- Certifications: CE, EAC, RCM
- RoHS: Yes
Package contents:
PRO Series 1500VA UPS
Power cord
USB cable
EPO cable
