Description:

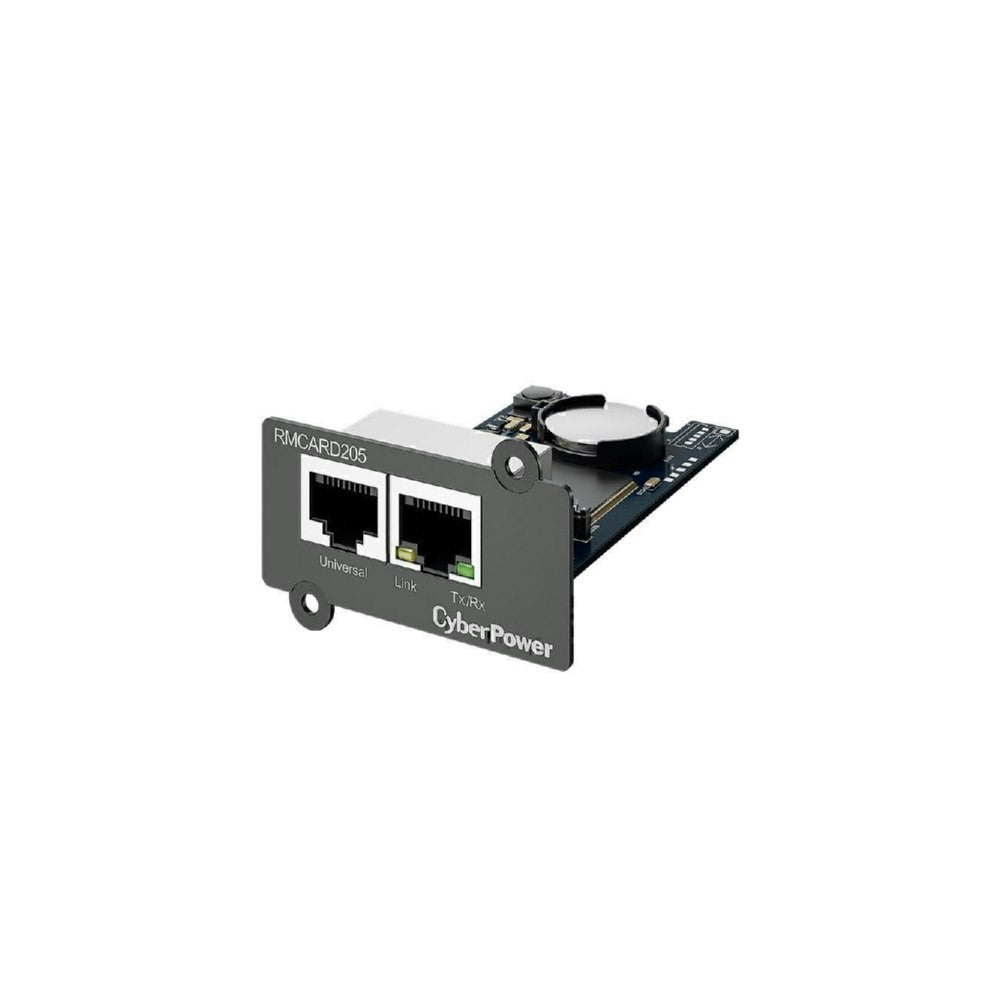

The CyberPower RMCARD205 is a full-featured network management card that remotely manages, monitors, and controls select CyberPower UPS systems and ATS PDUs via a standard web browser, command line interface (CLI), SNMP, or network management system (NMS). Especially suited to enterprise installations, it provides scheduling for UPS shutdown, startup, and rebooting, along with event action settings, event logging, status recording, and automatic event notifications via email, SMS, SNMP traps, or Syslog. PowerPanel® Business Edition Client software protects servers and workstations from data loss due to power failure by initiating an auto-shutdown command from a UPS when a power loss event occurs. An optional environmental sensor (ENVIROSENSOR) can be connected to the RMCARD205 through its Universal port to monitor the ambient temperature and humidity of a server room, IT closet, or other critical environments. Administrators define temperature parameters in Fahrenheit or Celsius, and thresholds can be configured to prompt the RMCARD205 to send predefined notifications, with alert thresholds easily customized to fit environmental control requirements.
Features:
- Remote management via standard web browser, CLI, or NMS without being onsite
- Built-in automatic shutdown with PowerPanel Business Edition Client to protect servers and workstations from data loss
- Offsite scheduling of UPS and ATS PDU shutdown, startup, and reboot operations
- Automatic event notification via email, SMS, SNMP traps, or Syslog server
- Event logging and status records tracing UPS and ATS PDU operational history
- Event action settings allowing administrators to customize UPS actions in response to power and system events
- Upgradable firmware with new functionality, feature enhancements, and bug fixes
- Upgradable UPS firmware via the web management interface on select UPS models
- Optional ENVIROSENSOR connects to the Universal port to monitor ambient temperature and humidity
Specifications:
- Brand: CyberPower
- Type: Network management card
- Network port: Ethernet RJ-45
- Data link protocol: Ethernet 100Base-TX, Ethernet 10Base-T
- LED status indicators: Tx/Rx, link
- Universal port: Optional ENVIROSENSOR
- HTTP: v1.1 RFC 2616
- HTTPS: RFC 2818
- SNMP: v1 RFC 1155, RFC 1156, RFC 1157; v3 RFC 3414
- MIB: RFC 1213, RFC 1628
- SMTP: RFC 2821
- SMTPS: RFC 3207
- TLS: v1.0 RFC 2246, v1.1 RFC 4346
- SSL: v3.0 RFC 6101
- Telnet: RFC 854
- SSH: v2 RFC 4253, RFC 4254
- FTP: RFC 959
- DNS: RFC 1035
- DHCP: RFC 2131
- TCP/IP: v4 RFC 791, v6 RFC 2460
- RADIUS: RFC 2865
- LDAP: v3 RFC 2251
- LDAPS: v3 RFC 4513
- SysLog: RFC 5424
- NTP: RFC 958
- Supported CyberPower models: Select PR/OL/OR series UPS systems and ATS PDU with expansion slot
- Safety certifications: FCC DoC Class A, CE
- Environmental: RoHS compliant
- Dimensions (WxHxD): 54 x 36.06 x 76.2 mm (2.13 x 1.42 x 3 in)
- Weight: 0.04 kg (0.08 lb)
- Operating temperature: 0°C to 40°C (32°F to 104°F)
- Operating relative humidity: 0% to 90% non-condensing
- Operating elevation: 0 ft to 10,000 ft (0 m to 3,000 m)
- Storage temperature: -10°C to 50°C (14°F to 122°F)
- Storage relative humidity: 0% to 95% non-condensing
- Storage elevation: 0 ft to 50,000 ft (0 m to 15,000 m)
