Description:

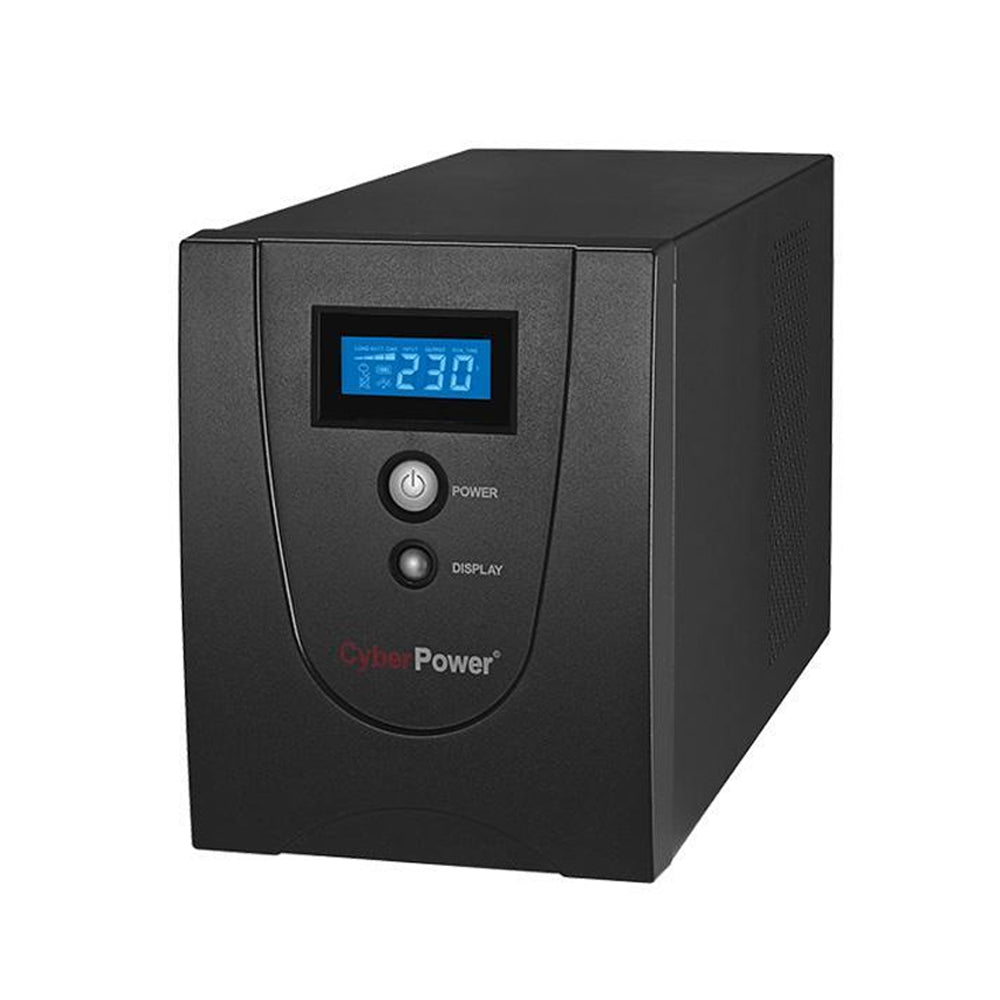

The CyberPower Value SOHO LCD 2200VA offers home and office users a reliable battery backup and safeguards office PCs, network communication equipment, and other electronic devices from surges, spikes, brownouts, and other power incidents. Designed with GreenPower UPS™ Technology to improve operating efficiency and minimize energy consumption, users can enjoy significant energy cost savings over conventional UPS systems.
Features:
- Line-interactive UPS topology
- Simulated sine wave output
- Surge and spike protection
- LCD status display
- Tower form factor
- Energy Saving Technology
- Automatic Voltage Regulation (AVR)
- Phone, fax, modem, DSL, and network protection
- PowerPanel® management software
- Configurable alarm
Specifications:
- Brand: CyberPower
- Series: Value SOHO
- Phase: Single phase
- Form factor: Tower
- UPS topology: Line-interactive
- Energy saving technology: GreenPower UPS™ Bypass Technology
- Nominal input voltage: 230 ± 10% Vac
- Input voltage range: 170 ~ 290 Vac
- Input frequency: 50 ± 5 Hz, 60 ± 5 Hz
- Input frequency detection: Auto-sensing
- Rated input current: 10 A
- Input connector type: IEC C14
- Detachable power cord plug type: AU x 1
- Power cord length: 6 ft (1.8 m)
- Capacity: 2200VA / 1320W
- On battery waveform: Simulated sine wave
- On battery voltage: 230 ± 10% Vac
- On battery frequency: 50 ± 1%, 60 ± 1% Hz
- AVR: Single boost, single buck
- Overload protection: Circuit breaker
- Total outlets: 4 (AU x 4)
- Battery and surge protected outlets: 4
- Typical transfer time: 4 ms
- Runtime at half load: 7 min
- Runtime at full load: 1 min
- Typical recharge time: 8 hours
- Start on battery: Yes
- User-replaceable battery: Yes
- Battery type: Sealed lead-acid
- Surge suppression: 125 Joules
- EMI/RFI filtration: Yes
- Phone/network protection: RJ11/RJ45 (Combo), 1-in, 1-out
- LCD panel: Yes
- LCD information display: Operation type, power status, battery status, load status, fault and warning, other information
- LCD setting and control: Alarm setting
- LED indicators: Power on
- HID compliant USB port: 1
- Audible alarms: Battery mode, low battery, overload, UPS fault
- Management cable: Power cord x1, USB cable x1, phone line x1
- Power management software: PowerPanel® Personal (recommended)
- Enclosure construction: Metal
- Colour: Black
- Dimensions (WxHxD): 140 x 180 x 326 mm (5.512 x 7.09 x 12.835 in)
- Weight: 14.5 kg (31.9 lbs)
- Operating temperature: 0 ~ 40°C (32 ~ 104°F)
- Operating relative humidity (non-condensing): 0 ~ 90%
- Operating elevation: 0-9,843 feet (0-3,000 meters)
- Storage temperature: -20 ~ 50°C (-4 ~ 122°F)
- Storage relative humidity (non-condensing): 0 ~ 90%
- Storage elevation: 0-9,843 feet (0-3,000 meters)
- Online thermal dissipation: 225 BTU/hr
- Audible noise at 1.5M from surface of unit: 50 dBA
- Certifications: CE, C-Tick, EAC
- RoHS: Yes
Package contents:
Value SOHO LCD 2200VA UPS
Power cord
USB cable
Phone line
User's manual
Product registration card
