Description:

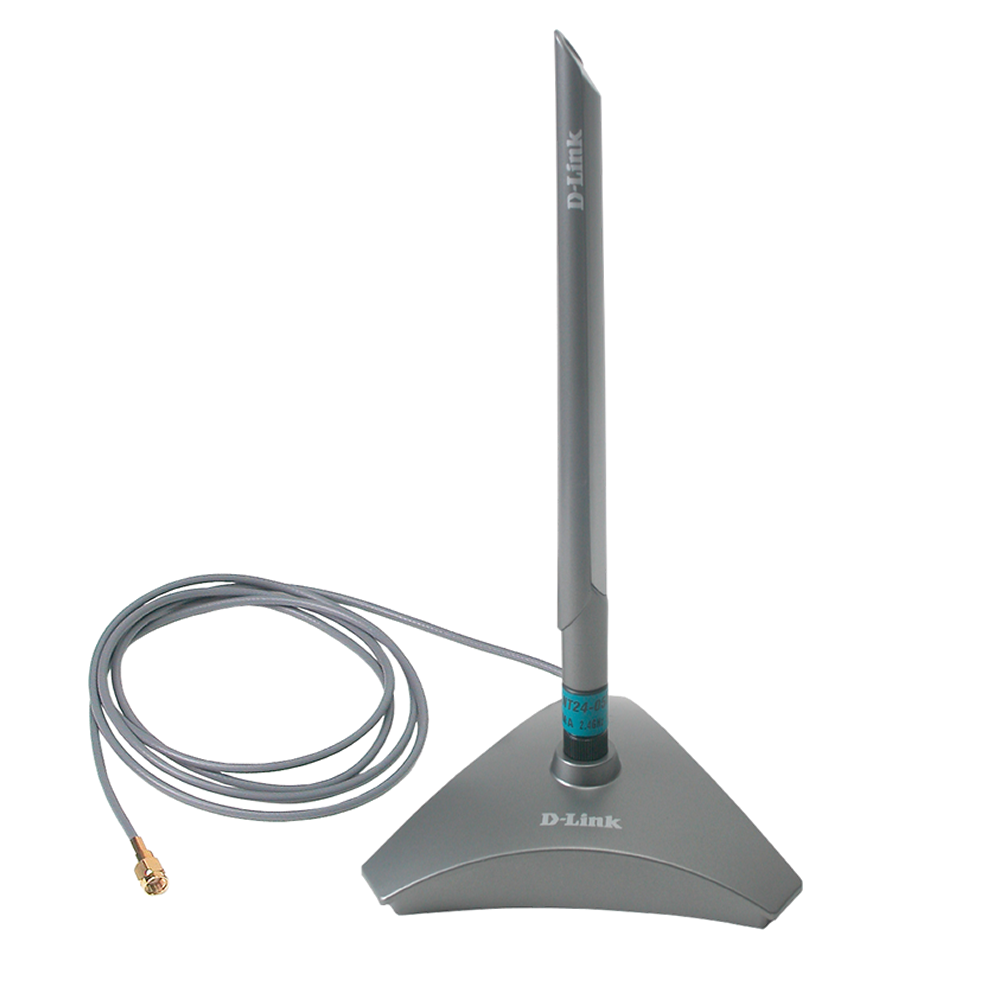

The D-Link ANT24-0501 is a high-gain omni-directional antenna designed to improve wireless coverage for 2.4GHz WLAN devices. Compatible with IEEE 802.11b, 802.11g and 802.11n wireless equipment, it enhances transmission and reception performance for access points and routers. The antenna can replace a standard antenna to extend wireless range and includes a 1.5m extension cable along with an RP-SMA to RP-TNC adapter for flexible installation.
Features:
- High-gain 5dBi omni-directional antenna improves wireless coverage.
- Designed for 2.4GHz ISM band indoor applications.
- Compatible with IEEE 802.11b, 802.11g and 802.11n devices.
- Suitable for wireless access points and routers.
- Replaces standard antennas to extend operating range.
- Can be connected directly or via the included extension cable.
- Includes RP-SMA to RP-TNC adapter for broader compatibility.
- Collinear antenna design provides consistent signal performance.
- 360° horizontal coverage supports wide-area wireless distribution.
- Durable ABS and ABS+PC construction.
Specifications:
- Colour:
- Antenna: Metallic Grey and Silver
- Antenna Base: Metallic Grey
- Dimensions:
- 230 × 120 × 120mm (Antenna Base Included)
- Antenna Pole Diameter: 9mm
- Weight: 217g (Including Antenna Base and Extension Cable)
- Frequency Range: 2.4GHz to 2.5GHz
- Directivity: Omni-Directional
- Antenna Structure: Collinear
- Peak Gain: 5dBi (Without Cable Loss)
- Impedance: 50 Ohm
- VSWR: 1.92 (Maximum)
- Return Loss: -10dB (Maximum)
- Maximum Power: 1 Watt
- Cable Loss:
- Beamwidth:
- Vertical (E-Plane): 36°
- Horizontal (H-Plane): 360°
- Extension Cable:
- RG-178 50-Ohm
- Length: 1.5m
- Colour: Grey
- Connectors:
- RP-SMA
- RP-SMA to RP-TNC Adapter Included
- Antenna Material:
- Compatible Standards:
- IEEE 802.11b
- IEEE 802.11g
- IEEE 802.11n
- Operating Temperature: -20°C to +65°C
- Storage Temperature: -30°C to +75°C
- Operating Humidity: 5%–95% RH Non-Condensing
- Storage Humidity: 5%–95% RH Non-Condensing
Package contents:
D-Link ANT24-0501 5dBi Omni-Directional Antenna
1.5m RG-178 Extension Cable
RP-SMA to RP-TNC Adapter
