Description:

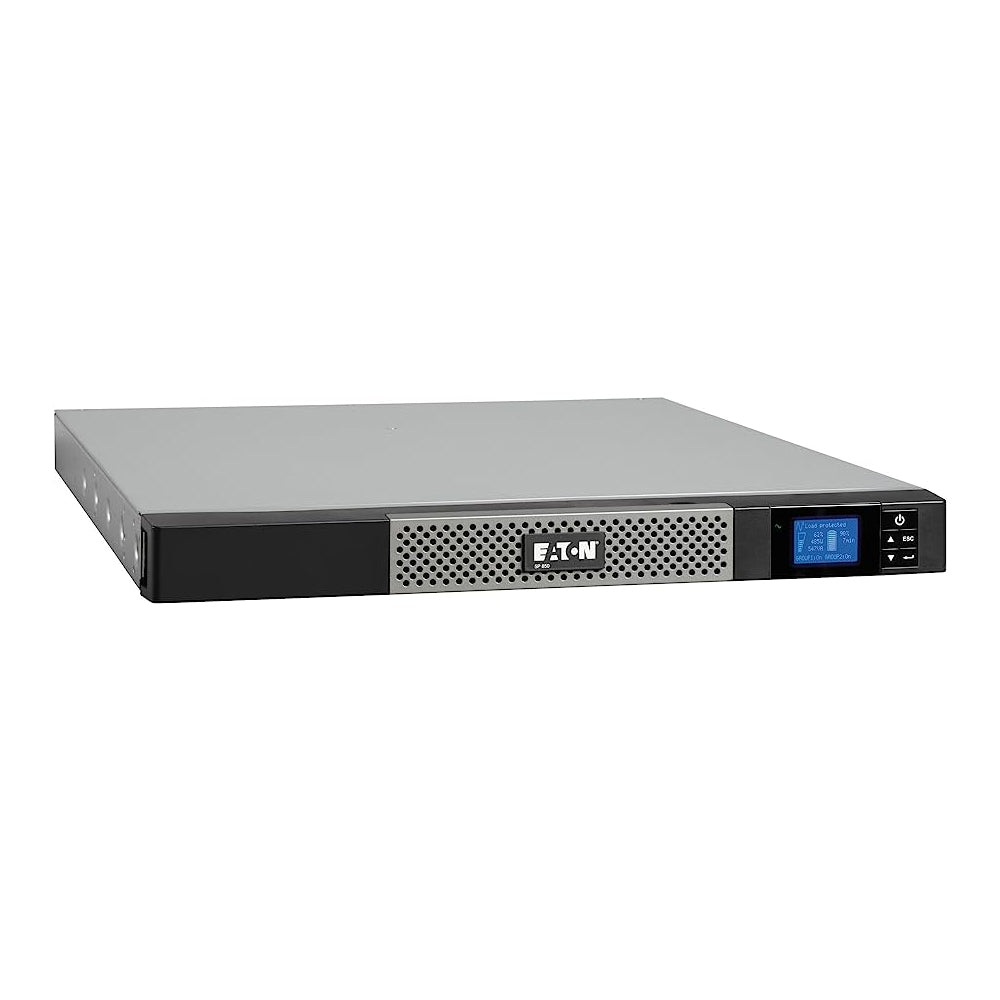

The Eaton 5P delivers dependable line interactive power protection designed for IT and telecom environments, packing density optimised performance of up to 1550VA within a compact 1U rack profile. With 650VA capacity and 420W output, it safeguards connected equipment against power disturbances while offering extensive power management features, including point-to-point as well as network based supervision for complete control over your power infrastructure.
Features:
- Line interactive topology providing reliable voltage regulation
- Density optimised design delivering up to 1550VA in a 1U footprint
- Four C13 output receptacles for connecting critical equipment
- Wide input voltage range of 160-294 V, adjustable down to 150 V-294 V
- User replaceable lead-acid maintenance-free battery
- ABM or constant voltage charging with user selectable modes
- Automatic battery testing with deep discharge protection
- USB HID compliant port and RS232 serial port for communication
- Mini-terminal block enabling remote On/Off and Remote Power Off
- Dry contacts with 2 optocoupler outputs via RJ connector
- One expansion slot available for an optional communication card
- Compatible with Eaton Intelligent Power Manager and Power Protector software
- Auto shutdown function for safe unattended operation
- Quiet operation with noise level below 40 dB at 1 meter
- High efficiency rating of 96
- Includes rack mounting kit and cable locking system
Specifications:
- Product Name: Eaton 5P UPS
- Topology: Line-interactive
- Output Voltage: 230V
- Wattage: 420 W
- Output Voltage Range: 230 V (+6%/-10%)
- Output Frequency: 50/60 Hz
- Output Nominal Voltage: 230V default (200/208/220/230/240V)
- Receptacles: (4) C13
- Phase (Output): 1
- Phase (Input): 1
- Input Connection: C14
- Input Nominal Voltage: 230V default (200/208/220/230/240V)
- Nominal Frequency: 50-60 Hz
- Input Voltage Range: 160-294 V (adjustable to 150 V-294 V)
- Input Frequency Range: 47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode
- Battery Type: Lead-acid maintenance-free (replaceable)
- Battery Replacement: User replaceable
- Battery Quantity: 1
- Battery Rating: 12 V / 9 Ah
- Battery Management: ABM or constant voltage charging method (user selectable), automatic battery test, deep discharge protection
- Extended Battery Capability: No
- Communication: USB port (HID compliant), Serial port (RS232), Mini-terminal block for remote On/Off and Remote Power Off, Dry contacts (2 outputs, optocoupler, RJ)
- Ethernet Interface: No
- Potential Free Switch Contact: Yes
- Expansion Slots: One slot for optional communication card
- Software Compatibility: Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
- Type of Interface: Other
- Altitude: 2000 m
- Noise Level: <40 dB at 1 meter
- Temperature Range: 0-90% non-condensing
- BTU Rating: Online: 85
- Relative Humidity: 0-90% non-condensing
- Form Factor: Rack
- Rack Size: 1U
- Construction Type: 482.6 mm (19 inch) device
- Rack Mounting Kit: Yes
- Auto Shutdown Function: Yes
- Efficiency: 96
- Dimensions: 438 mm (Length/Depth) x 43.2 mm (Height) x 364 mm (Width)
- Weight: 8.6 kg
- Colour: Black/silver
- Enclosure: Black/silver
- Compliances: CE Marked, TUV
- Certifications: IEC/EN 62040-1, UL 1778, IEC/EN 62040-2, CE, EAC, cTUVus
Package Contents:
Rack-mounting kit
Cable locking system
USB cable
Serial cable
(2) IEC-IEC cables
Quickstart guide
Safety instructions
