Description

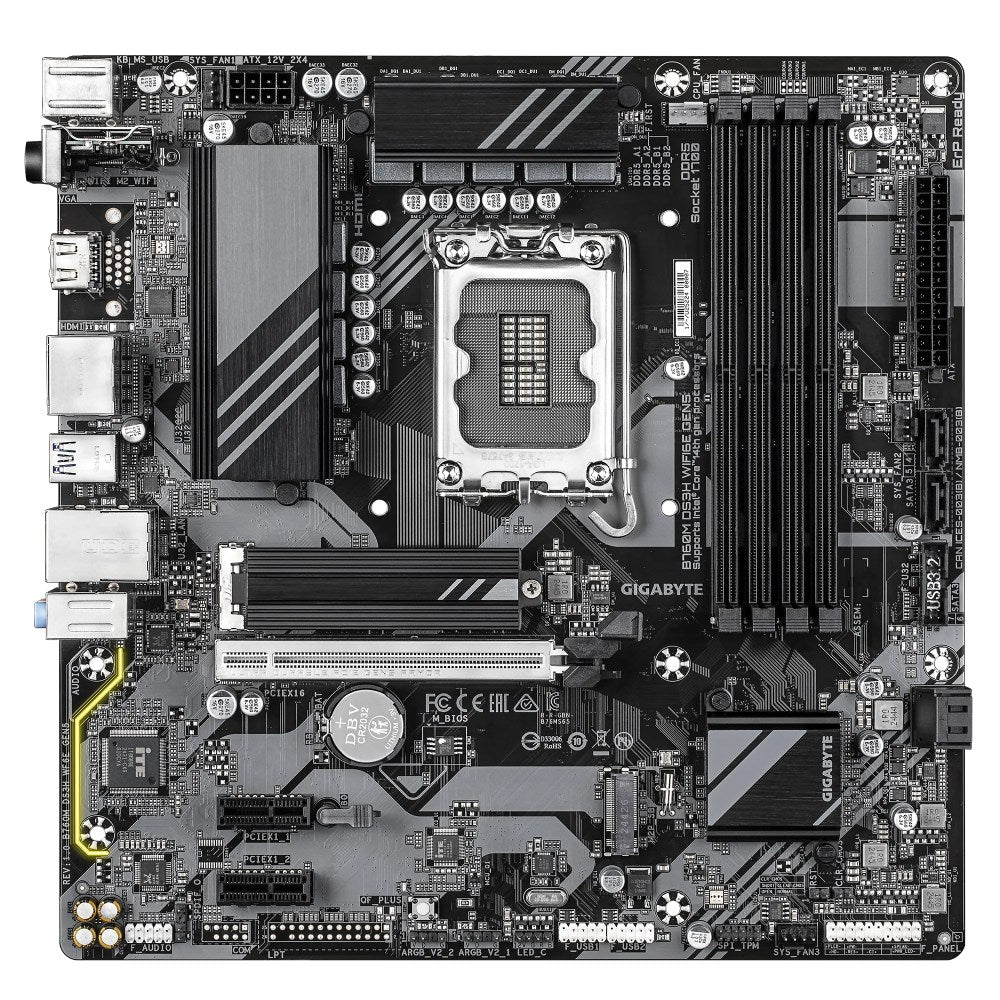

Built with Ultra Durable engineering, the Gigabyte B760M DS3H WIFI6E motherboard supports 14th, 13th and 12th Gen Intel Core processors through the LGA1700 socket, delivering strong PCIe Gen5 performance for demanding builds. A hybrid 6+2+1 phase VRM solution provides unparalleled power delivery, while dual channel DDR5 memory with XMP support keeps the system responsive under load. WIFI EZ-Plug and WIFI Compass make wireless setup simple by auto-detecting the strongest antenna position, and the EZ-Latch PCIe 5.0 x16 slot with SMD PCIe 5.0 Armor offers quick, secure graphics card installation. Fast 2.5GbE LAN and Wi-Fi 802.11ax networking keep connections stable, and next generation storage with dual PCIe 4.0 M.2 connectors provides ample room for expansion.
Features
- Supports 14th, 13th and 12th Gen Intel Core, Pentium Gold and Celeron processors
- PCIe Gen5 performance for fast, synchronised system response
- WIFI EZ-Plug for quick and easy Wi-Fi antenna installation
- WIFI Compass technology that auto-detects the strongest Wi-Fi signal position
- EZ-Latch PCIe 5.0 x16 slot with quick release design
- PCIe UD Slot with SMD PCIe 5.0 Armor for enhanced graphics card support
- Hybrid 6+2+1 phase VRM solution for unparalleled power performance
- Dual channel DDR5 support across 4 DIMMs with XMP memory module support
- Fast 2.5GbE LAN paired with Wi-Fi 802.11ax for reliable networking
- Next generation storage with 2x PCIe 4.0 x4 M.2 connectors
- Extended connectivity with rear USB-C 10Gb/s, DisplayPort and HDMI
- Smart Fan 6 with multiple temperature sensors and hybrid fan headers featuring FAN STOP
- Q-Flash Plus for BIOS updates without installing the CPU, memory or graphics card
Specifications
- Chipset: Intel B760 Express Chipset
- CPU Support: 14th, 13th and 12th Gen Intel Core, Pentium Gold and Celeron, LGA1700
- Memory: 4x DDR5 DIMM, up to 256GB, dual channel, XMP support
- Onboard Graphics: 1x HDMI (4096x2160@60Hz), 2x DisplayPort (4096x2304@60Hz)
- Expansion Slots: 1x PCIe 5.0 x16 (CPU), 2x PCIe 3.0 x1 (Chipset)
- Audio: Realtek Audio CODEC, High Definition Audio, up to 7.1-channel, S/PDIF Out support
- Storage: 2x M.2 (PCIe 4.0 x4/x2), 4x SATA 6Gb/s
- RAID Support: RAID 0, 1, 5 and 10 for SATA storage devices
- USB: 1x USB Type-C (rear, USB 3.2 Gen 2), 5x USB 3.2 Gen 1 (3 rear, 2 via header), 2x USB 2.0/1.1 (rear), 4x USB 2.0/1.1 (via internal headers)
- LAN: Realtek 2.5GbE LAN chip
- Wireless: Intel Wi-Fi 6E AX210, Bluetooth 5.3
- Operating System Support: Windows 11 64-bit, Windows 10 64-bit
- Form Factor: Micro ATX, 24.4cm x 24.4cm
