Description:

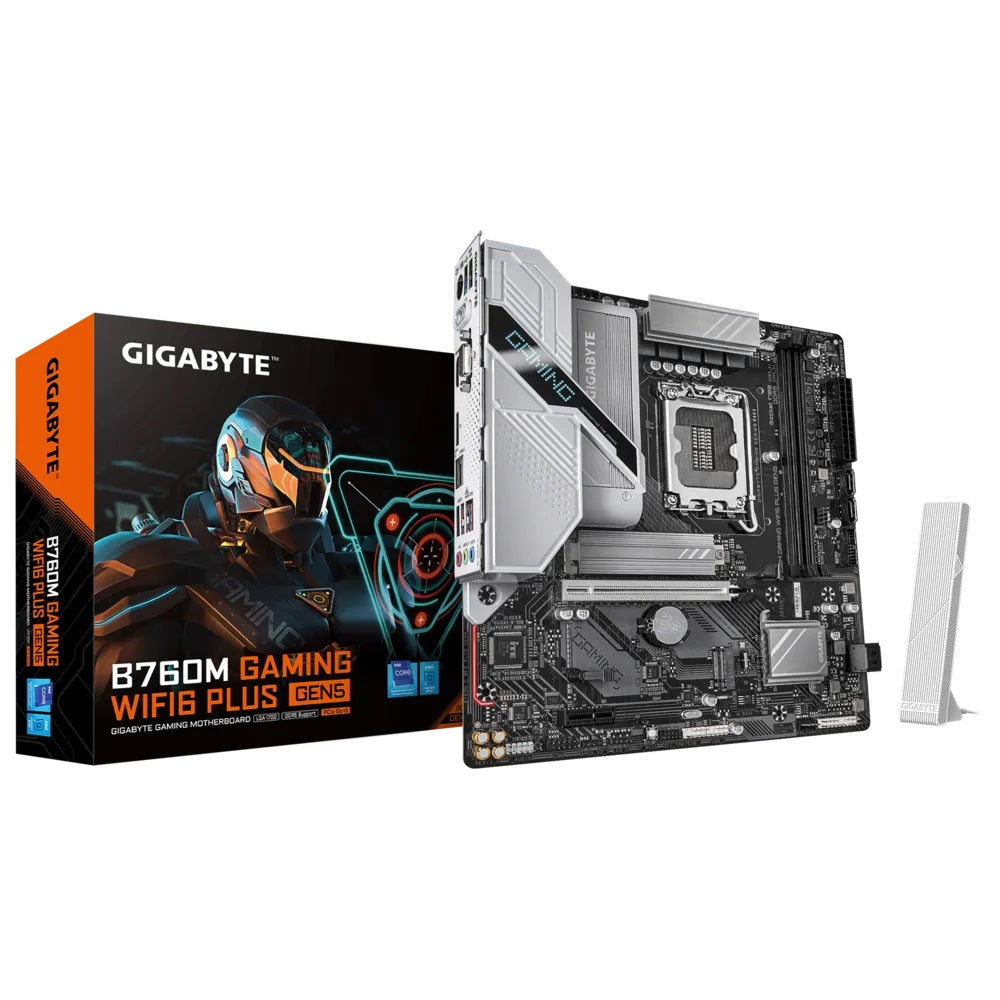

The Gigabyte B760M Gaming WiFi 6 Plus is a Micro-ATX motherboard built on the Intel B760 Express chipset, designed to unlock PCIe Gen5 performance on the current platform, doubling data transfer rates from 16 GT/s to 32 GT/s per lane for graphics cards, storage, and AI accelerators that demand faster throughput. It supports 14th and 13th Gen Intel Core processors through an LGA1700 socket, along with dual-channel DDR5 memory across two DIMM slots offering overclocking support up to extreme speeds. Power delivery comes from a 6+2+1 phase hybrid VRM design built on a 6-layer PCIe 5.0-ready PCB with premium chokes and capacitors, backed by durable VRM heatsinks offering a wide cooling surface for exceptional heat dissipation. Gigabyte's Ultra Durable engineering extends to a reinforced PCIe UD slot with one-piece stainless-steel shielding for stronger shearing and retention performance, plus an upgraded UD power connector with solid pins for improved conductivity and reduced wear. Storage is handled through two PCIe 4.0 M.2 slots and four SATA 6Gb/s connectors with RAID support, while built-in Realtek WiFi 6 and Bluetooth 5.3 provide fast, reliable wireless connectivity out of the box.
Features:
- Reinforced PCIe UD slot with stainless-steel shielding for stronger shearing and retention strength
- UD power connector with solid pins for enhanced conductivity and reduced connection wear
- Massive VRM heatsinks for efficient thermal management under sustained loads
- Dual-channel DDR5 memory support with overclocking up to extreme speeds
- Built-in Realtek WiFi 6 and Bluetooth 5.3 for fast wireless connectivity
Specifications:
- CPU Support: LGA1700 socket, 14th/13th/12th Gen Intel Core, Pentium Gold, Celeron processors
- Chipset: Intel B760 Express
- Memory: 2x DDR5 DIMM slots, dual-channel, up to 128GB total (64GB per DIMM), supports DDR5 speeds up to 8000(OC) MT/s, XMP support
- Onboard Graphics: 1x D-Sub (up to 1920x1200@60Hz), 1x HDMI (up to 4096x2160@60Hz), 1x DisplayPort (up to 4096x2304@60Hz), supports triple display
- Audio: Realtek Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel
- Wireless: Realtek WiFi 6 RTL8851BE, Bluetooth 5.3, supports 11ax 80MHz standard
- Expansion Slots: 1x PCIe 5.0 x16, 1x PCIe 3.0 x1
- Storage Interface: 2x PCIe 4.0 M.2 slots (CPU and chipset), 4x SATA 6Gb/s, RAID 0/1/5/10 support
- USB: 1x USB Type-C 3.2 Gen 1, 5x USB 3.2 Gen 1 (3 rear, 2 internal header), 2x USB 2.0/1.1 rear, 4x USB 2.0/1.1 via internal headers
- Internal I/O Connectors: 24-pin ATX main power, 8-pin ATX 12V power, CPU fan header, 3x system fan headers, 2x addressable RGB Gen2 headers, 1x RGB LED strip header, front panel and audio headers, S/PDIF Out header, USB 3.2 Gen 1 header, 2x USB 2.0/1.1 headers, TPM header, serial port header, Q-Flash Plus button, reset and Clear CMOS jumpers
- Back Panel Connectors: 2x USB 2.0/1.1, 1x PS/2 keyboard/mouse port, 2x antenna connectors, D-Sub, HDMI, DisplayPort, 3x USB 3.2 Gen 1, 1x USB Type-C 3.2 Gen 1, 1x RJ-45, 3x audio jacks
- I/O Controller: iTE I/O Controller Chip
- H/W Monitoring: Voltage, temperature, fan speed detection, water cooling flow rate detection, fan fail warning, fan speed control
- BIOS: 128Mbit flash, licensed AMI UEFI BIOS
- Unique Features: GIGABYTE Control Center, Q-Flash, Q-Flash Plus, Smart Backup support
- Bundled Software: Norton Internet Security (OEM version)
- Operating System Support: Windows 11 64-bit, Windows 10 64-bit
- Form Factor: Micro ATX, 24.4cm x 22.5cm
