Description

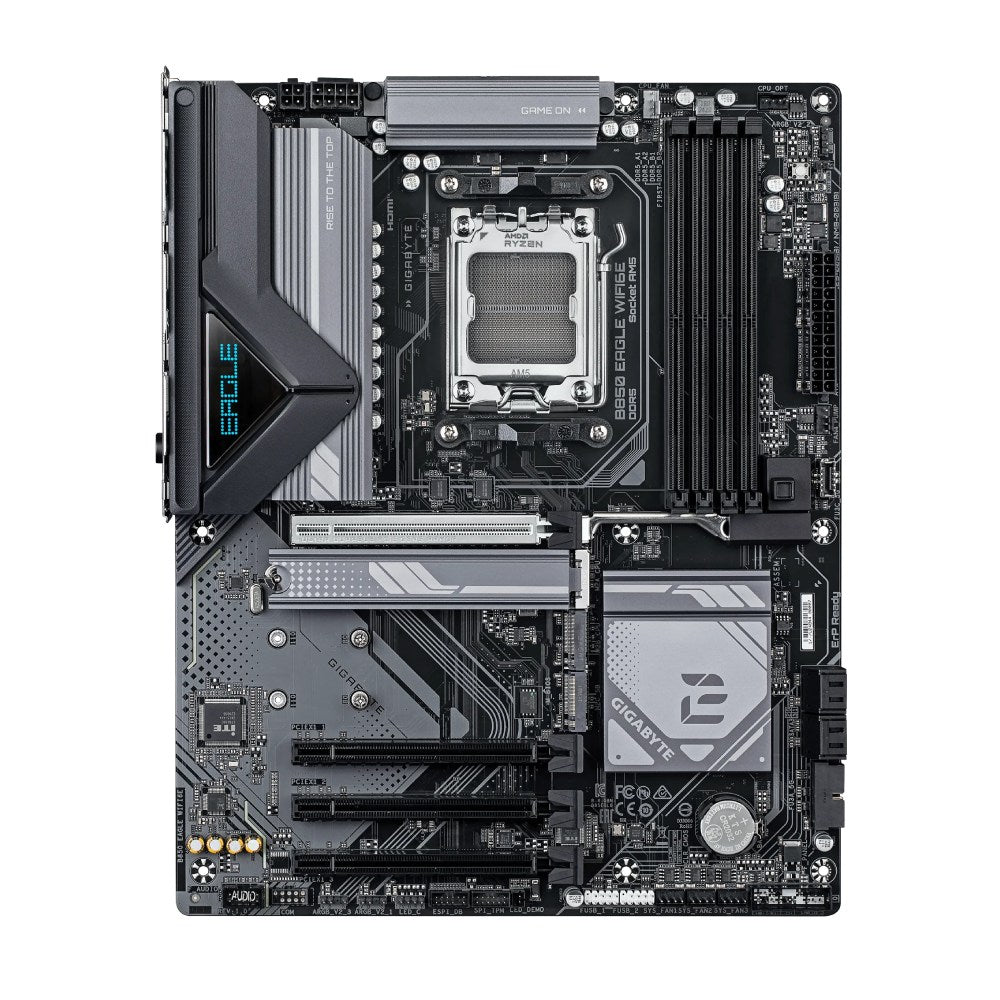

Build a powerful AM5 gaming and productivity system with the GIGABYTE B850 EAGLE WiFi 6E ATX motherboard. Designed for AMD Ryzen 9000/8000/7000 Series processors, this board features dual channel DDR5 memory support up to 8200MHz(OC) with AMD EXPO and Intel XMP compatibility for easy overclocking. With triple M.2 storage connectors, integrated Wi-Fi 6E and dual wireless module options, fast USB 3.2 Gen 2 connectivity and GIGABYTE's Q-Flash Plus BIOS update tool, the B850 EAGLE WiFi 6E offers robust performance, storage flexibility and networking for a full-size ATX build.
Key Features
- Supports AMD Ryzen 9000, 8000 and 7000 Series processors on AM5 socket
- Dual channel DDR5, 4 DIMM sockets supporting up to 256GB system memory
- Memory overclocking up to 8200MHz(OC) with AMD EXPO and Intel XMP support
- Triple M.2 connectors with support for PCIe 5.0/4.0 x4/x2 SSDs
- 4 x SATA 6Gb/s connectors with RAID 0, RAID 1, RAID 5 and RAID 10 support
- Integrated Wi-Fi 6E and Bluetooth 5.3 wireless connectivity
- Realtek GbE LAN for stable networking
- USB Type-C and USB 3.2 Gen 2 Type-A ports for fast data transfer
- Q-Flash Plus for updating BIOS without installing CPU, memory or graphics card
- Smart Backup support for added data protection
- Addressable RGB Gen2 and RGB LED strip headers for customisable lighting
- ATX form factor for full-size system builds
Specifications
General
- Chipset: AMD B850
- Socket: AM5
- Form Factor: ATX, 30.5cm x 24.4cm
- I/O Controller: iTE I/O Controller Chip
- BIOS: 1 x 256 Mbit flash, licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
CPU Support
- AMD Socket AM5, supports AMD Ryzen 9000 Series, Ryzen 8000 Series, and Ryzen 7000 Series Processors
Memory
- Support for DDR5 8200(OC)/8000(OC)/7950(OC)/7900(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
- 4 x DDR5 DIMM sockets supporting up to 256GB (64GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for AMD EXPO and Intel XMP memory modules
Onboard Graphics
- Integrated Graphics Processor with AMD Radeon Graphics support
- 1 x DisplayPort, supporting up to 3840x2160@144Hz, DisplayPort 1.4
- 1 x HDMI port, supporting up to 4096x2160@60Hz, HDMI 2.1, HDCP 2.3 and HDR
- Graphics specifications may vary depending on CPU support
Audio
- Realtek Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel support
LAN
- Realtek GbE LAN chip (1Gbps/100Mbps/10Mbps)
Wireless Communication
- Intel Wi-Fi 6E AX210 (PCB rev. 1.0) or Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.1)
- WiFi a, b, g, n, ac, ax, supporting 2.4/5/6GHz carrier frequency bands
- Bluetooth 5.3
- Support for 11ax 160MHz wireless standard
Expansion Slots
- 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU
- AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
- 3 x PCI Express x16 slots (Chipset), supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2, PCIEX1_3)
Storage Interface
- 1 x M.2 connector (M2A_CPU), integrated in the CPU, Socket 3, M key, type 22110/2280
- Supports PCIe 5.0/4.0 x4/x2 SSDs depending on CPU series
- 1 x M.2 connector (M2B_CPU), integrated in the CPU, Socket 3, M key, type 22110/2280
- Supports PCIe 4.0 x4/x2 SSDs depending on CPU series
- 1 x M.2 connector (M2C_SB), integrated in the Chipset, Socket 3, M key, type 22110/2280, PCIe 4.0 x2 SSDs
- 4 x SATA 6Gb/s connectors
- RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices (RAID 5 only on Ryzen 9000 Series)
- RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB Connectivity
- CPU: 1 x USB Type-C port on the back panel with USB 3.2 Gen 1 support
- CPU: 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- Chipset: 1 x USB Type-C port with USB 3.2 Gen 1 support (internal header)
- Chipset: 4 x USB 3.2 Gen 1 ports (2 back panel, 2 internal header)
- Chipset: 4 x USB 2.0/1.1 ports on the back panel
- Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through internal USB headers
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x 4-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x CPU fan/water cooling pump header
- 3 x system fan headers
- 1 x system fan/water cooling pump header
- 3 x addressable RGB Gen2 LED strip headers
- 1 x RGB LED strip header
- 3 x M.2 Socket 3 connectors
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB Type-C header with USB 3.2 Gen 1 support
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header (for GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
- 1 x reset button
- 1 x reset jumper
- 1 x Clear CMOS jumper
Back Panel Connectors
- 1 x DisplayPort
- 1 x HDMI port
- 1 x Q-Flash Plus button
- 4 x USB 2.0/1.1 ports
- 1 x PS/2 keyboard/mouse port
- 2 x USB 3.2 Gen 2 Type-A ports (red)
- 1 x USB Type-C port with USB 3.2 Gen 1 support
- 1 x RJ-45 port
- 2 x USB 3.2 Gen 1 ports
- 2 x antenna connectors (2T2R)
- 3 x audio jacks
H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Fan fail warning
- Fan speed control
Unique Features
- Support for GIGABYTE Control Center (GCC)
- Support for Q-Flash
- Support for Q-Flash Plus
- Support for Smart Backup
Bundled Software
- Norton Internet Security (OEM version)
- LAN bandwidth management software
Operating System Support
- Windows 11 64-bit
- Windows 10 64-bit
