Description

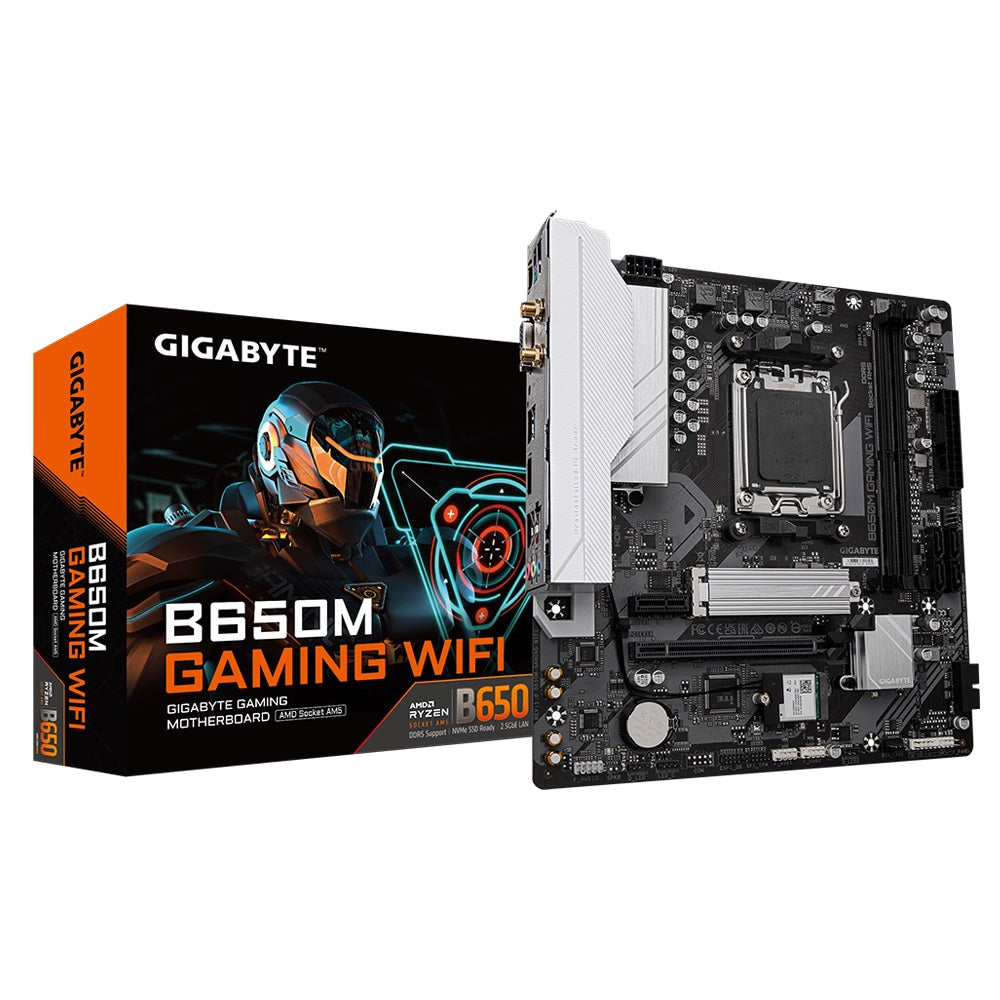

Build a reliable AM5 gaming system with the GIGABYTE B650M Gaming WiFi micro ATX motherboard. Designed for AMD Ryzen 7000/8000 Series processors, this board features a 5+2+2 phase digital VRM solution for stable power delivery, along with dual channel DDR5 memory support and AMD EXPO/Intel XMP compatibility for easy overclocking. With PCIe 4.0 x4 M.2 storage, 2.5GbE LAN, HDMI and D-sub display outputs, and GIGABYTE's Smart Fan 6 cooling control, the B650M Gaming WiFi delivers solid performance and connectivity for a micro ATX build.
Key Features
- Supports AMD Ryzen 7000 and Ryzen 8000 Series processors on AM5 socket
- 5+2+2 phases digital VRM solution for stable power delivery
- Dual channel DDR5, 2 SMD DIMMs, with AMD EXPO and Intel XMP memory module support
- SuperSpeed Storage: PCIe 4.0 x4 M.2 connector
- EZ-Latch PCIe x16 slot with quick release design
- Fast networking with 2.5GbE LAN
- Extended connectivity with HDMI and D-sub outputs
- Smart Fan 6 with multiple temperature sensors and hybrid fan headers, including Fan Stop
- Q-Flash Plus for updating BIOS without installing CPU, memory or graphics card
- Hi-Fi Audio with 8-channel HD audio, audio noise guard and high-end audio capacitor
- RGB Fusion with addressable LED and RGB LED headers
- Micro ATX form factor for versatile system builds
Specifications
General
- Chipset: AMD B650
- Socket: AM5
- Form Factor: Micro ATX, 24.0cm x 22.5cm
- I/O Controller: iTE I/O Controller Chip
- BIOS: 1 x 256 Mbit flash, licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
CPU Support
- AMD Socket AM5, supports AMD Ryzen 7000 / Ryzen 8000 Series Processors
Memory
- Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
- 2 x DDR5 DIMM sockets supporting up to 96GB (48GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for AMD EXPO and Intel XMP memory modules
Onboard Graphics
- Integrated Graphics Processor with AMD Radeon Graphics support
- 1 x D-Sub port, supporting up to 1920x1200@60Hz
- 1 x HDMI port, supporting up to 4096x2160@60Hz, HDMI 2.1 and HDCP 2.3
- Graphics specifications may vary depending on CPU support
Audio
- Realtek Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel support
LAN
- Realtek 2.5GbE LAN chip (2.5Gbps/1Gbps/100Mbps)
Wireless Communication
- AzureWave Wi-Fi AW-CB304NF (Realtek RTL8821CE)
- WiFi 802.11 a, b, g, n, ac, supporting 2.4/5GHz Dual-Band
- Bluetooth 4.2
- Support for 11ac wireless standard
Expansion Slots
- 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU
- AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
- 1 x PCI Express x1 slot (Chipset), supporting PCIe 3.0 and running at x1
Storage Interface
- 1 x M.2 connector, integrated in the CPU, Socket 3, M key, type 2280
- Support for PCIe 4.0 x4/x2 SSDs (varies by CPU series)
- 4 x SATA 6Gb/s connectors
- RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
- RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB Connectivity
- CPU: 2 x USB 3.2 Gen 1 ports on the back panel
- CPU: 1 x USB 2.0/1.1 port on the back panel
- Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header
- Chipset: 5 x USB 2.0/1.1 ports (3 back panel, 2 internal header)
- Chipset+USB 2.0 Hub: 2 x USB 2.0/1.1 ports available through the internal USB header
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 2 x system fan headers
- 2 x addressable LED strip headers
- 1 x RGB LED strip header
- 1 x M.2 Socket 3 connector
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header (for GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
- 1 x Clear CMOS jumper
Back Panel Connectors
- 4 x USB 2.0/1.1 ports
- 1 x PS/2 keyboard/mouse port
- 1 x D-Sub port
- 1 x Q-Flash Plus button
- 2 x USB 3.2 Gen 1 ports
- 1 x HDMI port
- 1 x RJ-45 port
- 3 x audio jacks
H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Fan fail warning
- Fan speed control
Unique Features
- Support for GIGABYTE Control Center (GCC)
- Support for Q-Flash
- Support for Q-Flash Plus
Bundled Software
- Norton Internet Security (OEM version)
- LAN bandwidth management software
Operating System Support
- Windows 11 64-bit
- Windows 10 64-bit
