Description

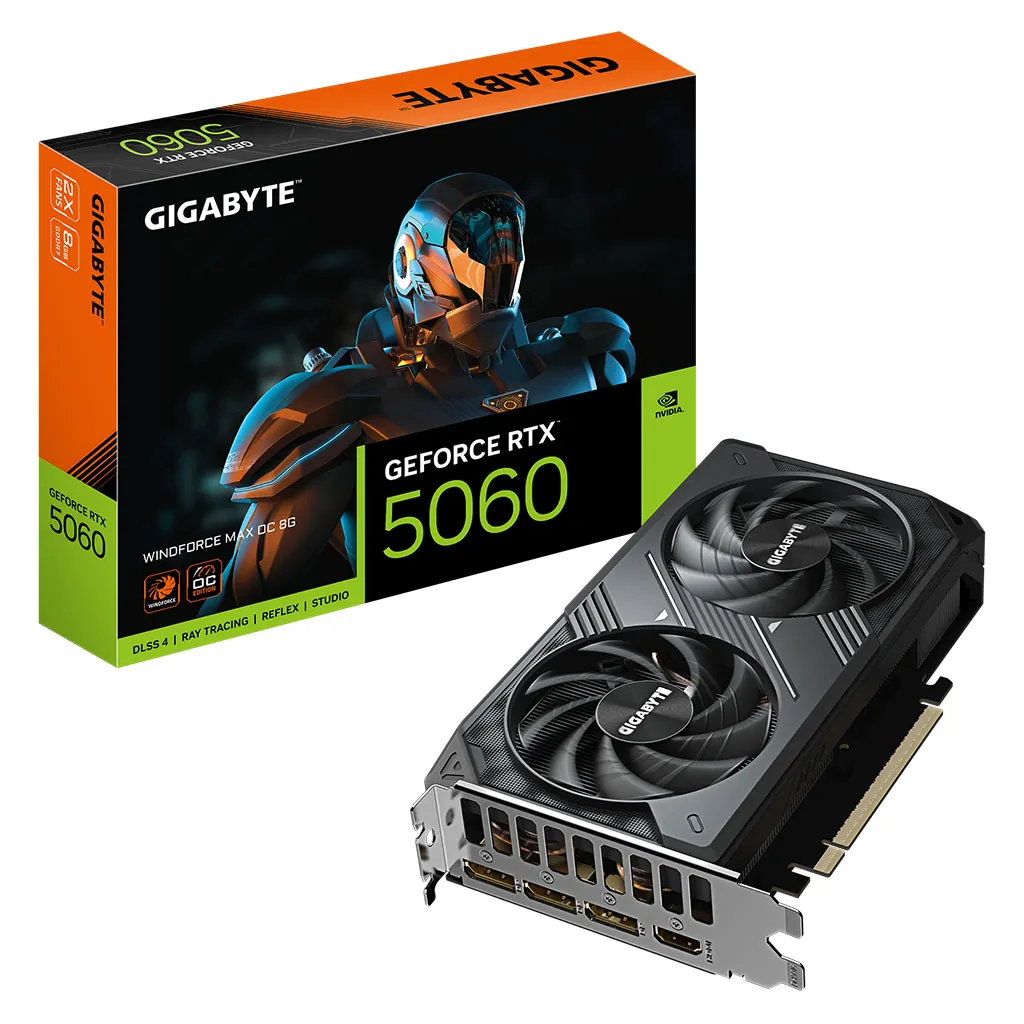

The Gigabyte GeForce RTX 5060 WINDFORCE 2 MAX OC pairs a dual-fan cooling setup with an alternate spinning design, reducing turbulence between the fans and boosting overall airflow pressure. Its 3D Active Fan system keeps the fans off entirely during low-load or low-power gaming, giving quieter operation when full cooling isn't needed. Inside, a copper plate makes direct contact with the GPU, working with composite copper heat pipes to move heat away from the GPU and VRAM quickly, while server-grade thermal conductive gel improves contact on uneven surfaces and resists deformation over time, unlike standard thermal pads. An extended heatsink enables screen cooling, letting air pass through for improved heat dissipation. The card is built around lower RDS(on) MOSFETs for faster switching at low temperatures, metal chokes that reduce core energy loss and EMI interference, and lower ESR solid capacitors for longer-lasting electronic conductivity. A reinforced backplate with a bent edge, fastened securely to the I/O bracket, adds structural rigidity, while the friendly PCB design removes sharp solder protrusions to prevent cuts during installation. Gigabyte Control Center software brings clock speed, voltage, fan mode, and power target adjustment together in one interface, alongside RGB fusion and keyboard tool integration.
Features
- Alternate spinning dual fans reduce turbulence and boost airflow pressure
- 3D Active Fan semi-passive cooling turns fans off during low load
- Copper plate with composite copper heat pipe for fast heat transfer
- Server-grade thermal conductive gel for improved surface contact
- Screen cooling design for better heat dissipation
- Lower RDS(on) MOSFETs for efficient switching at low temperatures
- Metal chokes reduce core energy loss and EMI interference
- Lower ESR solid capacitors for longer lifespan
- Reinforced backplate with bent edge for structural integrity
- Friendly PCB design prevents cuts during installation
- Gigabyte Control Center software for real-time clock, voltage and fan control
Specifications
- Core Clock: 2512 MHz (Reference card: 2497 MHz)
- CUDA Cores: 3840
- Memory Clock: 28 Gbps
- Memory Size: 8GB
- Memory Type: GDDR7
- Memory Bus: 128-bit
- Card Bus: PCI-E 5.0
- Digital Max Resolution: 7680 x 4320
- Multi-view: 4
- Card Size: L=199 W=116 H=40mm
- PCB Form: ATX
- DirectX: DirectX 12 API
- OpenGL: 4.6
- Recommended PSU: 550W
- Power Connectors: 1 x 8-pin
- Output: 3 x DisplayPort 2.1b, 1 x HDMI 2.1b
- Accessories: Quick guide
