Description

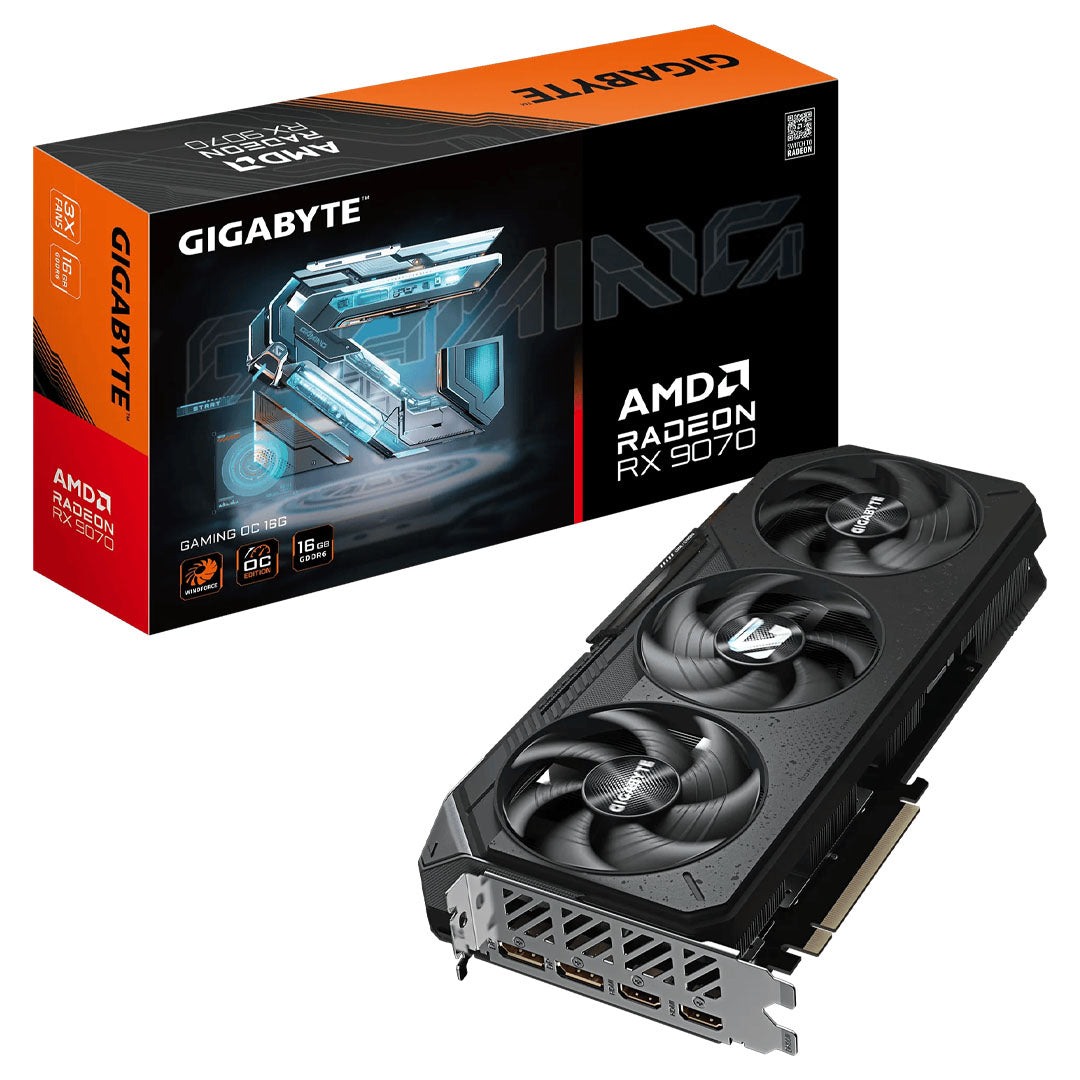

The GIGABYTE Radeon RX 9070 GAMING OC is powered by the AMD Radeon RX 9070 GPU with 3584 stream processors (56 CU) and integrated with 16GB GDDR6 memory across a 256-bit interface, running at a memory clock of 20 Gbps. Connecting via a PCIe 5.0 card bus on an ATX PCB form, the card supports DirectX 12 API and OpenGL 4.6, delivering a digital max resolution of 7680 x 4320 across up to four displays simultaneously. Outputs include three DisplayPort 2.1a connections and one HDMI 2.1b connection. The card features GIGABYTE's WINDFORCE cooling system, combining a large vapour chamber, composite copper heat pipes, server-grade thermal conductive gel, and the Hawk Fan design with alternate spinning and 3D Active Fan technology for reduced turbulence and semi-passive cooling at low loads. Graphene nano lubricant extends fan bearing life, whilst a reinforced metal backplate strengthens the card's overall structural integrity. The card supports customisable RGB lighting with 16.7M colour options via GIGABYTE CONTROL CENTER, and offers a Dual BIOS switch between Performance and Silent modes. Card dimensions are 288mm (L) x 132mm (W) x 50mm (H), and the recommended power supply is 750W with two 8-pin power connectors required.
Features
- Powered by AMD Radeon RX 9070 GPU with 3584 stream processors (56 CU)
- 16GB GDDR6 memory with 256-bit interface and 20 Gbps memory clock
- WINDFORCE cooling system with large vapour chamber and composite copper heat pipes
- Hawk Fan design with alternate spinning and 3D Active semi-passive fan control
- Server-grade thermal conductive gel for optimal contact on VRAM and MOSFETs
- Graphene nano lubricant for extended fan bearing life
- Customisable RGB lighting with 16.7M colours via GIGABYTE CONTROL CENTER
- Dual BIOS with switchable Performance and Silent modes
- Reinforced metal backplate for added structural strength
- Supports up to 4 displays at max resolution of 7680 x 4320
- PCIe 5.0 card bus, DirectX 12 API and OpenGL 4.6 support
Specifications
- Graphics Processing: Radeon RX 9070
- Stream Processors: 3584 (56 CU)
- Memory Clock: 20 Gbps
- Memory Size: 16GB
- Memory Type: GDDR6
- Memory Bus: 256-bit
- Card Bus: PCIe 5.0
- Digital Max Resolution: 7680 x 4320
- Multi-View: 4
- Card Size: L=288 W=132 H=50mm
- PCB Form: ATX
- DirectX: DirectX 12 API
- OpenGL: OpenGL 4.6
- Recommended PSU: 750W
- Power Connectors: 8-pin x 2
- Output: 3 x DisplayPort 2.1a, 1 x HDMI 2.1b
