Description:

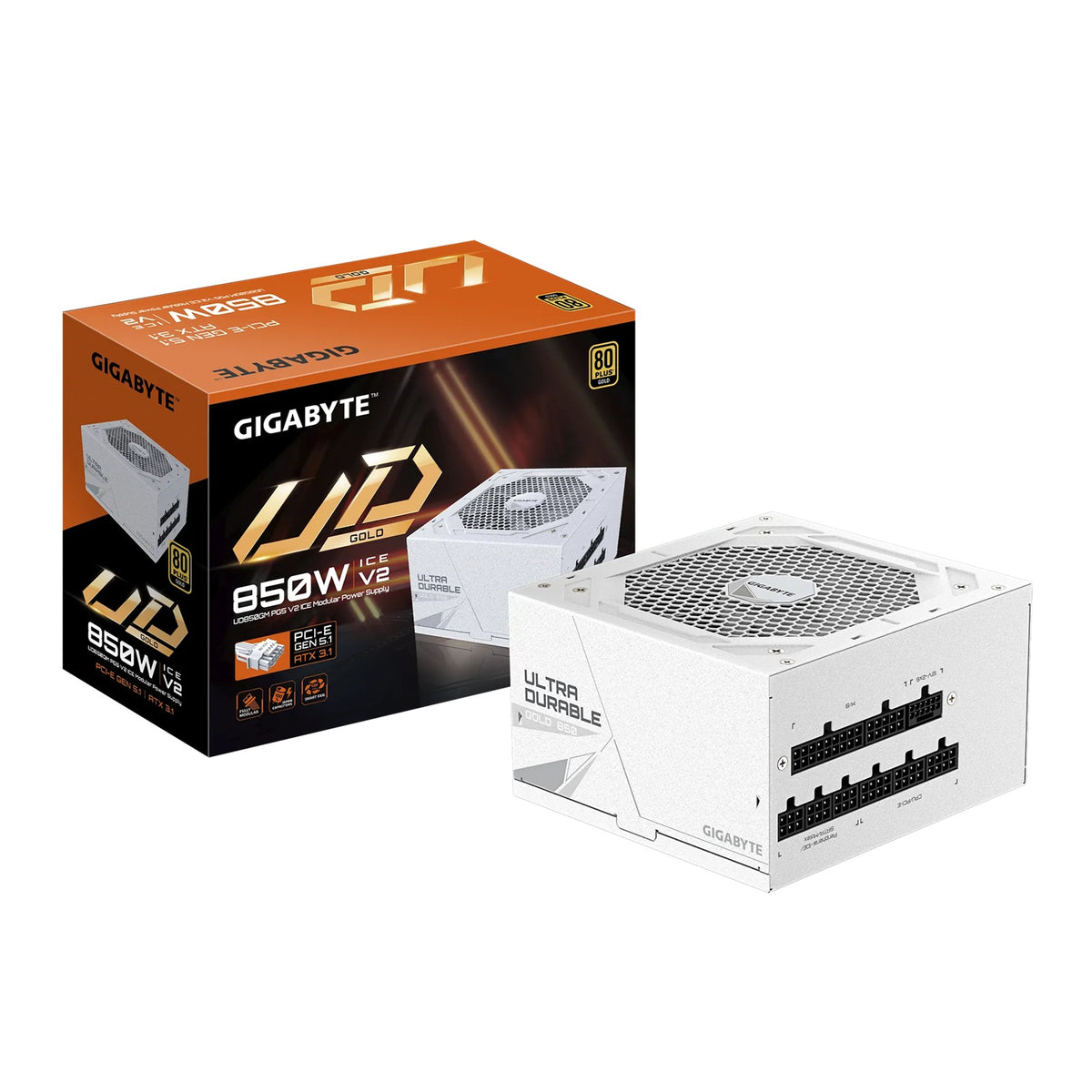

This Gigabyte 850W ATX power supply unit delivers strong, efficient power for demanding PC builds with 80 PLUS Gold efficiency and a 120mm Hydraulic Bearing (HYB) fan. It follows the Intel ATX 12V form factor, accepts a full-range 100-240 Vac input and uses active PFC, reaching 90% efficiency at typical load. Multiple protection circuits safeguard your components, and flat, all-black cables make routing and cable management easier. With an MTBF of over 100,000 hours, it is built for long-lasting performance.
Features:
- 850W output capacity
- 80 PLUS Gold efficiency
- Active PFC
- 120mm Hydraulic Bearing (HYB) fan
- Full-range input voltage
- Flat, all-black cables
- OVP, OPP, SCP, UVP, OCP and OTP protection
- MTBF of over 100,000 hours
Specifications:
- Brand: Gigabyte
- Type: Intel Form Factor ATX 12V
- Input Voltage: 100-240 Vac
- Input Current: 12-6A
- Input Frequency: 60-50 Hz
- Efficiency: 90% at typical load
- PFC: Active PFC (over 0.9 typical)
- Dimension: 150 x 140 x 86 mm
- Power Good Signal: 100-150ms
- Hold Up Time: Over 16ms
- Connectors:
- ATX/MB 20+4 Pin x 1: 610mm x 1
- CPU/EPS 4+4 Pin x 2: 600mm + 200mm x 1
- PCI-e 12+4 Pin x 1: 700mm x 1
- PCI-e 6+2 Pin x 4: 600mm + 150mm x 2
- SATA x 8: 600mm + 150mm + 150mm + 150mm x 2
- 4 Pin Peripheral x 3 + 4-Pin Floppy x 1: 500mm + 120mm + 120mm + 150mm x 1
Package Contents:
