Description

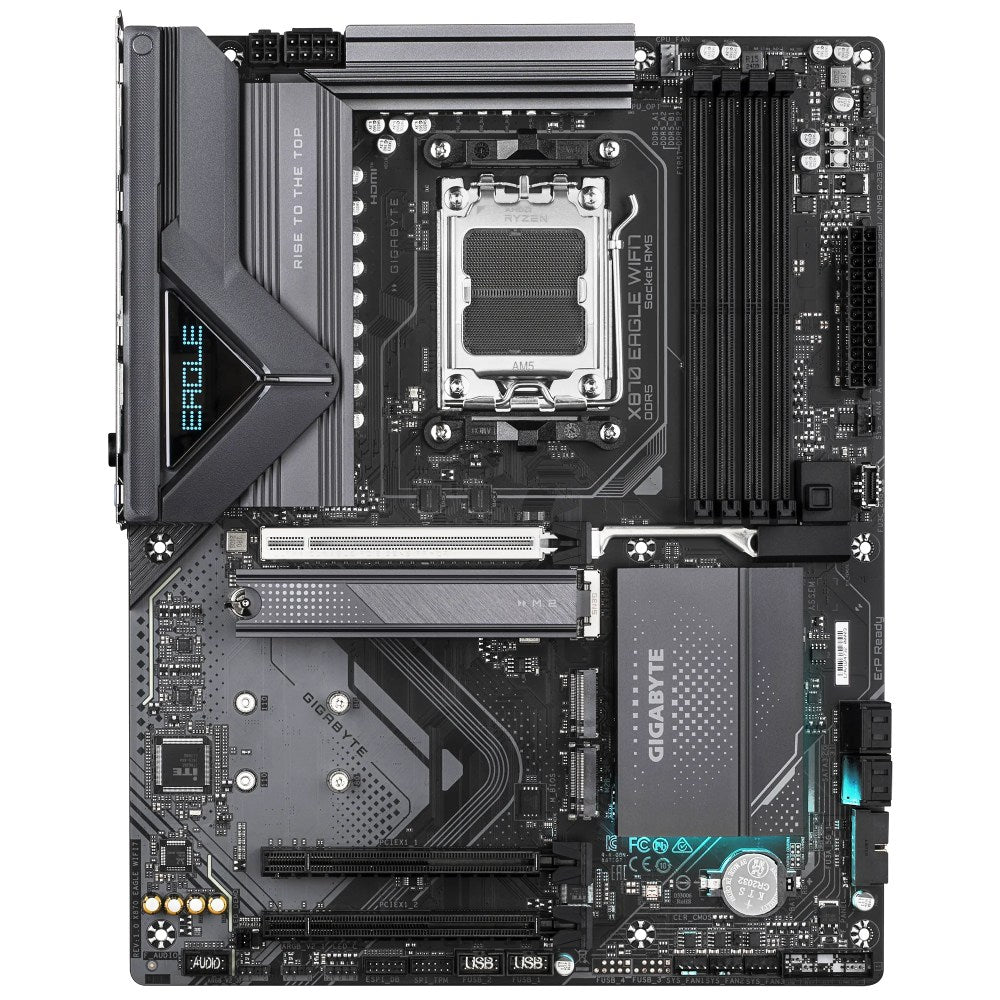

The GIGABYTE X870 EAGLE WIFI7 is built on the AMD X870 chipset with AM5 socket support for AMD Ryzen 9000, 8000 and 7000 Series processors. It pairs DDR5 memory support with integrated AMD Radeon graphics, USB4 connectivity, WiFi 7 wireless and dual M.2 storage options in an ATX form factor, giving builders a well-rounded feature set for a modern AMD desktop platform.
Features
- Supports AMD Ryzen 9000, 8000 and 7000 Series processors on AM5 socket
- 4 x DDR5 DIMM sockets supporting up to 256GB with dual channel architecture
- Supports AMD EXPO and Extreme Memory Profile (XMP) for memory overclocking
- Integrated AMD Radeon Graphics with USB4 and DisplayPort video output
- WiFi 7 wireless communication module with Bluetooth 5.4
- Realtek 2.5GbE LAN chip for fast wired networking
- PCIe 5.0 x16 slot support (CPU-dependent) for graphics card or NVMe SSD
- 3 x M.2 Socket 3 connectors with PCIe 5.0/4.0 x4/x2 support
- 4 x SATA 6Gb/s connectors with RAID 0/1/5/10 support
- USB4 Type-C ports on the back panel
- GIGABYTE Control Center (GCC) with Q-Flash, Q-Flash Plus and Smart Backup support
Specifications
Processor Support
- AMD Socket AM5
- Supports AMD Ryzen 9000 Series Processors
- Supports AMD Ryzen 8000 Series Processors
- Supports AMD Ryzen 7000 Series Processors
Chipset
- AMD X870
Memory
- Supports DDR5 8200(OC)/8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
- 4 x DDR5 DIMM sockets supporting up to 256GB (64GB single DIMM capacity)
- Dual channel memory architecture
- Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Supports AMD EXPO and Extreme Memory Profile (XMP)
Onboard Graphics
- Integrated Graphics Processor with AMD Radeon Graphics support + ASMedia USB4 Controller
- 2 x USB4 USB Type-C ports supporting USB4 and DisplayPort, max resolution 3840x2160@240Hz
- Integrated Graphics Processor with AMD Radeon Graphics support
- 1 x HDMI port supporting max resolution 4096x2160@60Hz
Audio
- Realtek Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
LAN
- Realtek 2.5GbE LAN chip (2.5Gbps/1Gbps/100Mbps)
Wireless Communication Module
- MediaTek WiFi 7 MT7925 (PCB rev. 1.0) or Realtek WiFi 7 RTL8922AE (PCB rev. 1.1)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- Bluetooth 5.4
- Support for 11be 160MHz wireless standard
Expansion Slots
- 1 x PCI Express x16 slot (PCIEX16)
- AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
- 2 x PCI Express x16 slots (Chipset), supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
Storage Interface
- 1 x M.2 connector (M2A_CPU), integrated in the CPU, Socket 3, M key, type 25110/22110/2580/22280
- AMD Ryzen 9000/7000 Series: PCIe 5.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 1: PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 2: PCIe 4.0 x4/x2 SSDs
- 1 x M.2 connector (M2C_SB), integrated in the Chipset, Socket 3, M key, type 25110/22110/2580/22280, PCIe 4.0 x2 SSDs
- 1 x M.2 connector (M2B_SB), integrated in the Chipset, Socket 3, M key, type 25110/22110/2580/22280, PCIe 4.0 x4/x2 SSDs
- 4 x SATA 6Gb/s connectors
- RAID 0, RAID 1, RAID 5 and RAID 10 support for NVMe SSD storage devices
- RAID 0, RAID 1 and RAID 10 support for SATA storage devices
USB
- CPU+ASMedia USB4 controller: 2 x USB4 USB Type-C ports on back panel
- CPU: 1 x USB 3.2 Gen 2 Type-A port (red), 1 x USB 3.2 Gen 1 port on back panel
- CPU+USB 2.0 Hub: 4 x USB 2.0/1.1 ports on back panel
- Chipset: 1 x USB Type-C port with USB 3.2 Gen 2x2 support (internal header)
- Chipset: 4 x USB 3.2 Gen 1 ports (2 on back panel, 2 via internal header)
- Chipset: 4 x USB 2.0/1.1 ports via internal headers
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x 4-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x CPU fan/water cooling pump header
- 4 x system fan headers
- 3 x addressable RGB Gen2 LED strip headers
- 1 x RGB LED strip header
- 4 x SATA 6Gb/s connectors
- 3 x M.2 Socket 3 connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB Type-C header with USB 3.2 Gen 2x2 support
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header
- 1 x power button
- 1 x reset button
- 1 x reset jumper
- 1 x Clear CMOS jumper
Back Panel Connectors
- 1 x Q-Flash Plus button
- 2 x antenna connectors (2T2R)
- 1 x HDMI port
- 2 x USB4 USB Type-C ports (DisplayPort)
- 1 x USB 3.2 Gen 2 Type-A port (red)
- 3 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks
I/O Controller
- iTE I/O Controller Chip
H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Fan fail warning
- Fan speed control
BIOS
- 1 x 256 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
- Support for GIGABYTE Control Center (GCC)
- Support for Q-Flash
- Support for Q-Flash Plus
- Support for Smart Backup
Bundled Software
- Norton Internet Security (OEM version)
- LAN bandwidth management software
Operating System
- Support for Windows 11 64-bit
Form Factor
- ATX Form Factor
- 30.5cm x 24.4cm
