Description

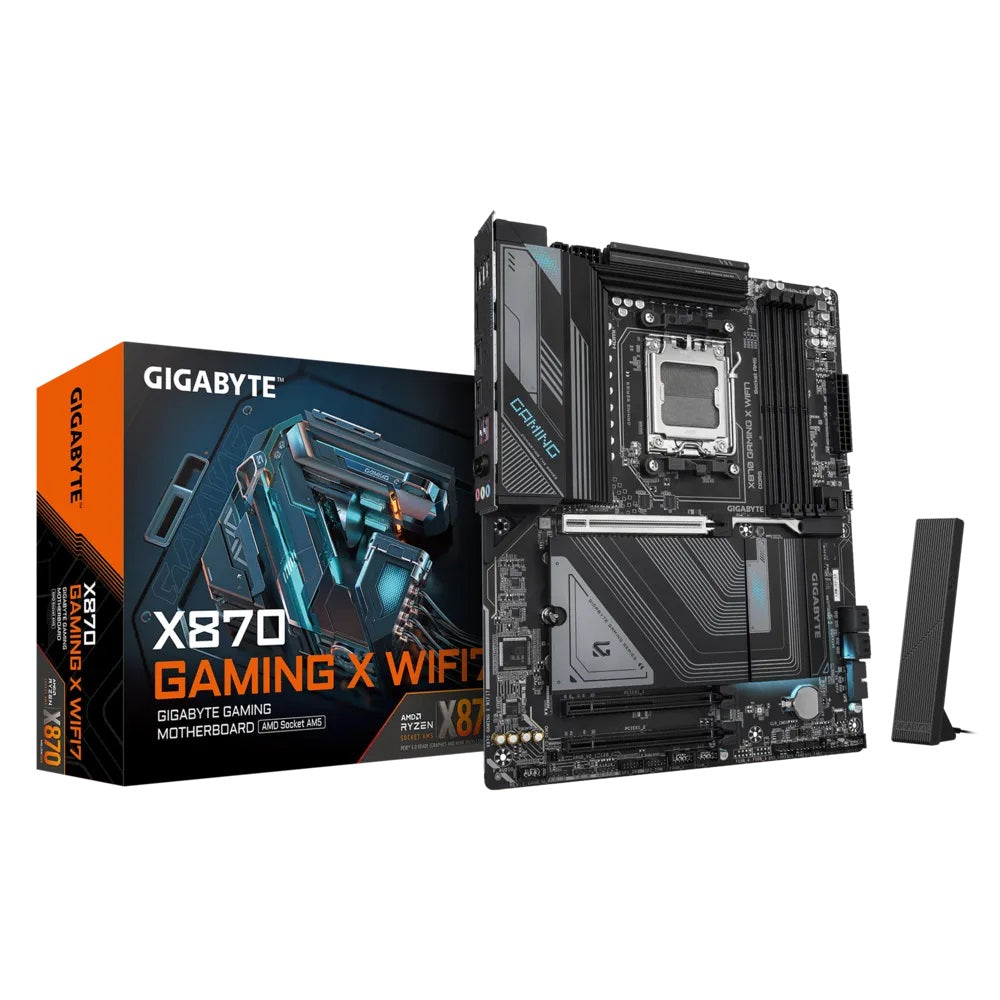

Built on the AMD X870 chipset, this AM5 ATX motherboard is engineered to support AMD Ryzen 9000, 8000, and 7000 series processors, offering a flexible platform for modern desktop builds. It combines high-speed DDR5 memory support, PCIe 5.0 connectivity, and next-generation USB4 ports with dual Wi-Fi 7 wireless module options, giving users a fast, future-ready foundation for gaming and everyday computing. With multiple NVMe storage options, extensive fan and RGB headers, and integrated AMD Radeon graphics output, the board is designed to handle demanding workloads while keeping system monitoring and expansion straightforward.
Features
- AMD Socket AM5 platform supporting AMD Ryzen 9000, 8000, and 7000 series processors
- AMD X870 chipset for a stable, high-performance platform
- Dual channel DDR5 memory architecture with support for AMD EXPO and Intel XMP overclocking profiles
- Integrated AMD Radeon Graphics Processor with USB4 and HDMI video output support
- Dual Wi-Fi 7 module compatibility (MediaTek MT7925 or Realtek RTL8922AE) with Bluetooth 5.4
- PCIe 5.0 x16 slot integrated in the CPU for high-bandwidth graphics or NVMe SSD installation
- Triple M.2 connectors with support for PCIe 5.0/4.0 x4/x2 SSDs
- RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe storage devices
- USB4 Type-C ports supporting USB4 and DisplayPort video output
- Q-Flash and Q-Flash Plus support for convenient BIOS updates
- Smart Backup functionality for data protection
- Comprehensive hardware monitoring including voltage, temperature, fan speed, and water cooling flow rate detection
Specifications
CPU
- AMD Socket AM5, supports AMD Ryzen 9000 Series, 8000 Series, and 7000 Series Processors
- Refer to GIGABYTE website for the latest CPU support list
Chipset
Memory
- Supports DDR5 8200(OC)/8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
- 4 x DDR5 DIMM sockets, supports up to 256 GB (64 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Supports AMD EXPO and Extreme Memory Profile (XMP) memory modules
Onboard Graphics
- Integrated Graphics Processor with AMD Radeon Graphics and ASMedia USB4 Controller
- 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs, maximum resolution 3840x2160@240 Hz
- Integrated Graphics Processor with AMD Radeon Graphics
- 1 x HDMI port, supporting maximum resolution 4096x2160@60 Hz
- Graphics specifications may vary depending on CPU support
Audio
- Realtek Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
LAN
- Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication Module
- MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0): 802.11a, b, g, n, ac, ax, be, 2.4/5/6 GHz bands, Bluetooth 5.4, 11be 160MHz wireless standard
- Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1): 802.11a, b, g, n, ac, ax, be, 2.4/5/6 GHz bands, Bluetooth 5.4, 11be 160MHz wireless standard
- Actual data rate may vary depending on environment and equipment
Expansion Slots
- 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU
- AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
- Chipset: 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
Storage Interface
- 1 x M.2 connector (M2A_CPU), integrated in the CPU, Socket 3, M key, type 2242/2260/2280 PCIe 5.0 x4/x2 SSDs
- 1 x M.2 connector (M2C_SB), integrated in the Chipset, Socket 3, M key, type 2242/2260/2280 PCIe 4.0 x2 SSDs
- 1 x M.2 connector (M2B_SB), integrated in the Chipset, Socket 3, M key, type 2242/2260/2280 PCIe 4.0 x4/x2 SSDs
- 4 x SATA 6Gb/s connectors
- RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices (RAID 5 available only on AMD Ryzen 9000 Series)
- RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB
- CPU+ASMedia USB4 controller: 2 x USB4 USB Type-C ports on the back panel
- CPU: 1 x USB 3.2 Gen 2 Type-A port (red), 1 x USB 3.2 Gen 1 port on the back panel
- CPU+USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel
- Chipset: 1 x USB Type-C port with USB 3.2 Gen 2x2 support (internal header)
- Chipset: 4 x USB 3.2 Gen 1 ports (2 on back panel, 2 via internal header)
- Chipset: 4 x USB 2.0/1.1 ports via internal headers
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x 4-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x CPU fan/water cooling pump header
- 4 x system fan headers
- 3 x addressable RGB Gen2 LED strip headers
- 1 x RGB LED strip header
- 4 x SATA 6Gb/s connectors
- 3 x M.2 Socket 3 connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB Type-C header with USB 3.2 Gen 2x2 support
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header
- 1 x power button
- 1 x reset button
- 1 x reset jumper
- 1 x Clear CMOS jumper
Back Panel Connectors
- 1 x Q-Flash Plus button
- 2 x antenna connectors (2T2R)
- 1 x HDMI port
- 2 x USB4 USB Type-C ports (DisplayPort)
- 1 x USB 3.2 Gen 2 Type-A port (red)
- 3 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks
- Actual support may vary by CPU
I/O Controller
H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Fan fail warning
- Fan speed control
BIOS
- 1 x 256 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
- Support for GIGABYTE Control Center (GCC)
- Support for Q-Flash
- Support for Q-Flash Plus
- Support for Smart Backup
Bundled Software
- Norton Internet Security (OEM version)
- LAN bandwidth management software
Operating System
- Support for Windows 11 64-bit
Form Factor
- ATX Form Factor, 30.5cm x 24.4cm
