Description:

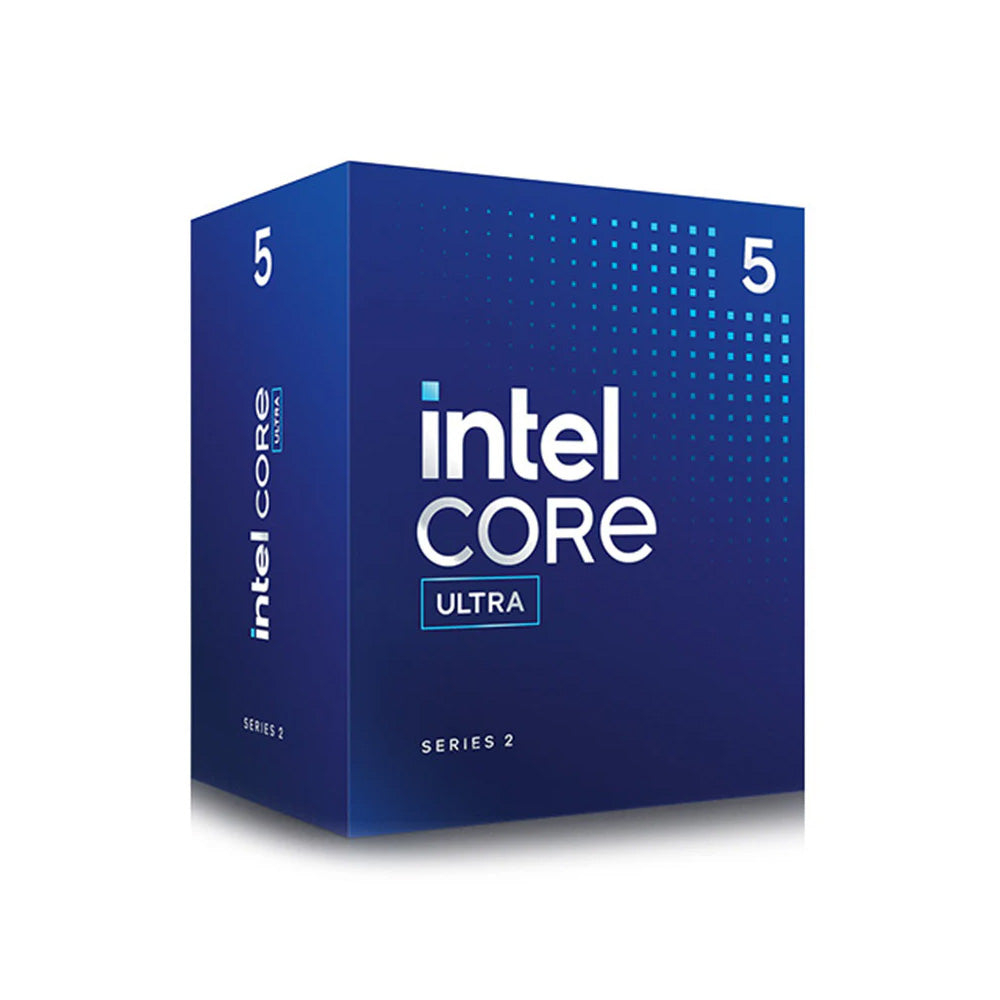

The Intel Core Ultra 5 225 is a 10-core, 10-thread desktop processor built on Intel's advanced N3B lithography, combining 6 performance cores with 4 efficient cores for a balanced mix of speed and power efficiency.
Features:
- Maximum turbo frequency up to 4.9GHz with 20MB Intel Smart Cache
- Integrated Intel Graphics supporting up to 4 displays and 7680x4320@60Hz output
- Intel AI Boost NPU delivering 13 TOPS Int8 for on-device AI acceleration
- Supports DDR5 memory up to 6400 MT/s across dual channels
- PCIe 5.0 and 4.0 lane support for high-speed storage and expansion
- Intel Thunderbolt 4 connectivity for fast peripheral and display support
- Hardware encode/decode support for H.264, H.265 (HEVC), and AV1
- Advanced security features including Intel TDT, VT-x, VT-d, and AES New Instructions
Specifications:
- Total Cores: 10 (6 Performance, 4 Efficient)
- Total Threads: 10
- Max Turbo Frequency: 4.9GHz
- Performance-core Max Turbo Frequency: 4.9GHz
- Efficient-core Max Turbo Frequency: 4.4GHz
- Performance-core Base Frequency: 3.3GHz
- Efficient-core Base Frequency: 2.7GHz
- Cache: 20MB Intel Smart Cache
- Total L2 Cache: 22MB
- Processor Base Power: 65W
- Maximum Turbo Power: 121W
- CPU Lithography: TSMC N3B
- Launch Date: Q1'25
- Max Memory Size: 256GB
- Memory Types: Up to DDR5 6400 MT/s
- Max Memory Channels: 2
- ECC Memory Support: No
- GPU: Intel Graphics, 300MHz base, 1.8GHz max dynamic frequency, 2 Xe-cores
- Graphics Output: eDP1.4b, DP 2.1 UHBR20, HDMI 2.1 FRL
- Max Resolution (HDMI): 4096x2304@60Hz (2.1 TMDS), 7680x4320@60Hz (2.1 FRL)
- Max Resolution (DP): 7680x4320@60Hz
- Displays Supported: 4
- NPU: Intel AI Boost, 13 TOPS Int8, sparsity and Windows Studio Effects support
- Direct Media Interface (DMI) Revision: 4
- Max DMI Lanes: 8
- Intel Thunderbolt 4: Yes
- PCI Express Revision: 5.0 and 4.0
- PCI Express Configurations: Up to 1x16+2x4, 2x8+2x4, 1x8+4x4
- Max PCI Express Lanes: 24
- Socket Supported: FCLGA1851
- Thermal Solution Specification: PCG 2022C
- Max Operating Temperature: 105°C
- Intel Turbo Boost Technology: 2.0
- Intel Hyper-Threading Technology: No
- Instruction Set: 64-bit
- Instruction Set Extensions: Intel SSE4.1, SSE4.2, Intel AVX2
- Security Features: Intel TDT, AMT (No), ISM, Secure Key, AES New Instructions, TXT, OS Guard, Boot Guard, VT-x, VT-d, VT-x with EPT
