Description:

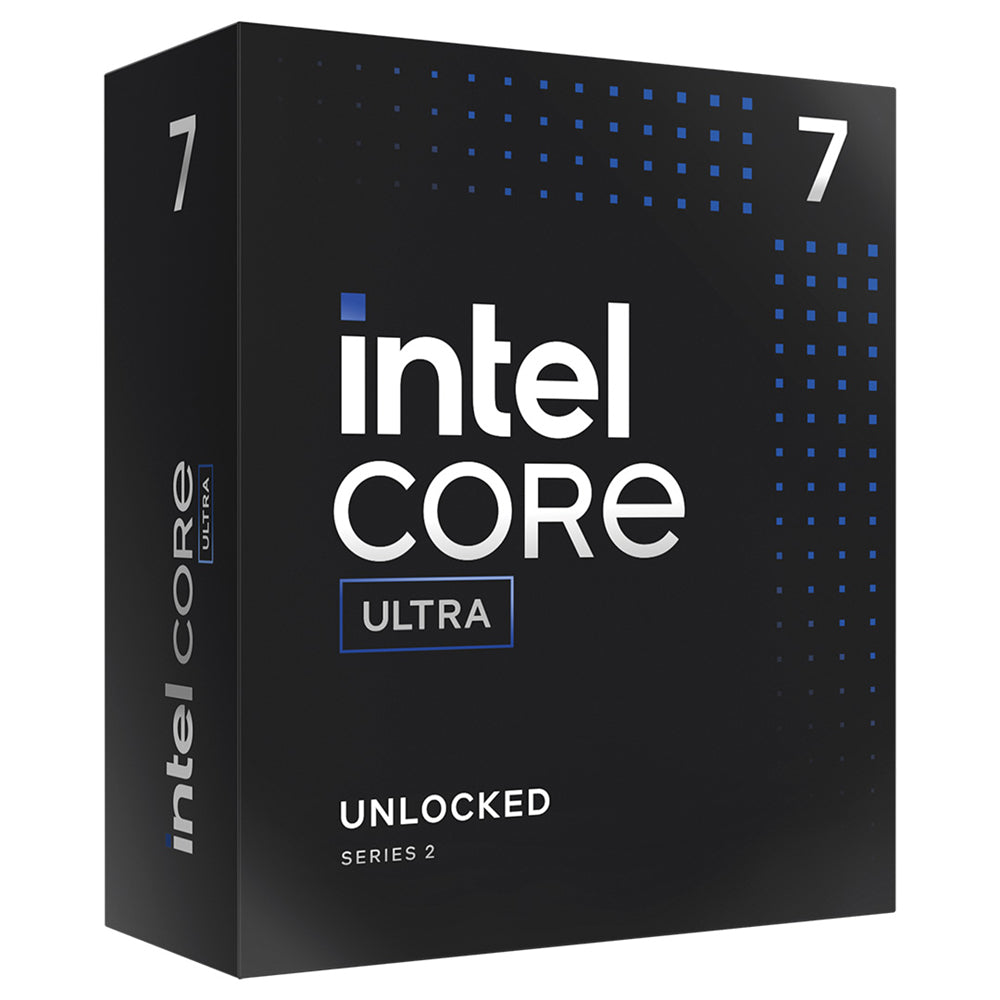

Built on a 20-core, 20-thread architecture combining 8 performance-cores and 12 efficient-cores, this desktop processor reaches turbo speeds of up to 5.5 GHz. It features 30 MB of Intel Smart Cache, 36 MB of total L2 cache, and integrates Intel AI Boost NPU technology delivering 13 TOPS for AI-accelerated workloads.
Features:
- 20 total cores with 8 performance-cores and 12 efficient-cores
- Max turbo frequency of up to 5.5 GHz
- Intel Deep Learning Boost supported on CPU
- Intel AI Boost NPU with sparsity support and Windows Studio Effects support
- Compatible with AI software frameworks including OpenVINO, WindowsML, DirectML, ONNX RT and WebNN
- Intel Thunderbolt 4 support
- Intel Volume Management Device (VMD) support
- Intel Thread Director and Intel Speed Shift Technology
- Intel Turbo Boost Max Technology 3.0 and Intel Turbo Boost Technology 2.0
- Intel 64-bit instruction set with SSE4.1, SSE4.2 and AVX2 extensions
- Security features including AES New Instructions, Secure Key, Trusted Execution Technology, OS Guard and Boot Guard
- Virtualization support through Intel VT-x, VT-d and VT-x with Extended Page Tables
Specifications:
- Total cores: 20
- Performance-cores: 8
- Efficient-cores: 12
- Total threads: 20
- Max turbo frequency: 5.5 GHz
- Intel Turbo Boost Max Technology 3.0 frequency: 5.5 GHz
- Performance-core max turbo frequency: 5.4 GHz
- Efficient-core max turbo frequency: 4.6 GHz
- Performance-core base frequency: 3.9 GHz
- Efficient-core base frequency: 3.3 GHz
- Cache: 30 MB Intel Smart Cache
- Total L2 cache: 36 MB
- Processor base power: 125 W
- Maximum turbo power: 250 W
- CPU lithography: TSMC N3B
- Marketing status: Launched
- Launch date: Q4'24
- Embedded options available: No
- Use conditions: PC/Client/Tablet
- Max memory size: 192 GB
- Memory types: Up to DDR5 6400 MT/s
- Maximum memory speed: 6400 MHz
- Max number of memory channels: 2
- NPU name: Intel AI Boost
- NPU peak TOPS (Int8): 13
- Sparsity support: Yes
- Windows Studio Effects support: Yes
- AI software frameworks supported by NPU: OpenVINO, WindowsML, DirectML, ONNX RT, WebNN
- DMI revision: 4
- Max number of DMI lanes: 8
- Intel Thunderbolt 4: Yes
- Scalability: 1S only
- PCI Express revision: 5.0 and 4.0
- PCI Express configurations: Up to 1x16+2x4, 2x8+2x4, 1x8+4x4
- Max number of PCI Express lanes: 24
- Sockets supported: FCLGA1851
- Thermal solution specification: PCG 2020A
- Max operating temperature: 105°C
- Instruction set: 64-bit
- Instruction set extensions: Intel SSE4.1, Intel SSE4.2, Intel AVX2
