Description:

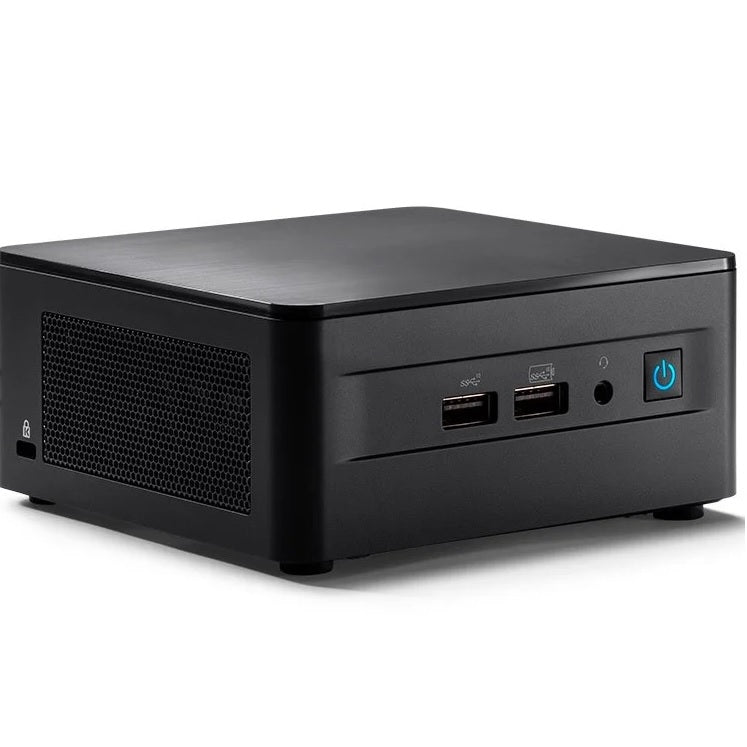

Built as a compact PC barebone system in a tall chassis form factor, this mini kit is powered by a 12th Gen Intel Core i7-1260P processor running at 4.7 GHz with 12 cores and 18MB of cache, delivering strong performance in a small footprint. It supports up to 64GB of DDR4 SDRAM memory, though ships without RAM or storage installed, offering flexibility for custom configuration. Storage options include both SATA 6Gb/s and PCIe 4.0 x4 NVMe connectivity, though no HDD or optical drive is included out of the box.
Features:
- 12th Gen Intel Core i7-1260P processor, 4.7 GHz, 12-core with 18MB cache
- Supports up to 64GB DDR4 SDRAM memory (sold separately)
- Dual storage support: SATA 6Gb/s and PCIe 4.0 x4 NVMe
- Intel Iris Xe integrated graphics with Thunderbolt 4 and HDMI output
- 7.1 channel surround sound audio output
- Comprehensive networking: GigE, 2.5 GigE, 802.11ax Wi-Fi 6, Bluetooth 5.2
- Intel Virtualization Technology and Virtualization Technology for Directed I/O
- Intel Smart Cache and AES New Instructions for enhanced performance and security
- Intel Platform Trust Technology (PTT) for built-in security
- Compact tall chassis form factor
Specifications:
- Processor: 1 x Intel Core i7-1260P (12th Gen), 4.7 GHz, 12-core
- Processor Main Features: Intel Virtualization Technology, Intel Smart Cache, Intel AES New Instructions, Intel Virtualization Technology for Directed I/O, Intel Platform Trust Technology (PTT)
- Cache Memory: 18 MB
- Cache Per Processor: 18 MB
- RAM: 0 GB installed / 64 GB max, DDR4 SDRAM
- Storage Controller: SATA/NVMe (SATA 6Gb/s / PCIe 4.0 x4 NVMe)
- Hard Drive: No HDD included
- Optical Storage: No optical drive
- Graphics Controller: Thunderbolt 4 / HDMI, Intel Iris Xe Graphics
- Audio Output: 7.1 channel surround
- Networking: GigE, 802.11a, 802.11b/g/n, 802.11ac, 2.5 GigE, 802.11ax (Wi-Fi 6), Bluetooth 5.2
- Software Included: Intel Management Engine Firmware 16
- Dimensions (W x D x H): 11.7 cm x 11.2 cm x 5.4 cm
