Description:

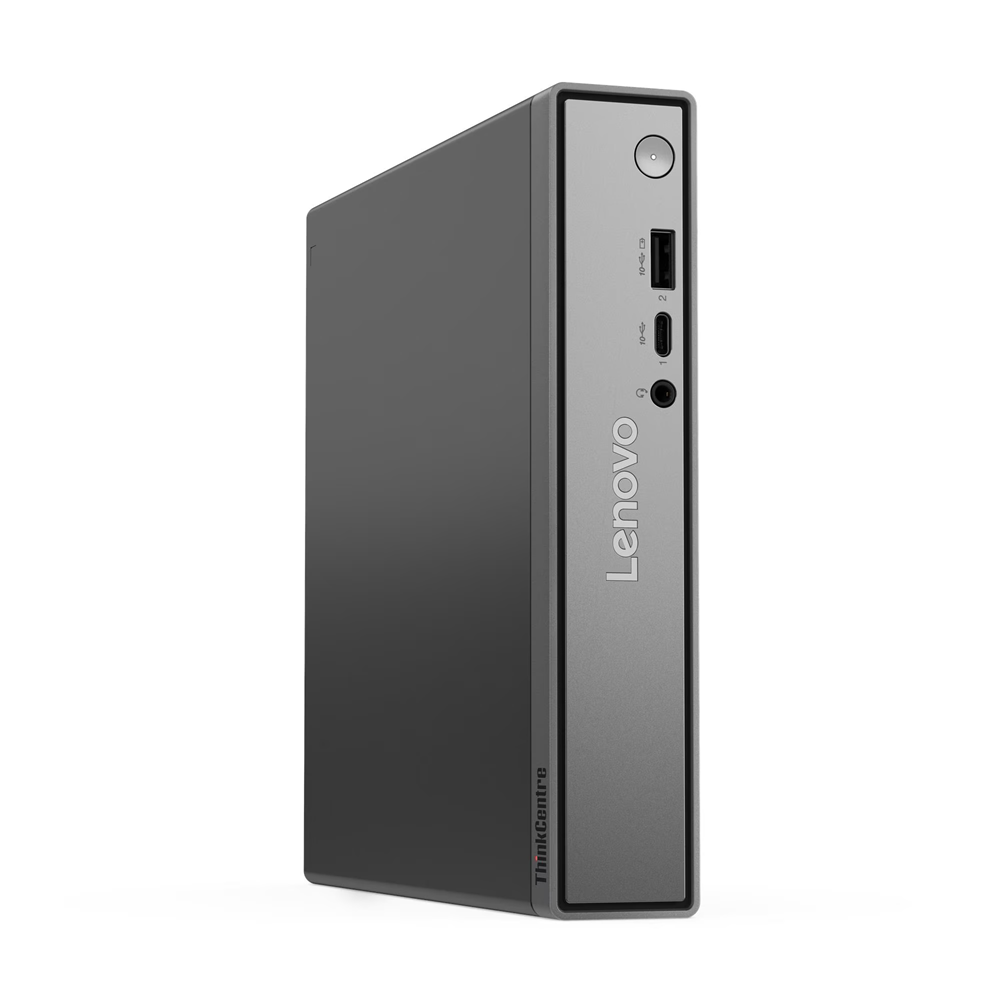

Delivering heavyweight performance in a compact, sleek 1L form factor, this Tiny PC is designed to inspire business productivity around the clock. Powered by an Intel Core i5-13420H processor with 8 cores (4P+4E) and 12 threads, reaching P-core speeds up to 4.6GHz and E-core speeds up to 3.4GHz with 12MB of Intel Smart Cache, it delivers robust memory and ample storage for reliable workload management and enhanced creative output, running resource-heavy software while switching between tasks without lag.
Features:
- Intel Core i5-13420H processor, 8 cores (4P+4E), 12 threads, up to 4.6GHz
- Compact 1L sleek Tiny PC design
- Centrifugal fan for efficient cooling performance
- Support for up to 3 monitors and 10 connectivity options
- Smart Connect and optional Wi-Fi 7 for fast, seamless device management
- Smart Storage app for personal cloud storage access and configuration
- 6 USB ports, 3 display ports, and a BTB port (Video Graphics Array/DisplayPort/Serial/Ethernet)
- Refreshed front bezel with hidden ventilation for a professional aesthetic
- Intelligent Cooling Engine 7.0 for efficient heat management
- ThinkShield security with Discrete TPM (dTPM) 2.0 encryption
- Remote manageability via ThinkCentre Customisation and Lenovo Device Manager
- TCO 10.0 certified for environmental sustainability
Specifications:
- Processor: Intel Core i5-13420H, 8-core (4P+4E), 12 threads, P-core up to 4.6GHz, E-core up to 3.4GHz, 12MB Intel Smart Cache
- Graphics: Integrated Intel UHD Graphics
- Chipset: Intel SoC Platform
- Memory: 16GB (2x 8GB SODIMM DDR5-5600)
- Memory Slots: 2x DDR5 SODIMM, dual-channel capable
- Max Memory: Up to 64GB DDR5-5600
- Storage: 512GB SSD, M.2 2280, PCIe 4.0x4 NVMe, Opal 2.0
- Max Storage Support: Up to 2 drives (2x M.2 SSD, up to 1TB each)
- Audio Chip: HD Audio, Realtek ALC256 codec
- Speakers: 2W x 1
- Power Supply: 90W, 89% adapter
- Case Colour: Black
- Expansion Slots: 3x M.2 slots (1x WLAN, 2x SSD)
- Form Factor: Tiny (1L)
- Dimensions (W x D x H): 179 x 182.9 x 34.5 mm (without rubber feet); 179 x 182.9 x 36.5 mm (with rubber feet)
- Weight: Approximately 1.13 kg (2.49 lbs)
- WLAN + Bluetooth: Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3
- Ethernet: Integrated 100/1000M
- Front Ports: 1x USB-C (USB 10Gbps/USB 3.2 Gen 2, data transfer + 5V@3A charging), 1x USB-A (USB 10Gbps/USB 3.2 Gen 2, Always On + 5V@2.1A charging), 1x headphone/microphone combo jack
- Rear Ports: 2x USB-A (Hi-Speed USB/USB 2.0), 2x USB-A (USB 10Gbps/USB 3.2 Gen 2), 1x HDMI 2.1 TMDS, 1x DisplayPort 1.4b, 1x Ethernet (GbE RJ-45), 1x power connector
- Security Chip: Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
- Physical Locks: Kensington Security Slot, 3 x 7mm
- Chassis Intrusion Switch: Included
- System Management: Non-vPro
- Green Certifications: ENERGY STAR 9.0, RoHS compliant, TCO Certified generation 10
- Operating System: Windows 11 Pro, English
