Description:

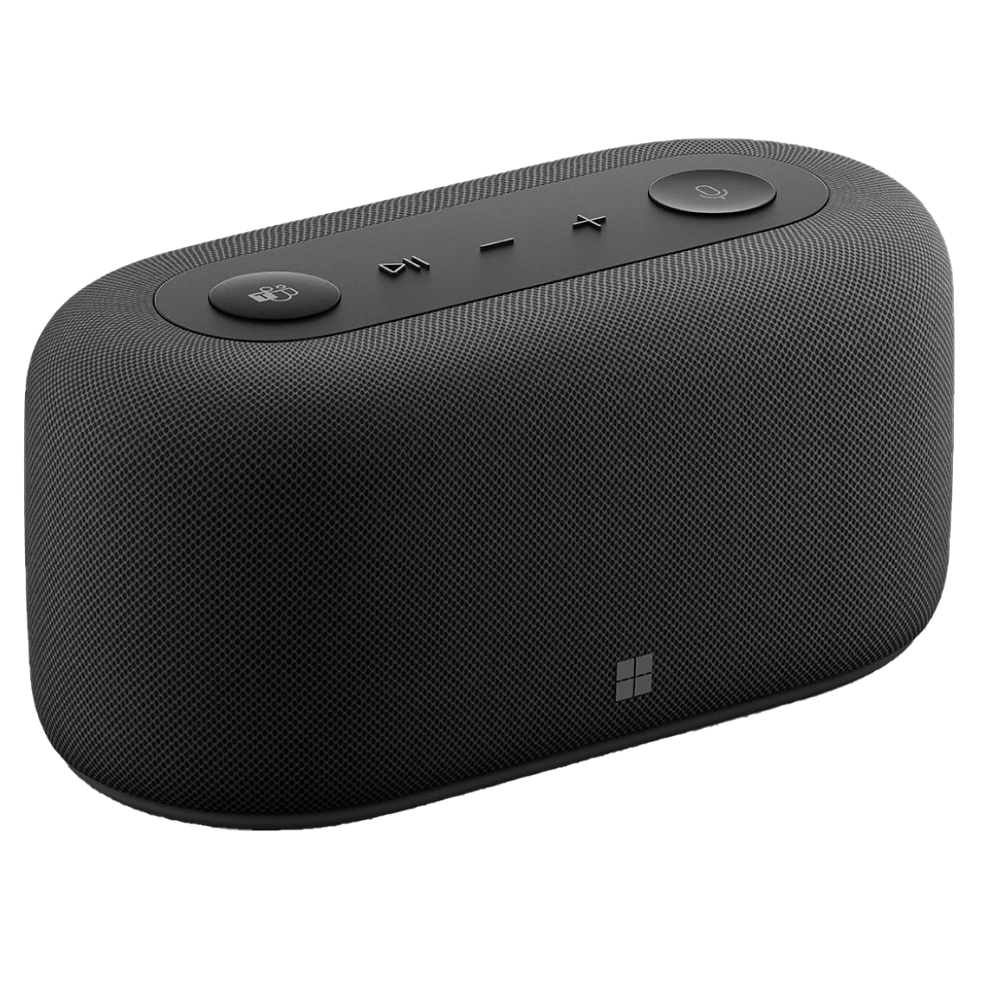

The Microsoft Audio Dock combines a high-quality conferencing speaker with a full-featured USB-C docking station, creating a clean, streamlined desk setup for video calls and everyday productivity. Two omni-directional microphone arrays capture clear audio for conference calls, while a dedicated tweeter and woofer deliver sound pressure levels up to 90dB SPL, with a frequency response tuned separately for music playback and conference audio.
Features:
- Two omni-directional microphone arrays for clear conference call audio
- Dedicated tweeter and woofer delivering up to 90dB SPL sound output
- Primary USB-C port with USB 3.1 Gen 2 speeds, DP Alt Mode, and dual display support
- Additional USB-C data port, USB-A 3.2 port, and HDMI 2.0 port with 4K@60Hz
- Supports MST across USB-C and HDMI for multi-display setups
- USB-C PD charging up to 60W for connected laptops
- Dedicated Microsoft Teams, mute, volume, and play/pause buttons
- Microsoft Accessory Center for speaker and microphone customization (Windows only)
Specifications:
- Dimensions (W x D x H): 6.6 x 3.16 x 3.19 inches (167.6 x 80.2 x 81mm)
- Colour: Matte Black
- Speakers: Tweeter OD25.9 x H11.6mm, Woofer L54 x W48.8 x H41.5mm
- Sound Pressure Level Output: Up to 90dB SPL
- Frequency Response: 70Hz-20kHz for music playback, 200Hz-8kHz for conference audio
- Audio Codec: Codec RK2108, Amp TAS5805
- Microphones: Two omni-directional microphone arrays
- Dock Connections: 1x USB-C (USB 3.1 Gen 2, power up to 7.5W, DP Alt Mode, up to dual display), 1x USB-C (USB 3.1 Gen 2 data only, power up to 7.5W), 1x USB-A 3.2 (USB 3.1 Gen 2), 1x HDMI 2.0 port with 4K@60Hz, MST support on USB-C and HDMI, USB-C PD charging up to 60W
- Operating System Compatibility: Windows 11 Home/Pro, Windows 10, MacOS
- Conference Software Compatibility: Microsoft Teams, Zoom, Google Meet
- Connection to PC: USB-C
- USB Cord Length: 39.4 inches (1 meter)
- Button/Controls: Microsoft Teams button, mute button, volume up/down buttons, play/pause button
- Microsoft Accessory Center: Speaker performance customization and microphone settings (Windows only)
Package Contents:
Microsoft Audio Dock
Power Supply Unit and AC cord
Quick Start Guide
Safety documents
