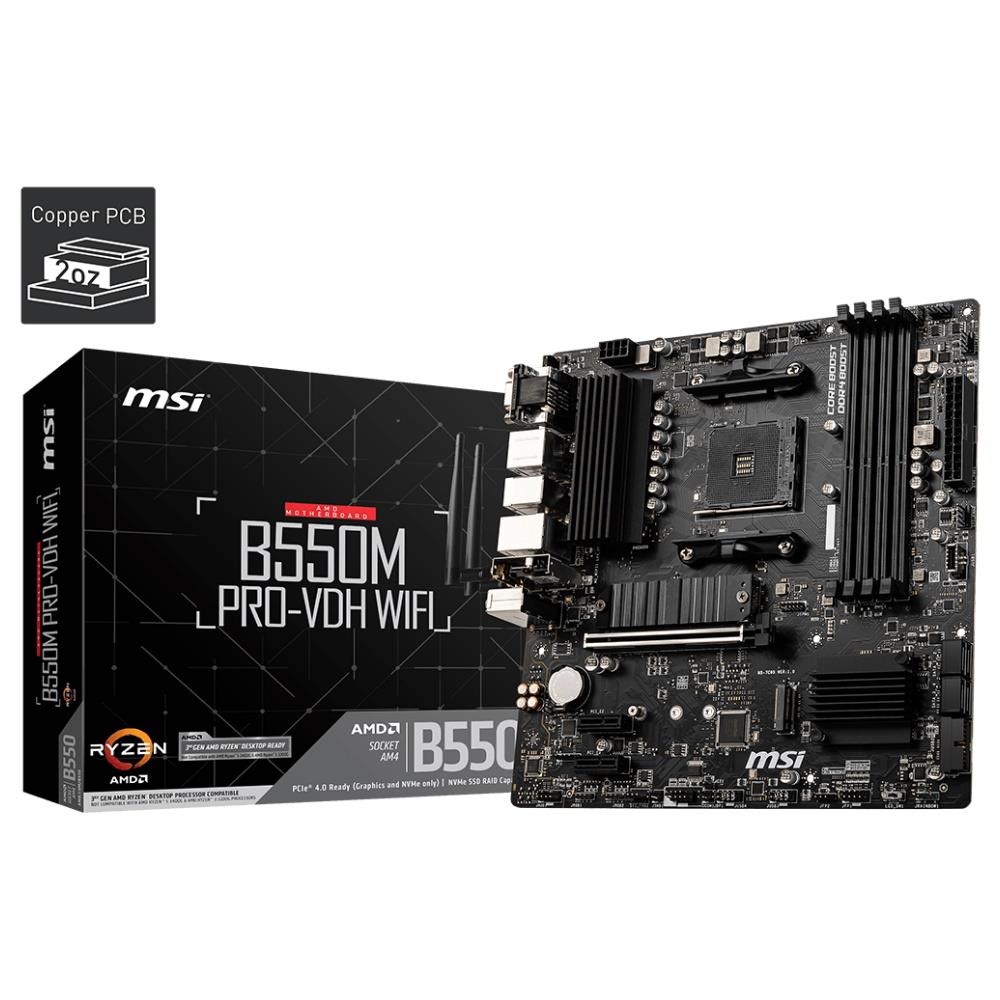

MSI Pro series motherboards help users work smarter by delivering an efficient and productive experience, and this B550M mATX board built on AMD Socket AM4 continues that focus with stable functionality and high-quality assembly. Supporting 3rd Gen AMD Ryzen processors and future AMD Ryzen processors with a BIOS update, this board pairs a premium layout and digital power design through Core Boost to support more cores and provide better performance. DDR4 Boost delivers a fully isolated DDR circuit for pure data signals, ensuring the best performance and stability, while the 2oz thickened copper PCB design improves heat dissipation and performance reliability, especially during overclocking. M.2 Shield Frozr, the next generation M.2 thermal solution, prevents throttling and maximizes drive performance by keeping M.2 SSDs safe from overheating while delivering higher maximum SSD speeds. Next-gen Intel Wi-Fi delivers AC speeds up to 433Mbps alongside Bluetooth speeds up to 25Mbps, all without any cable limitations, providing lower CPU loading and better long-term usage. Audio Boost rewards your ears with studio grade sound quality for the most immersive gaming experience, while a Flash BIOS Button lets you flash BIOS within seconds using a USB drive, without needing to install a CPU, memory, or graphics card. The board's user-friendly design includes convenient tuning tools and troubleshooting features, making it easy to install even for the most demanding tinkerer.
Features
- Support for 3rd Gen AMD Ryzen processors and future Ryzen processors with BIOS update
- Core Boost with premium layout and digital power design for better core performance
- DDR4 Boost with fully isolated DDR circuit for pure data signals and stability
- 2oz thickened copper PCB for improved heat dissipation and overclocking reliability
- M.2 Shield Frozr thermal solution prevents throttling and maximizes SSD performance
- Next-gen Intel Wi-Fi AC delivering speeds up to 433Mbps with Bluetooth up to 25Mbps
- Audio Boost for studio grade sound quality and immersive gaming audio
- Flash BIOS Button for easy BIOS flashing without CPU, memory, or graphics card installed
- User-friendly design with convenient tuning and troubleshooting tools
Specifications
- Socket: AMD Socket AM4
- CPU (Max Support): Support for 3rd Gen AMD Ryzen processors and future AMD Ryzen processors with BIOS update
- Chipset: AMD B550 Chipset
- DDR4 Memory: 1866/2133/2400/2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133/4266/4400+ MHz by JEDEC and A-XMP OC Mode
- Memory Channel: Dual
- DIMM Slots: 4
- Max Memory: 128GB
- PCI-E x16: 1
- PCI-E Gen: Gen4 / Gen3
- PCI-E x1: 2
- SATA III: 4
- M.2 Slot: 2
- RAID: 0/1/10
- TPM (Header): 1
- LAN: 1x Realtek RTL8111HN Gigabit LAN
- USB 3.2 Ports (Front): 1 (Gen1, Type C), 2 (Gen1, Type A)
- USB 3.2 Ports (Rear): 4 (Gen1, Type A)
- USB 2.0 Ports (Front): 4
- USB 2.0 Ports (Rear): 2
- Serial Ports (Front): 1
- Audio Ports (Rear): 3 HD Audio Connectors
- DisplayPort: 1
- VGA: 1
- HDMI: 1
- DirectX: 12
- Form Factor: mATX
- Operating System: Support for Windows 10 64-bit
