Description:

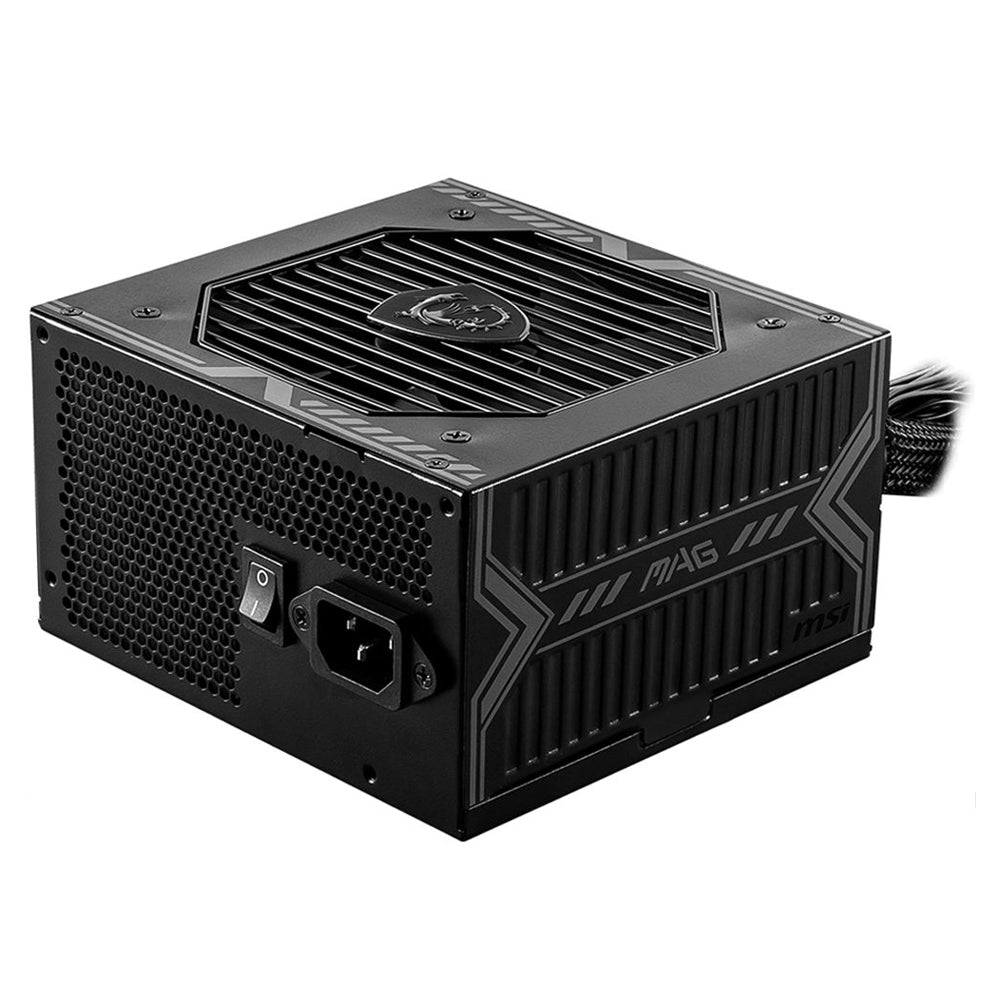

The MSI A650BN is an excellent choice for players just getting started with DIY computer building, delivering a reliable performance experience right after installation without any additional settings required. Rated at 650W and certified 80 PLUS Bronze with up to 85% efficiency, it promises lower energy consumption while directly supporting your system's performance. A 120 mm low noise fan with sleeve bearing reduces noise generated while maintaining excellent heat dissipation, and the adopted DC-to-DC circuit design reduces output voltage instability to add stability to the power supply. Comprehensive protection mechanisms covering OCP, OVP, SCP, OPP, and OTP safeguard your components.
Features:
- 80 PLUS Bronze certified promising lower energy consumption and higher efficiency
- 120 mm low noise fan with sleeve bearing for reduced noise and excellent heat dissipation
- DC-to-DC circuit design reducing output voltage instability for a stable power supply
- Comprehensive protection with OCP, OVP, SCP, OPP, and OTP mechanisms
- Active PFC design
- Ideal choice for players getting started with DIY computer builds
Specifications:
- Power Wattage: 650W
- Efficiency: Up to 85% (80 Plus Bronze)
- PSU Form Factor: ATX
- AC Input: 100-240V~, 10-5A, 50-60Hz
- Input Voltage: 100-240Vac
- Input Current: 115Vac/10.0A max, 230Vac/5.0A max
- Input Frequency: 50Hz ~ 60Hz
- PFC Type: Active PFC
- Fan Size: 120 mm
- Fan Bearing: Sleeve Bearing
- Protection: OCP / OVP / OPP / OTP / SCP
- Dimensions: 150mm x 140mm x 86mm
- ATX (20+4 Pin): 1
- EPS (4+4 Pin): 1
- PCI-E (6+2 Pin): 2
- SATA: 5
- Molex (Peripheral): 2
- FDD: 1
- DC Output +5V: 20.0A (110W combined with +3.3V)
- DC Output +3.3V: 20.0A
- DC Output +12V: 54.0A (648W)
- DC Output -12V: 0.3A (3.6W)
- DC Output +5Vsb: 2.5A (12.5W)
- Total Power: 650W
