Description:

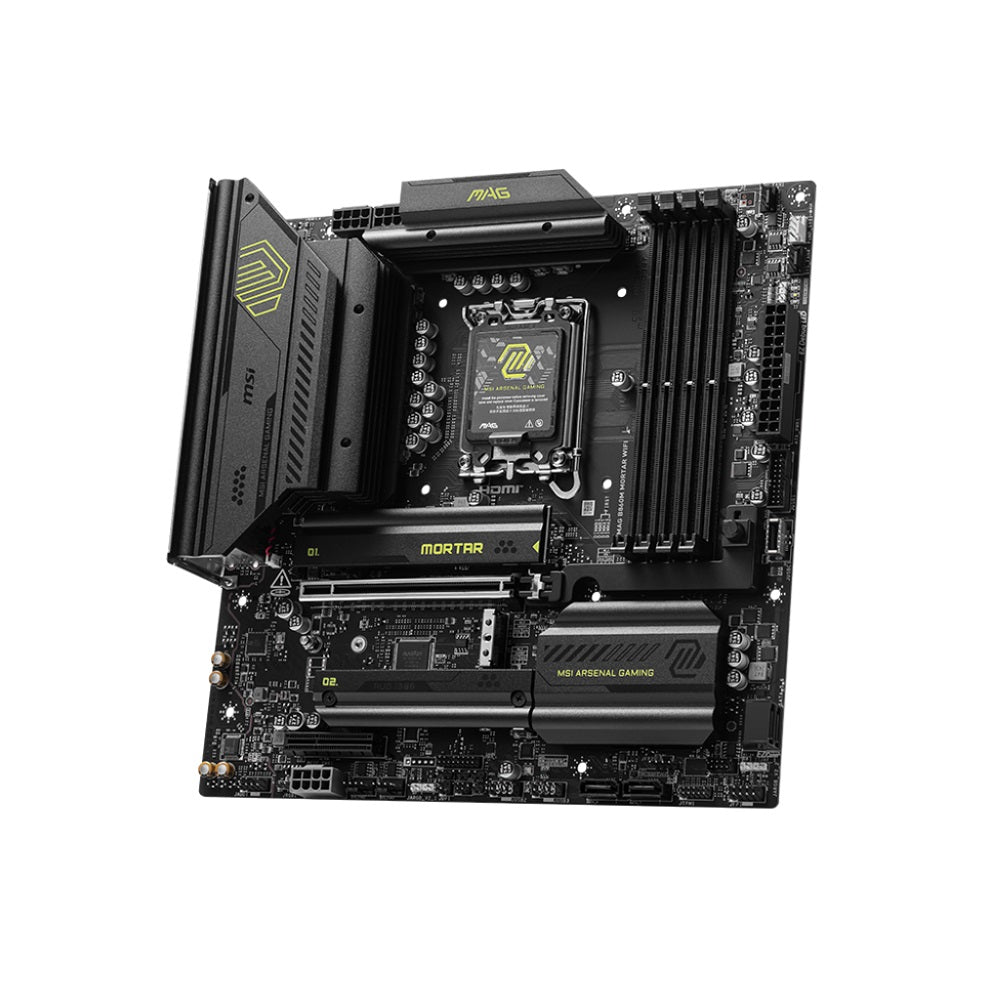

The MSI Mortar WiFi is a Micro-ATX motherboard built on the Intel B860 chipset with an LGA1851 socket, designed to support Intel Core Ultra Series 2 processors. It offers four DDR5 UDIMM slots with a maximum capacity of 256GB and support for memory speeds up to 9200 MT/s overclocked, along with dual-controller dual-channel architecture and Intel XMP 3.0 profiles for easy performance tuning.
Features:
- Onboard Thunderbolt 4 port with up to 40Gbps transfer rate and daisy-chain support
- Intel Killer BE1750x Wi-Fi 7 module with MU-MIMO and Bluetooth 5.4
- Intel Killer E5000 5Gbps LAN for fast, stable wired networking
- Strong rear I/O lineup with multiple USB 10Gbps Type-A and Type-C ports
- RAID 0/1/5/10 support for SATA storage devices
- Multiple addressable RGB and RGB LED headers for customizable lighting
- 4x EZ Debug LEDs and 1x EZ Memory Detection LED for simplified troubleshooting
Specifications:
- Chipset: Intel B860
- CPU Support: LGA1851 socket, Intel Core Ultra Processors (Series 2)
- Memory: 4x DDR5 UDIMM slots, max 256GB, speeds up to 9200 MT/s (OC)/6400-4800 (JEDEC) MT/s, dual-controller dual-channel, XMP 3.0 support
- Onboard Graphics: 1x HDMI (2.1 with FRL, up to 8K@60Hz), 1x DisplayPort 1.4 (up to 4K@60Hz), 1x Type-C DisplayPort, Thunderbolt 4 with DisplayPort 2.1 support up to 4K@120Hz/8K@60Hz
- Expansion Slots: 1x PCIe x16 (PCI_E1 Gen5 x16 from CPU), 1x PCIe x4 (PCI_E2 Gen4 x4 from chipset)
- Audio: Realtek ALC897 Codec, 7.1-channel HD Audio, S/PDIF output support
- Storage: 3x M.2 slots (PCIe 5.0 x4 CPU slot, two PCIe 4.0 x4 chipset slots), 4x SATA 6G ports
- RAID: RAID 0, 1, 5, 10 support for SATA storage
- Onboard Thunderbolt: 1x Thunderbolt 4 port (rear), up to 40Gbps with Thunderbolt devices, up to 20Gbps with USB4, up to 10Gbps with USB 3.2, up to 5V/3A/15W charging, daisy-chain up to 3 Thunderbolt 4 or 5 Thunderbolt 3 devices, supports up to 8K display
- USB: 4x USB 2.0 (rear), 4x USB 2.0 (front), 2x USB 5Gbps Type-A (front), 3x USB 10Gbps Type-A (rear), 1x USB 10Gbps Type-C (rear), 1x USB 10Gbps Type-C (front)
- LAN: Intel Killer E5000 5Gbps LAN
- Wireless: Intel Killer BE1750x Wi-Fi 7, MU-MIMO 2.4/5/6GHz up to 5.8Gbps, Bluetooth 5.4
- Internal I/O: Thunderbolt5 card connector, ATX and CPU power connectors, PCIE power connector, CPU fan, combo fan, 4x system fan headers, EZ Conn-header, front panel and audio headers, chassis intrusion header, tuning controller connector, 3x addressable V2 RGB headers, 1x RGB LED connector, TPM header, USB 2.0/5Gbps/10Gbps headers
- LED Features: 4x EZ Debug LED, 1x EZ Memory Detection LED
- Operating System Support: Windows 11 64-bit
