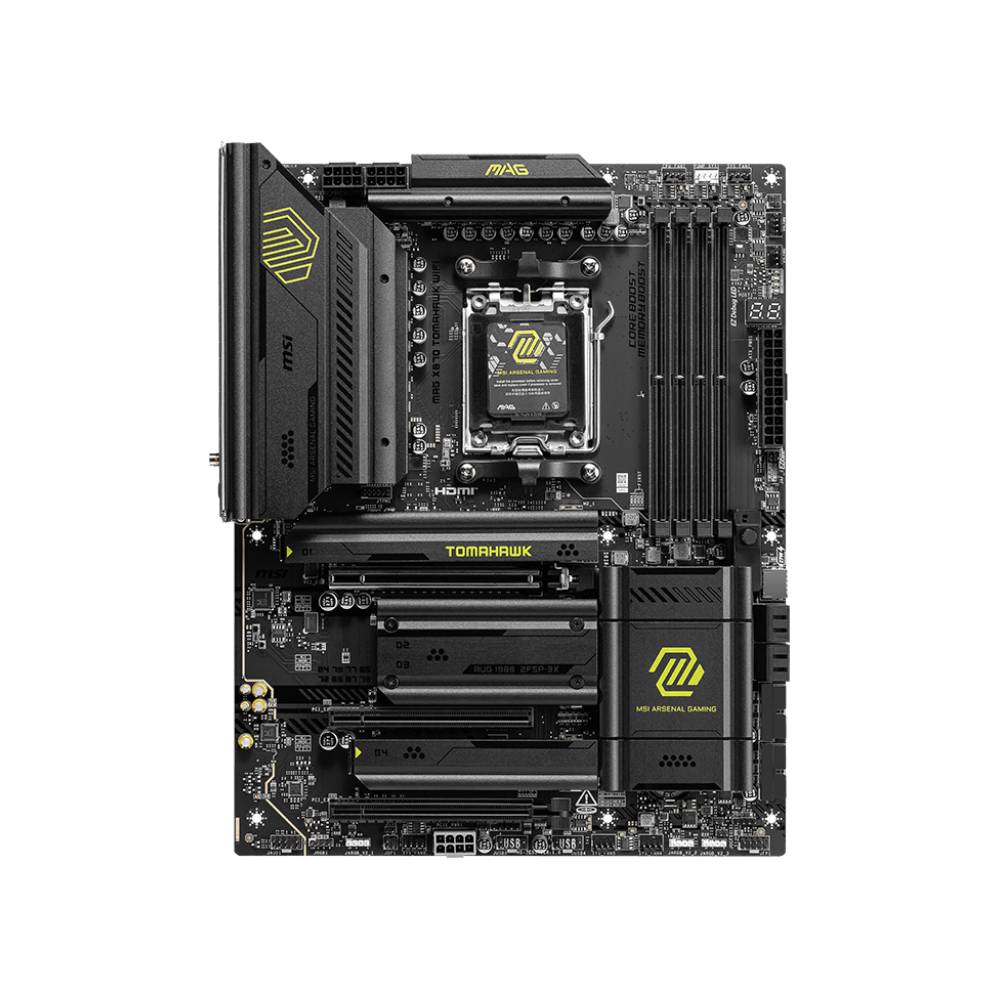

Build a top-tier AMD Ryzen system with the MSI MAG X870 Tomahawk WiFi ATX motherboard. Featuring a 14+2+1 Duet Rail Power System with dual 8-pin CPU power connectors, Core Boost and Memory Boost technologies on an 8-layer PCB made with 2oz thickened copper and server-grade materials, this board delivers ultra performance for AMD Ryzen 9000/8000/7000 Series desktop processors. It supports dual channel DDR5 memory up to 8400+(OC)MT/s, PCIe 5.0 with Lightning Gen 5 x4 M.2 storage, and Frozr Guard thermal protection including EZ M.2 Shield Frozr II. With Ultra Connect features like USB4, 5G LAN and Wi-Fi 7, plus Audio Boost 5 sound technology, the MAG X870 Tomahawk WiFi offers cutting-edge connectivity and reliability for high-performance builds.
Key Features
- Supports AMD Ryzen 9000/8000/7000 Series desktop processors
- 14+2+1 Duet Rail Power System with dual 8-pin CPU power connectors
- Core Boost and Memory Boost technologies for enhanced performance
- 8-layer PCB made with 2oz thickened copper and server-grade level material
- Supports dual channel DDR5 memory, up to 8400+(OC)MT/s, maximum capacity 256GB
- Frozr Guard: Extended Heatsink, 7W/mK MOSFET thermal pads, additional choke thermal pads and EZ M.2 Shield Frozr II
- EZ DIY features: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna
- PCIe 5.0 slot with Lightning Gen 5 x4 M.2 for lightning-fast storage performance
- Ultra Connect: USB4, 5G LAN and Wi-Fi 7 for secure, stable, high-speed networking
- Audio Boost 5 for studio-grade sound quality
- AMD MULTI-GPU Support
Specifications
General
- Chipset: AMD X870
- Form Factor: ATX, 304.8mm x 243.84mm
- CPU Support: AMD Ryzen 9000/8000/7000 Series Desktop Processors, Socket AM5
- Audio: Realtek ALC4080 Codec, 7.1-Channel USB High Performance Audio, S/PDIF output, up to 32-bit/384kHz playback on front panel
- LAN: Realtek 8126-CG 5G LAN
- Operating System Support: Windows 11 64-bit
Memory
- 4x DDR5 UDIMM, maximum memory capacity 256GB
- Memory support: DDR5 8400-5600(OC) MT/s / 5600-4800(JEDEC) MT/s
- Ryzen 9000 Series max overclocking frequency: 1DPC 1R up to 8400+MT/s; 1DPC 2R up to 6400+MT/s; 2DPC 1R up to 6400+MT/s; 2DPC 2R up to 4800+MT/s
- Supports AMD POR Speed and JEDEC Speed
- Supports Memory Overclocking and AMD EXPO
- Supports Dual-Channel mode
- Supports Non-ECC, Un-buffered memory
- Supports CUDIMM, Clock Driver bypass mode only
Onboard Graphics
- 1x HDMI, supports HDMI 2.1 FRL, maximum resolution 8K 60Hz
- 2x Type-C DisplayPort
- 1x USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution 4K 60Hz
- Available only on processors featuring integrated graphics; specifications may vary depending on CPU installed
Expansion Slots
- 3x PCI-E x16 slot
- PCI_E1: Gen PCIe 5.0, supports up to x16 (from CPU)
- PCI_E2: Gen PCIe 3.0, supports up to x1 (from Chipset)
- PCI_E3: Gen PCIe 4.0, supports up to x4 (from Chipset)
- PCI_E1 slot: supports PCIe 5.0 x16 (Ryzen 9000/7000 Series), PCIe 4.0 x8 (Ryzen 8700/8600/8400 Series), PCIe 4.0 x4 (Ryzen 8500/8300 Series)
- PCI_E3 slot runs at x2 speed when installing device in the M.2_3 slot; can be switched to x4 in BIOS, disabling M.2_3 slot
Storage
- 4x M.2 slots
- M.2_1 (from CPU): supports up to PCIe 5.0 x4, supports 22110/2280 devices
- M.2_2 (from CPU): supports up to PCIe 5.0 x4, supports 2280/2260 devices
- M.2_3 (from Chipset): supports up to PCIe 4.0 x2, supports 2280/2260 devices
- M.2_4 (from Chipset): supports up to PCIe 4.0 x4, supports 2280/2260 devices
- 4x SATA 6G connectors
- M.2_1 and M.2_2 slots: support up to PCIe 5.0 x4 (Ryzen 9000/7000 Series), PCIe 4.0 x4 (Ryzen 8000 Series); M.2_2 unavailable with Ryzen 8500/8300 Series
Multi-GPU
RAID
- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
USB Connectivity
- 4x USB 2.0 (Rear)
- 4x USB 2.0 (Front)
- 3x USB 5Gbps Type A (Rear)
- 4x USB 5Gbps Type A (Front)
- 2x USB 10Gbps Type A (Rear)
- 1x USB 10Gbps Type C (Rear)
- 1x USB 20Gbps Type C (Front)
- 2x USB 40Gbps Type C (Rear)
Internal I/O
- 1x Power Connector (ATX_PWR)
- 2x Power Connector (CPU_PWR)
- 1x Power Connector (PCIE_PWR 8pin)
- 1x CPU Fan
- 1x Combo Fan (Pump_Sys Fan)
- 6x System Fan
- 1x EZ Conn-header (JAF_2)
- 2x Front Panel (JFP)
- 1x Chassis Intrusion (JCI)
- 1x Front Audio (JAUD)
- 3x Addressable V2 RGB LED connector (JARGB_V2)
- 1x RGB LED connector (JRGB)
- 1x TPM pin header (Support TPM 2.0)
- 4x USB 2.0 ports
- 4x USB 5Gbps Type A ports
- 1x USB 20Gbps Type C ports
Wireless LAN and Bluetooth
- Wi-Fi 7, pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX
- Supports 2.4GHz/5GHz/6GHz (320MHz) bandwidth, up to 5.8Gbps
- Supports 802.11 a/b/g/n/ac/ax/be
- Supports Bluetooth 5.4, MLO, 4KQAM
LED Feature
- 4x EZ Debug LED
- 1x EZ Digit Debug LED
Back Panel Ports
- 1x Clear CMOS Button
- 1x USB 10Gbps Type-A
- 1x USB 5Gbps Type-A
- USB 2.0 ports
- 1x 5G LAN
- 1x Wi-Fi/Bluetooth antenna connector
- Audio connectors
- 1x Flash BIOS Button
- 1x HDMI
- 2x USB 40Gbps Type-C
- 1x USB 10Gbps Type-C
- 1x USB 10Gbps Type-A
