Description

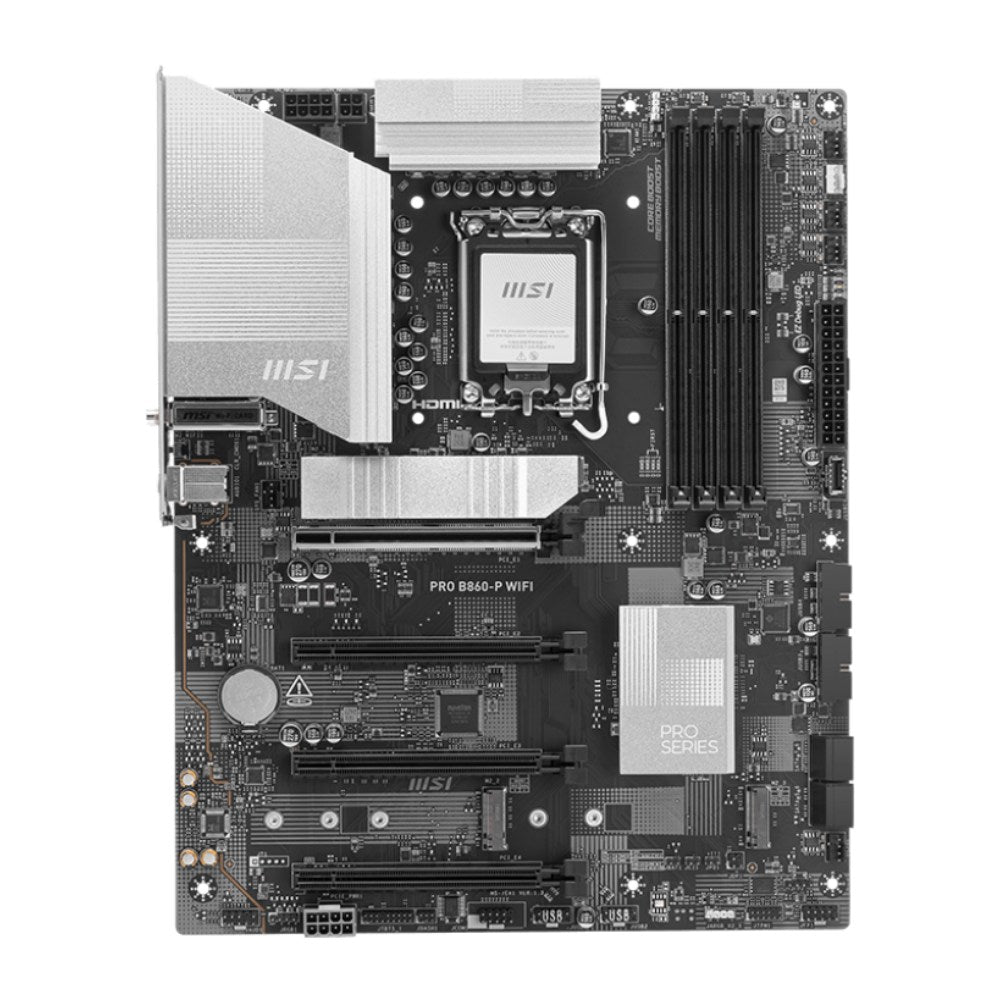

Designed for professionals across all fields, the MSI PRO B860-P WIFI motherboard delivers impressive performance and high quality while remaining approachable enough for everyday users. Built on the Intel B860 chipset with LGA1851 support, it's equipped with a range of demanding features, including Thunderbolt 4, PCIe 5.0 and M.2 support, making it ready to handle both business workloads and modern computing needs. The board is engineered with AI PC compatibility in mind, supporting AI-accelerated applications, intelligent LAN management and automatic PC cooling optimisation. A robust power design and enhanced thermal solution work together to keep performance stable and consistent, even under sustained load.
Features
- Supports Intel Core Ultra Processors (Series 2) on the LGA1851 socket
- 12+1+1+1 DrPS power design for stable, efficient power delivery
- Thunderbolt 4 port supporting DisplayPort 2.1 and up to 8K resolution
- Three M.2 slots with heavy-duty thermal padding for sustained SSD performance
- AI Engine for optimised application performance and power efficiency
- AI LAN Manager for intelligent, low-latency network prioritisation
- Frozr AI Cooling for automatic fan and cooling adjustments
- Supports DDR5 memory with speeds up to 8800+ MT/s (OC)
- Realtek 5Gbps LAN and Intel Wi-Fi 7 for fast, reliable connectivity
- Audio Boost technology paired with a Realtek ALC897 codec for high-quality sound
- EZ DIY features including EZ M.2 Shield Frost and EZ PCIe Card Release for simpler builds
Specifications
- Chipset: Intel B860
- CPU Support: Intel Core Ultra Processors (Series 2), LGA1851
- Memory: 4x DDR5 UDIMM, up to 256GB, speeds up to 8800+ MT/s (OC)
- Onboard Graphics: 1x HDMI 2.1, 1x DisplayPort 1.4, 1x Thunderbolt 4 (Type-C)
- Expansion Slots: 4x PCI-E x16 (PCIe 5.0 and 4.0)
- Audio: Realtek ALC897 Codec, 7.1-Channel High Definition Audio
- Storage: 3x M.2 slots (PCIe 5.0/4.0), 4x SATA 6G
- RAID Support: RAID 0, 1, 5 and 10 for SATA storage devices
- Thunderbolt: 1x Thunderbolt 4 port (rear), up to 40Gbps transfer rate
- USB: 4x USB 2.0 (Rear), 4x USB 2.0 (Front), 2x USB 5Gbps Type A (Rear), 4x USB 5Gbps Type A (Front), 2x USB 10Gbps Type A (Rear), 1x USB 10Gbps Type C (Front)
- LAN: Realtek 5Gbps LAN
- Wireless: Intel Wi-Fi 7, Bluetooth 5.4
- Operating System Support: Windows 11 64-bit
- PCB Form Factor: ATX, 243.84mm x 304.8mm
