Description

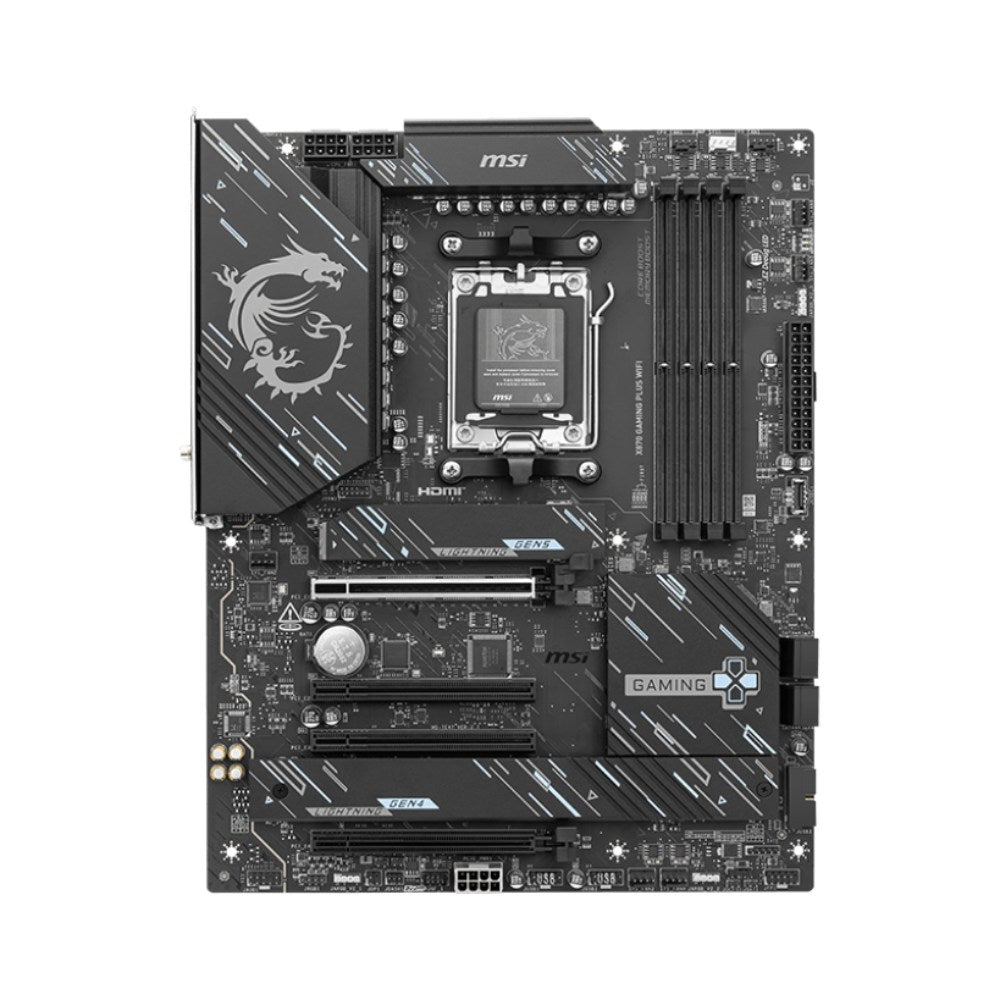

MSI GAMING PLUS series motherboards are built with durable components to deliver a strong gaming experience. Designed for AM5 socket with AMD Ryzen 9000, 8000 and 7000 Series processors, the X870 GAMING PLUS WIFI supports high-speed USB4 connectivity, WiFi 7 wireless and AMD PBO functions, making it easy for gamers and PC DIY builders to fine-tune performance through intuitive tools.
Features
- EZ DIY design for easier build assembly
- Ultra Power design with high-current Smart Power Stage for stable delivery
- Frozr Design extended heatsink coverage for enhanced thermal solutions
- Ultra Connectivity with USB4 40Gbps and 5G LAN support
- EZ OC for simplified CPU overclocking
- Click BIOS X software for intuitive firmware control
- AI Engine that syncs and auto-optimizes applications for a comfortable working environment
- AI LAN Manager that optimizes networking performance and minimizes latency
- Frozr AI Cooling that automatically adjusts fan duty to keep the system cool and stable
- AI Boost, an MSI-exclusive feature that overclocks the NPU for higher performance
- EZ M.2 Shield Frozr II, a tool-free cooling solution protecting M.2 SSDs
- Extended Heatsink enlarging surface area for better heat dissipation
- Trilink high-bandwidth, low-latency networking design
- Audio Boost for high-quality audio output
Specifications
Chipset
Processor Support
- Supports AMD Ryzen 9000, 8000 and 7000 Series desktop processors
- Socket AM5
Memory
- 4 x DDR5 UDIMM, max memory capacity 256GB
- Memory support DDR5 8200-5600 (OC) MT/s / 5600-4800 (JEDEC) MT/s
- Ryzen 9000 Series max overclocking frequency: 1DPC 1R up to 8200+ MT/s, 1DPC 2R up to 6400+ MT/s, 2DPC 1R up to 6400+ MT/s, 2DPC 2R up to 4800+ MT/s
- Supports AMD POR Speed and JEDEC Speed
- Supports Memory Overclocking and AMD EXPO
- Supports Dual-Channel mode
- Supports Non-ECC, Un-buffered memory
- Supports CUDIMM, Clock Driver bypass mode
Onboard Graphics
- 1 x HDMI, supporting HDMI 2.1, max resolution 4K 60Hz
- 1 x Type-C DisplayPort
- USB4 port supporting DisplayPort 1.4 with HBR3 over USB Type-C, max resolution 4K 60Hz
Expansion Slots
- 4 x PCI-E x16 slots
- PCI_E1 Gen PCIe 5.0 supports up to x16 (from CPU)
- PCI_E2 Gen PCIe 3.0 supports up to x1 (from Chipset)
- PCI_E3 Gen PCIe 3.0 supports up to x1 (from Chipset)
- PCI_E4 Gen PCIe 4.0 supports up to x4 (from Chipset)
- PCI_E1: supports PCIe 5.0 x16 (Ryzen 9000/7000), PCIe 4.0 x8 (Ryzen 8700/8600/8400), PCIe 4.0 x4 (Ryzen 8500/8300)
- PCI_E4 runs at x2 speed when M.2 SSD is installed in M2_3 slot
Audio
- Realtek ALC897
- 7.1-Channel High Definition Audio
Storage
- 3 x M.2 slots
- M.2_1 (from CPU): up to PCIe 5.0 x4, supports 2280/2260 devices
- M.2_2 (from Chipset): up to PCIe 4.0 x4, supports 22110/2280 devices
- M.2_3 (from Chipset): up to PCIe 4.0 x2, supports 2280/2260 devices
- 4 x SATA 6G
- M.2_1 slot supports up to PCIe 5.0 x4 (Ryzen 9000/7000) or PCIe 4.0 x4 (Ryzen 8000)
RAID
- Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
- SATA_A1~A4 do not support RAID function
- RAID 5 configuration only supported on Ryzen 9000 Series processors
USB
- 4 x USB 2.0 (rear)
- 4 x USB 2.0 (front)
- 2 x USB 5Gbps Type-A (rear)
- 2 x USB 5Gbps Type-A (front)
- 2 x USB 10Gbps Type-A (rear)
- 1 x USB 10Gbps Type-C (front)
- 1 x USB 20Gbps Type-C (rear)
- 1 x USB 40Gbps Type-C (rear)
LAN
Internal I/O
- 1 x Power Connector (ATX_PWR)
- 2 x Power Connector (CPU_PWR)
- 1 x Power Connector (PCIE_PWR 8pin)
- 1 x CPU Fan
- 1 x Combo Fan (Pump_Sys Fan)
- 6 x System Fan
- 1 x EZ Conn-header (JAF_1)
- 2 x Front Panel (JFP)
- 1 x Chassis Intrusion (JCI)
- 1 x Front Audio (JAUD)
- 1 x Tuning Controller connector (JDASH)
- 3 x Addressable V2 RGB LED connector (JARGB_V2)
- 1 x RGB LED connector (JRGB)
- 1 x TPM pin header (support TPM 2.0)
- 4 x USB 2.0 ports
- 2 x USB 5Gbps Type A ports
- 1 x USB 10Gbps Type C ports
Wireless LAN and Bluetooth
- WiFi 7, wireless module pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz (320MHz) up to 5.8Gbps
- Supports 802.11 a/b/g/n/ac/ax/be
- Supports Bluetooth 5.4, MLO, 4KQAM
LED Feature
Back Panel Ports
- Clear CMOS Button
- USB 5Gbps Type-A
- USB 10Gbps Type-A
- USB 2.0
- 5G LAN
- WiFi/Bluetooth
- Audio connectors
- Flash BIOS Button
- HDMI
- USB 40Gbps Type-C
- USB 2.0
- USB 20Gbps Type-C
- USB 5Gbps Type-A
Operating System
- Support for Windows 11 64-bit
PCB Info
- ATX form factor
- 243.84mm x 304.8mm
