Description

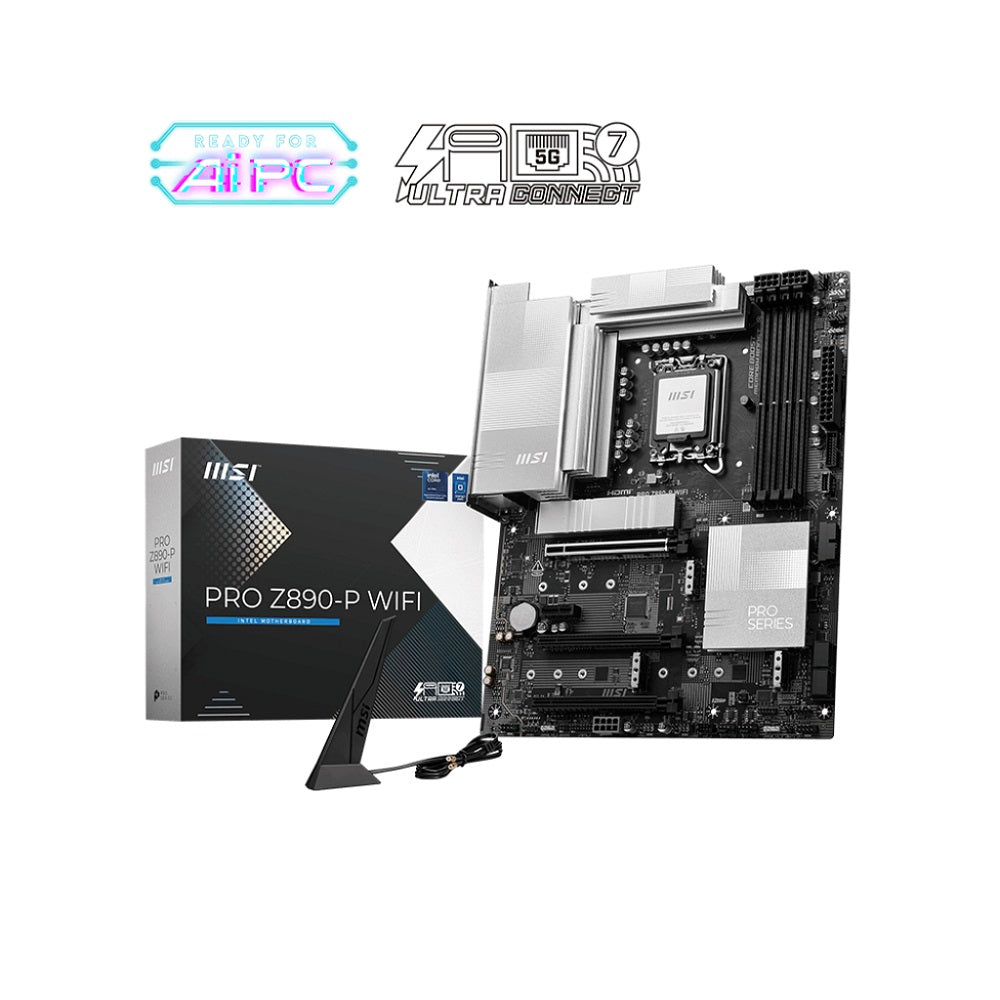

Combining a harmonious silver colour scheme with black PCB, the MSI PRO Z890-P WIFI motherboard is engineered with premium features to suit both style and performance. It supports Intel Core Ultra processors through the LGA1851 socket and pairs Wi-Fi 7 with 5G LAN, Thunderbolt 4 and supplemental PCIe power for dependable, fast connectivity. The board is designed with AI PC readiness in mind, offering intelligent LAN optimisation, automatic cooling adjustments and AI-driven performance boosts. A strong 14+1+1+1 DrPS power design with 55A DrMOS ensures stable performance under demanding processor loads, while the Frozr thermal design and heavy-plated VRM heatsink keep temperatures well managed.
Features
- Supports Intel Core Ultra Processors (Series 2) on the LGA1851 socket
- 14+1+1+1 DrPS power design with 55A DrMOS for stable, high-load performance
- Thunderbolt 4 port supporting DisplayPort 2.1 and up to 8K resolution
- EZ M.2 Shield Frozr II for tool-free, one-hand SSD installation and cooling
- AI Engine for optimised application performance and power efficiency
- AI LAN Manager for intelligent, low-latency network prioritisation
- Frozr AI Cooling for automatic fan and cooling adjustments
- AI Boost technology to help overclock the NPU for higher AI performance
- Supports DDR5 memory with speeds up to 9200+ MT/s (OC)
- Realtek 5Gbps LAN and Intel Wi-Fi 7 for fast, reliable connectivity
- Audio Boost with high-quality audio capacitors and isolated audio signal for clear sound
Specifications
- Chipset: Intel Z890
- CPU Support: Intel Core Ultra Processors (Series 2), LGA1851
- Memory: 4x DDR5 UDIMM, up to 256GB, speeds up to 9200+ MT/s (OC)
- Onboard Graphics: 1x HDMI 2.1, 1x DisplayPort 1.4, 1x Type-C DisplayPort, 1x Thunderbolt 4 (Type-C)
- Expansion Slots: 4x PCI-E x16 (PCIe 5.0 and 4.0)
- Audio: Realtek ALC897 Codec, 7.1-Channel High Definition Audio
- Storage: 4x M.2 slots (PCIe 5.0/4.0), 4x SATA 6G
- RAID Support: RAID 0, 1, 5 and 10 for SATA and M.2 NVMe storage devices
- Thunderbolt: 1x Thunderbolt 4 port (rear), up to 40Gbps transfer rate
- USB: 4x USB 2.0 (Rear), 4x USB 2.0 (Front), 2x USB 5Gbps Type A (Rear), 4x USB 5Gbps Type A (Front), 1x USB 10Gbps Type A (Rear), 1x USB 10Gbps Type C (Rear), 1x USB 20Gbps Type C (Front)
- LAN: Realtek 8126 5Gbps LAN
- Wireless: Intel Wi-Fi 7, Bluetooth 5.4
- Operating System Support: Windows 11 64-bit
- PCB Form Factor: ATX, 243.84mm x 304.8mm
