Description

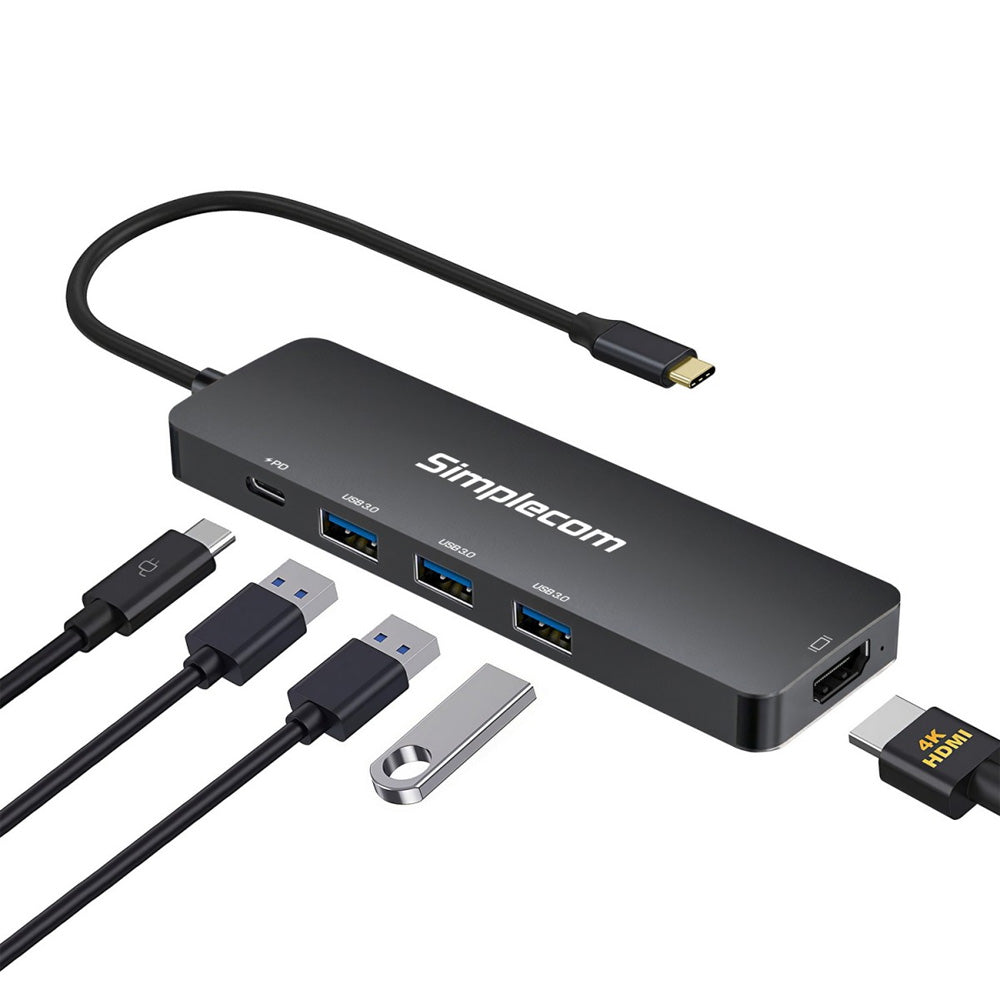

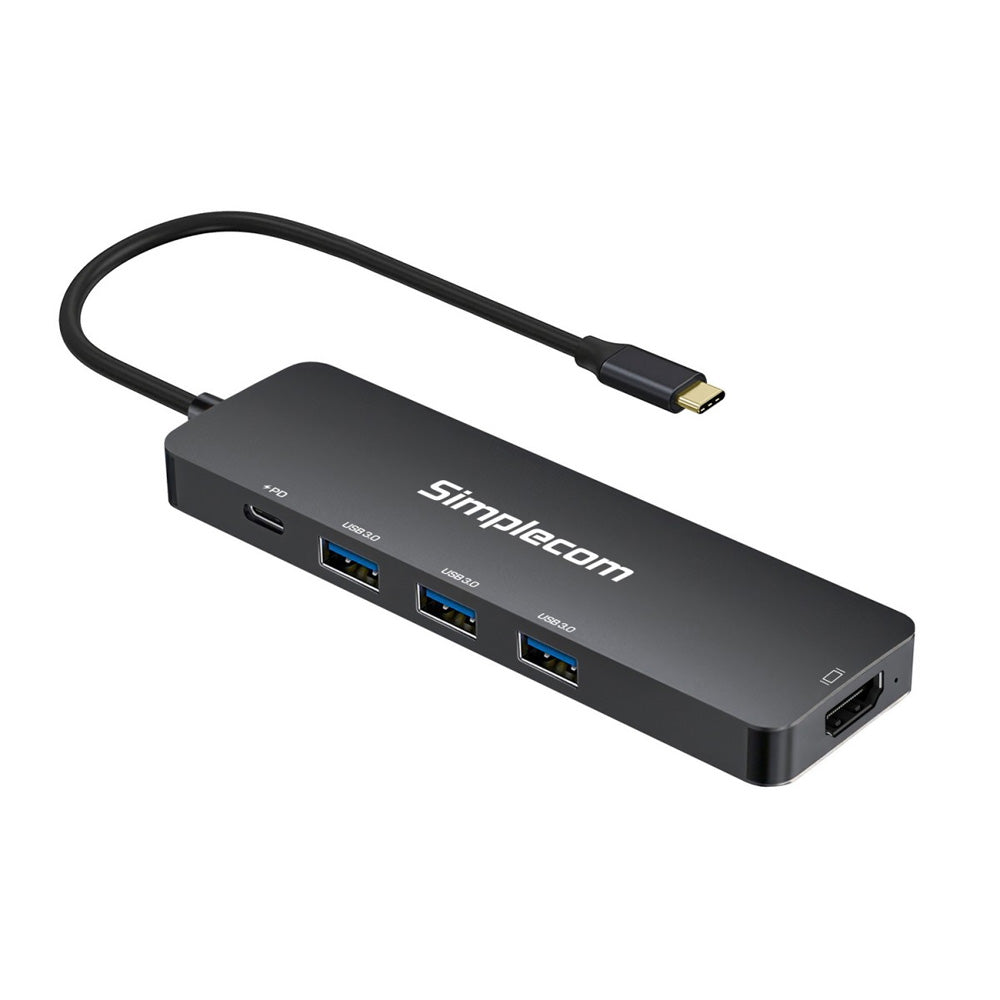

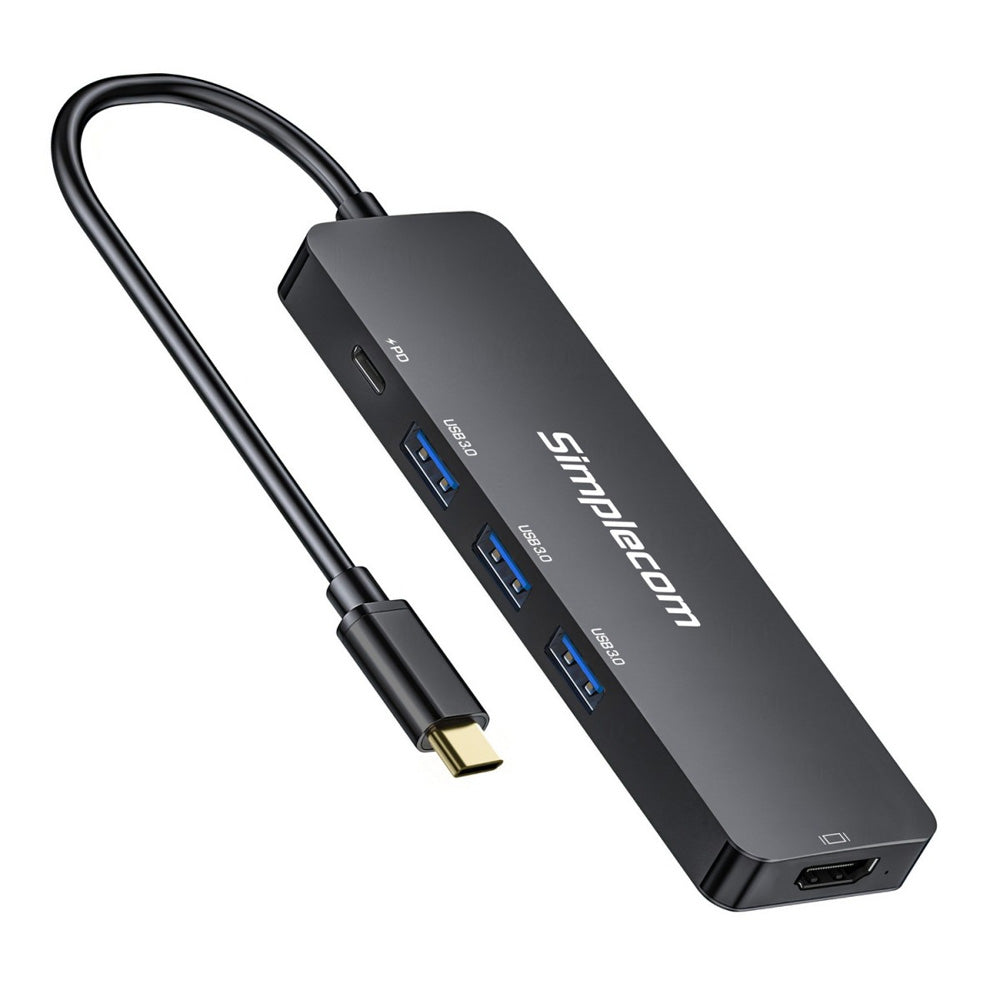

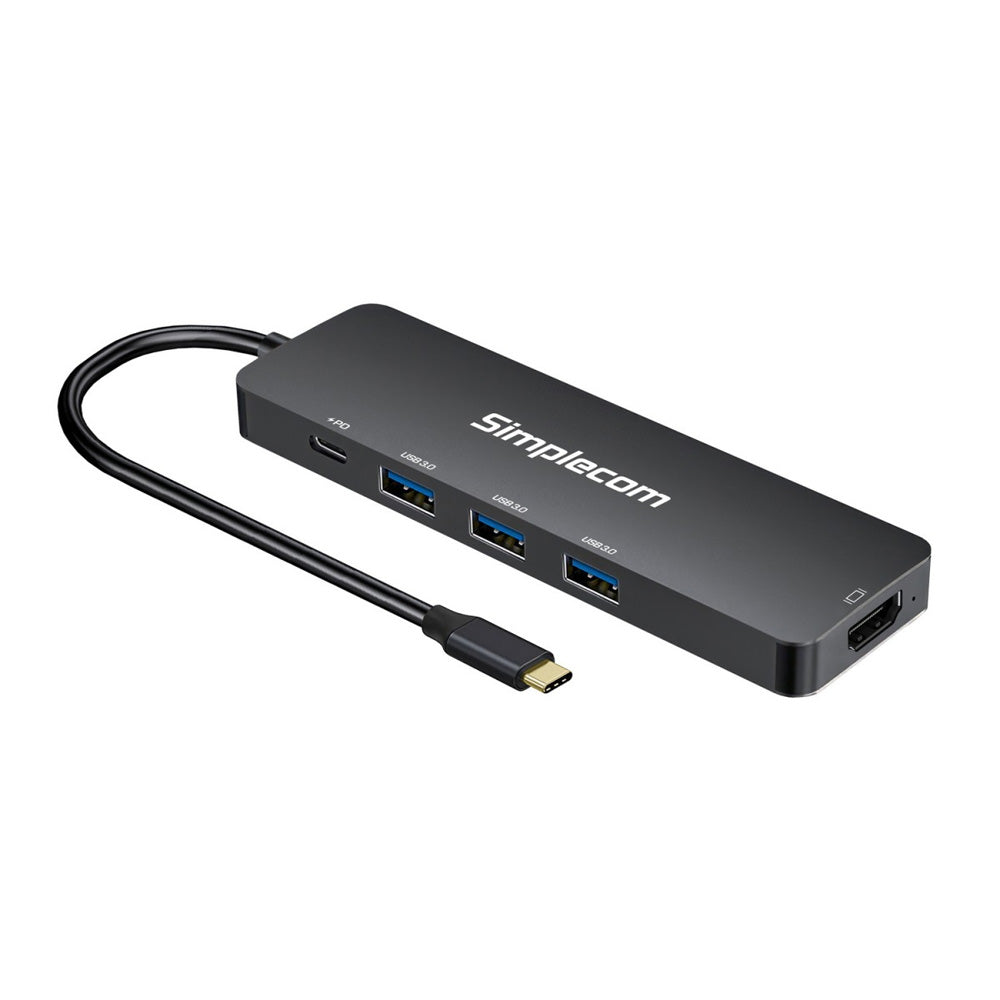

The Simplecom CH545 is a USB-C multiport docking station designed to extend the connectivity of modern laptops with a multifunctional USB-C interface. It turns a single USB-C port into 5 ports, including three SuperSpeed USB 3.0 ports, an HDMI display output and one USB-C PD charging port. The HDMI port transmits video at resolutions up to 4K@30Hz, while the 3-port USB 3.0 hub provides data transfer rates of up to 5Gbps. The USB-C PD port can charge your connected laptop while the other ports are working, supporting up to 100W charging via Power Delivery. Its ultra-compact aluminium casing supports stable performance and protects the circuit, and the metal shell helps dissipate heat when the chip and hub are working. It is an ideal connectivity solution that helps increase productivity and convenience.
Features
- 5-Port Expansion: expands your laptop with a single USB-C to three USB 3.0 ports, HDMI and USB-C PD
- HDMI Output: supports up to 4K@30Hz resolution in Mirror or Extended mode
- SuperSpeed USB 3.0 Ports: 3x ports supporting data transfer rates of up to 5Gbps
- USB-C PD Port: charges the laptop with up to 100W of power
- Durable and Stylish Housing: aluminium alloy construction
- Lightweight Design: easy to carry along when travelling
- Built-in Flexible USB-C Cable
- Plug and Play: no driver software required
Specifications
- USB Hub: 3x USB 3.0 ports (SuperSpeed 5Gbps)
- HDMI Output: Up to 3840x2160 at 30Hz (4K@30Hz)
- PD Charging: USB-C Female (for charging only), up to 100W
- Operation Temperature: 0 to 50°C
- Housing Material: Aluminium
- Dimensions: 125 x 37 x 11mm
- Cable Length: 13cm
- Weight: 62g
- System Requirements: Available USB-C port on PC, Mac, Phone or Tablet with DisplayPort Alternate Mode support
- Operating System: Windows 7 or above, macOS 10.7 or above, ChromeOS, Android
Package Contents
1 x Docking Station
